Water technologies of the Serino Aqueduct – Pompei and Herculaneum, Italy

The Serino aqueduct was constructed (33 to 12 B.C.) during the Augustus period of the Roman Empire and extended approximately 100 km from its origin (the Acquaro-Pelosi spring in the village of Serino)  to Miseno.  The aqueduct supplied water to Pompei, Herculaneum, and the Piscina Mirabilis.  The principle purpose of the aqueduct was to refurbish the Roman fleet of Misenum (Miseno).  The secondary  reason was to supply water for the increasing demand of the important harbor of Puteoli (Pozzuoli), as well as drinking water for a number of cities.

On August 24-25, 79 A.D. Mount Vesuvius erupted destroying Pompeii, Herculaneum, and other towns.  Prior to that the mountain had been green with olive groves and vineyards.

Pompeii

Pompeii (located near the Bay of Naples, south-southeast of Mt. Vesius) had a water supply that was representative of Roman  urban water distribution systems.  Sources of water included wells, cisterns, other reservoirs, and the Serino aqueduct.  This aqueduct received water from the springs at Serino near Avellino, and then was routed to Pompeii terminating at the castellum at Porta Vesuvii shown below.

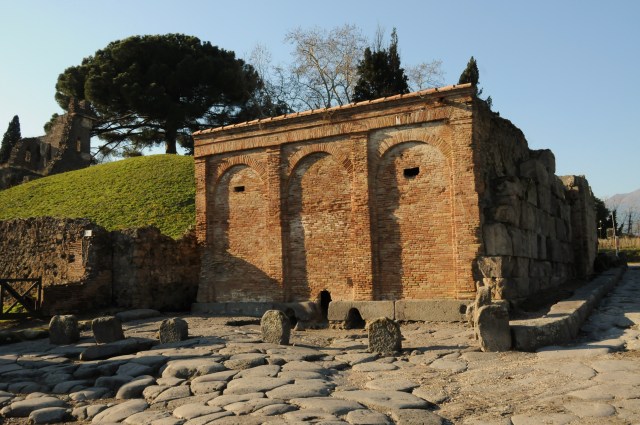

Pompei, Italy Castellum

Pompei, Italy Castellum

Castellum divorsium at Porta Vesuvii used to divert flow to various geographical areas of Pompeii.  Note the three opennings in front of the building from which lead pipes were used to deliver water to Pompeii.

Day 4 127

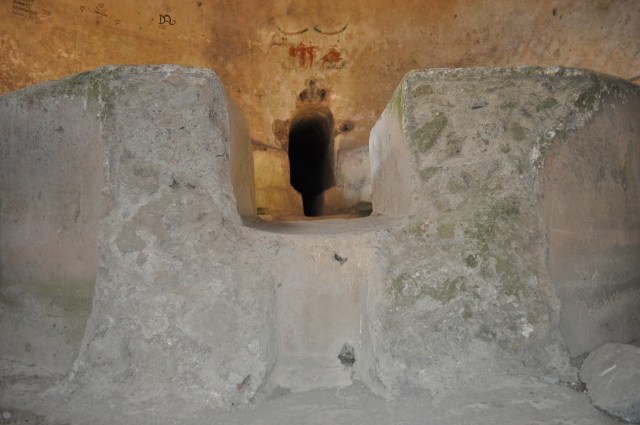

Shows the exit from the aqueduct into the castellum divorsium.  Note the three channels (one in the center and one on each side) that were used to divert flow to geographical areas of Pompeii.   These channels were gated to adjust the amount of flow.

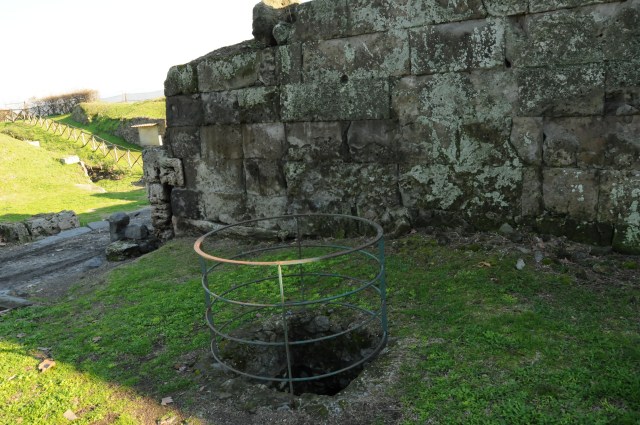

Day 4 235

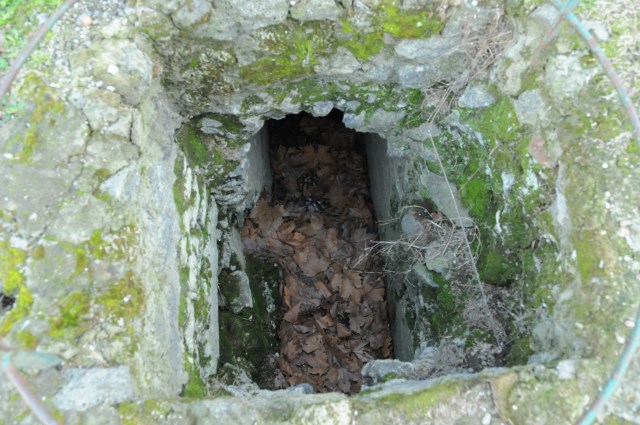

Openning into aqueduct branch behind castellum

Day 4 242

Aqueduct branch leading into castellum

Day3_169 revised

On left side of street is a secondary castellum with adjacent fountain.  Lead tank was located on top of the column which was supplied with water from the lead pipes that were located in the indented area of the colmun.

Day 4 285

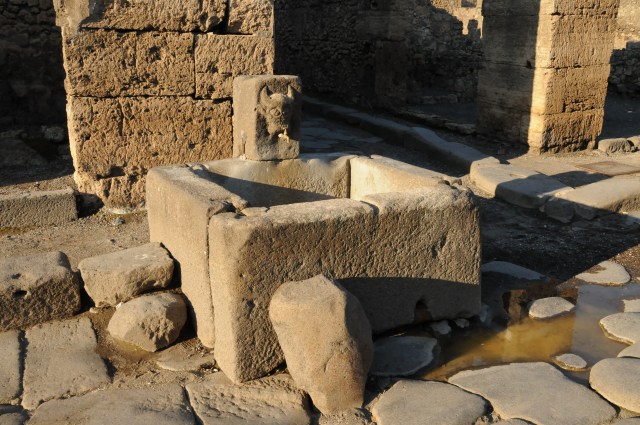

Fountain

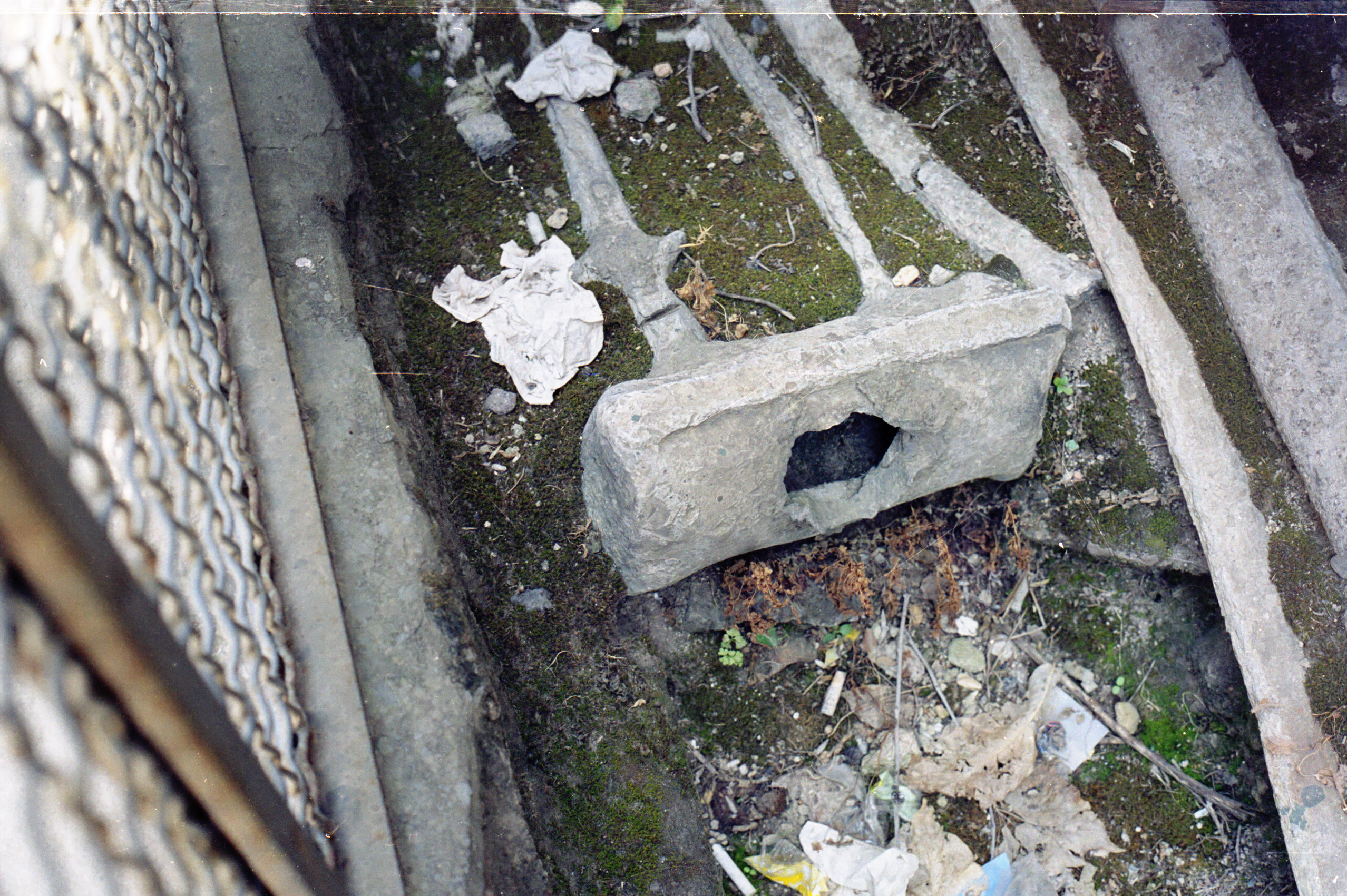

Pompeii pipe4001

Lead pipes and manifold

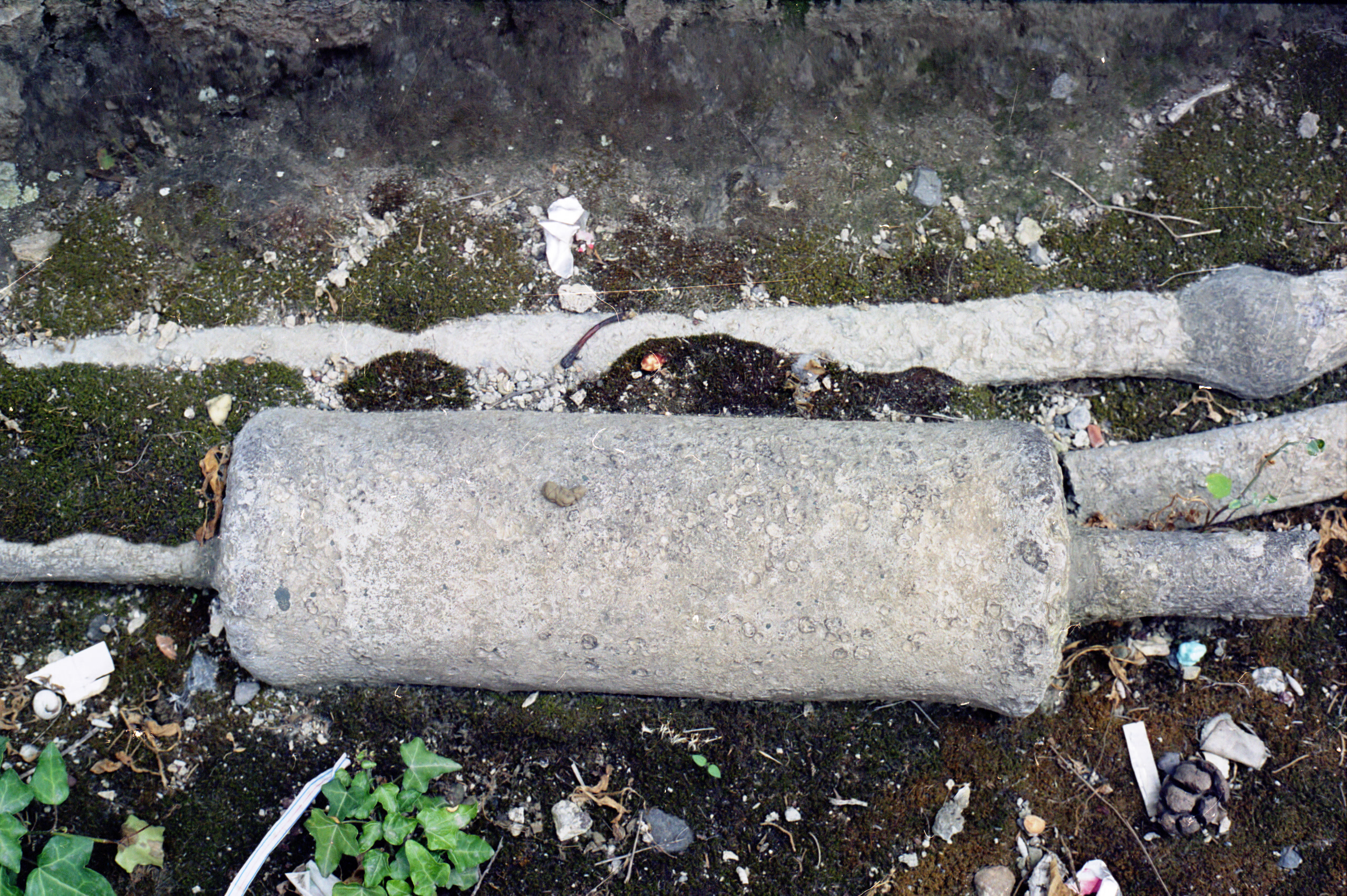

Lead junction box

Day 4 176

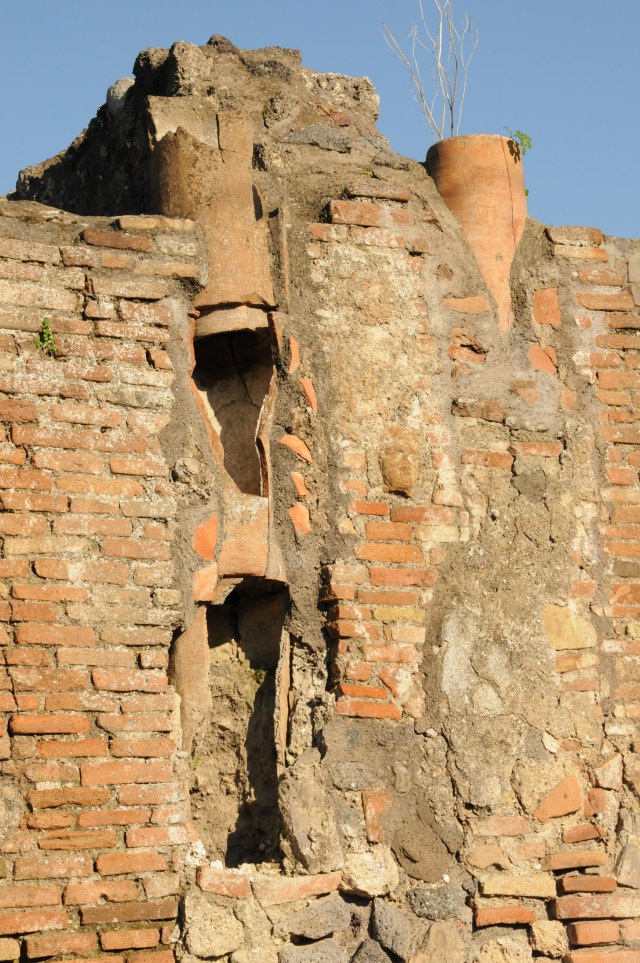

Terracotta pipe for rainwater harvesting from roofs.  Pipes drained water into cisterns in individual buildings.

Herculaneum

Day 4 455

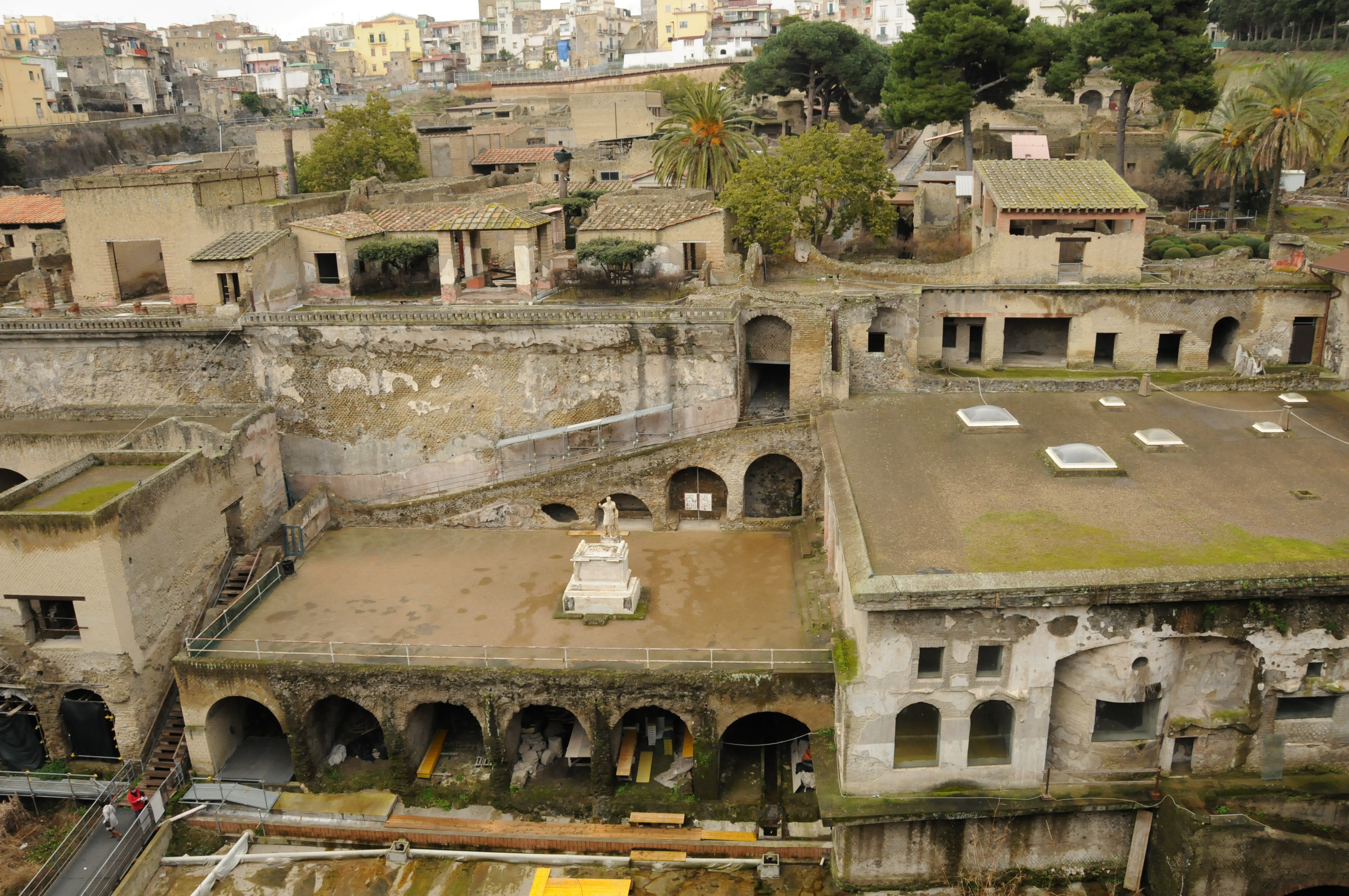

View near modern day entrance

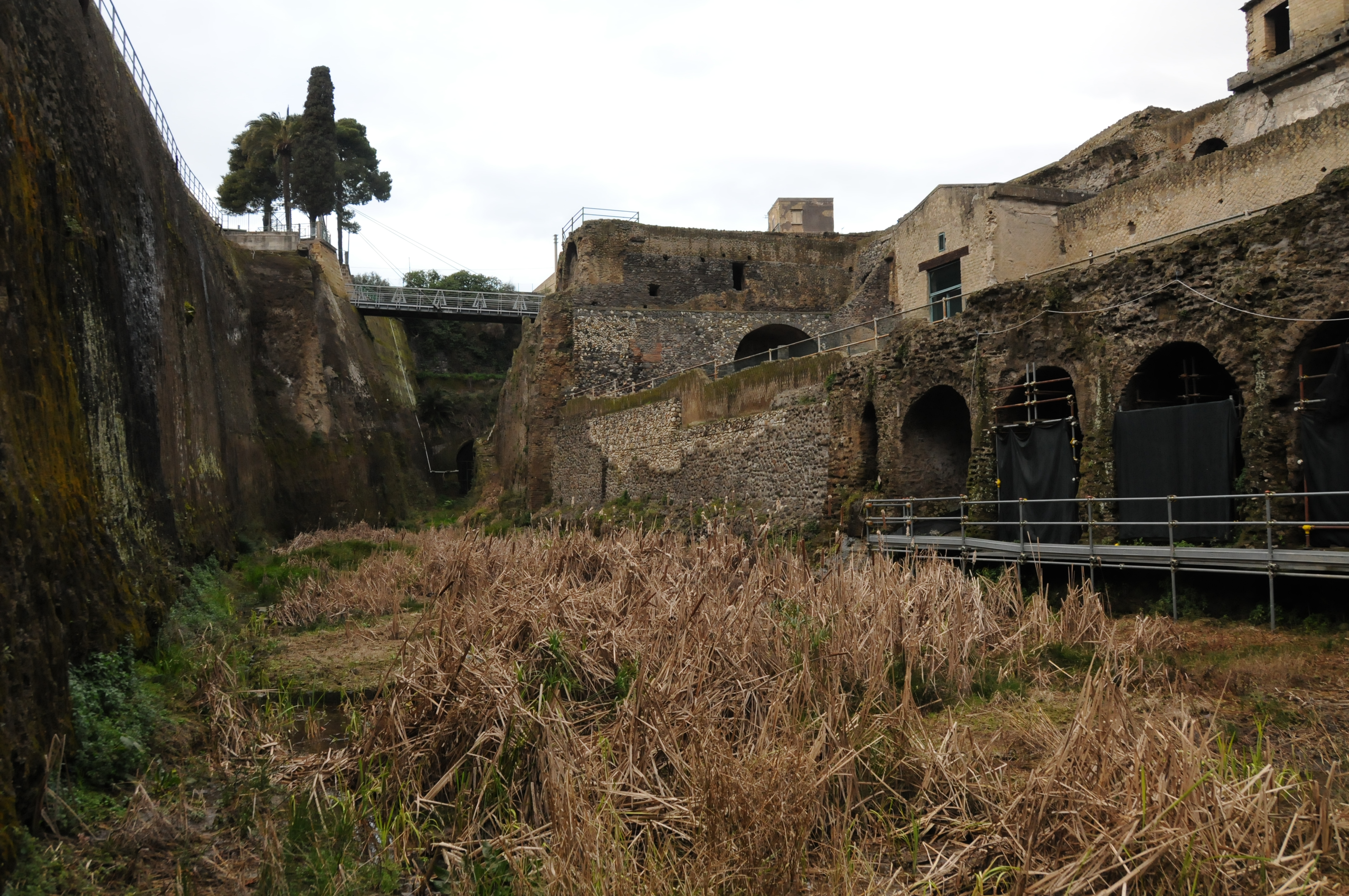

Day 4 916



Day 4 661

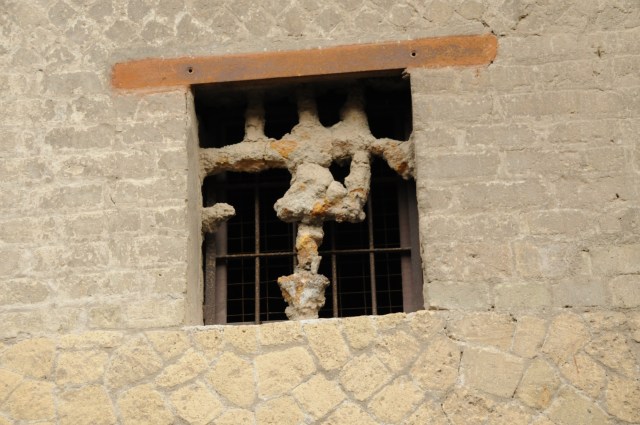

Window with volcanic ash

Day 4 613

Lead pipes along sidewalk

Day 4 619

Lead pipe joint

Day 4 767

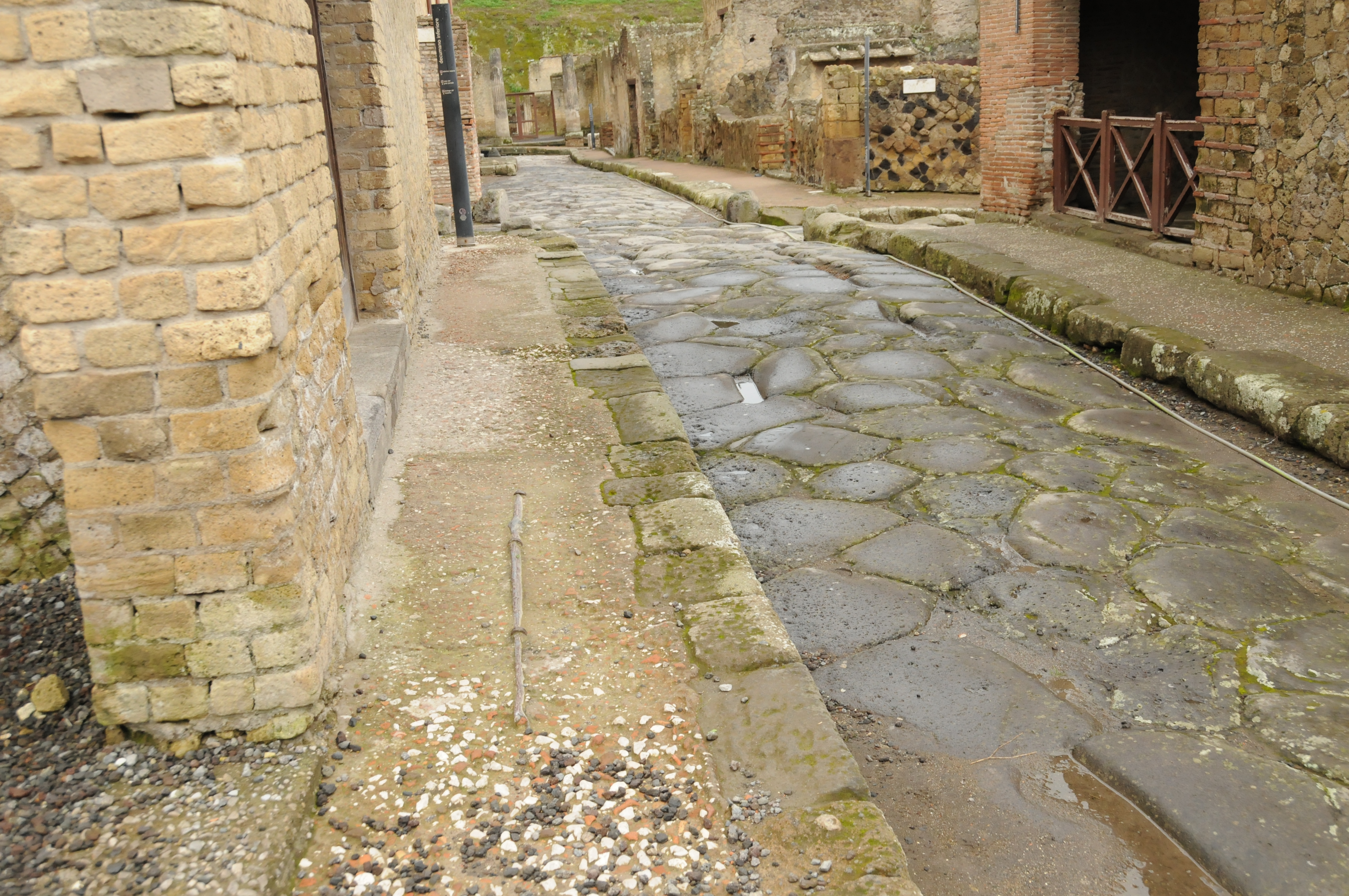

Lead pipe on sidewalk along street

Day 4 504

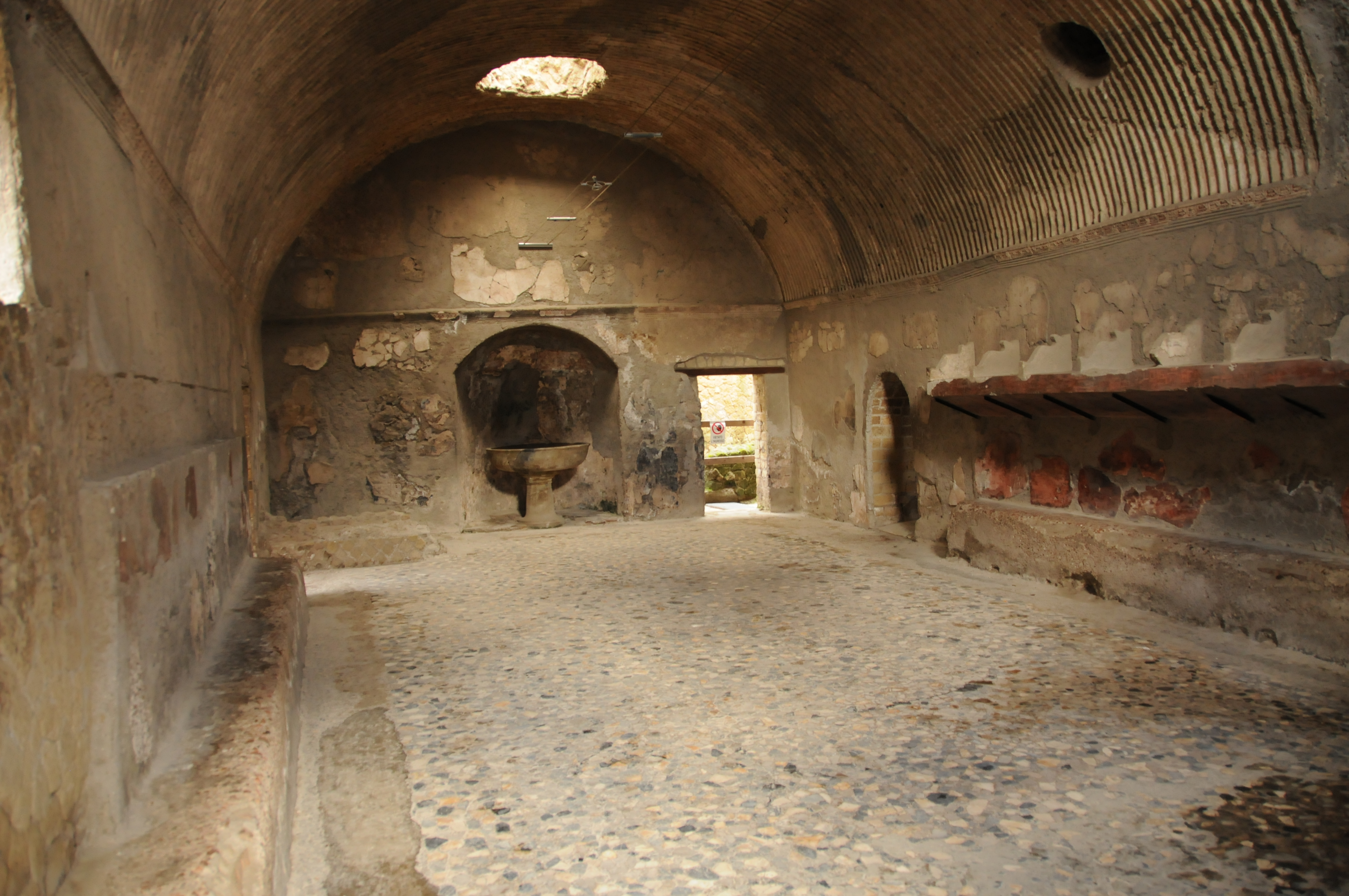

View of men’s waiting room at the Forum baths.  Basin at in the back on the left side is for washing feet and the round marble basin is for washing hands.

Day 4 511

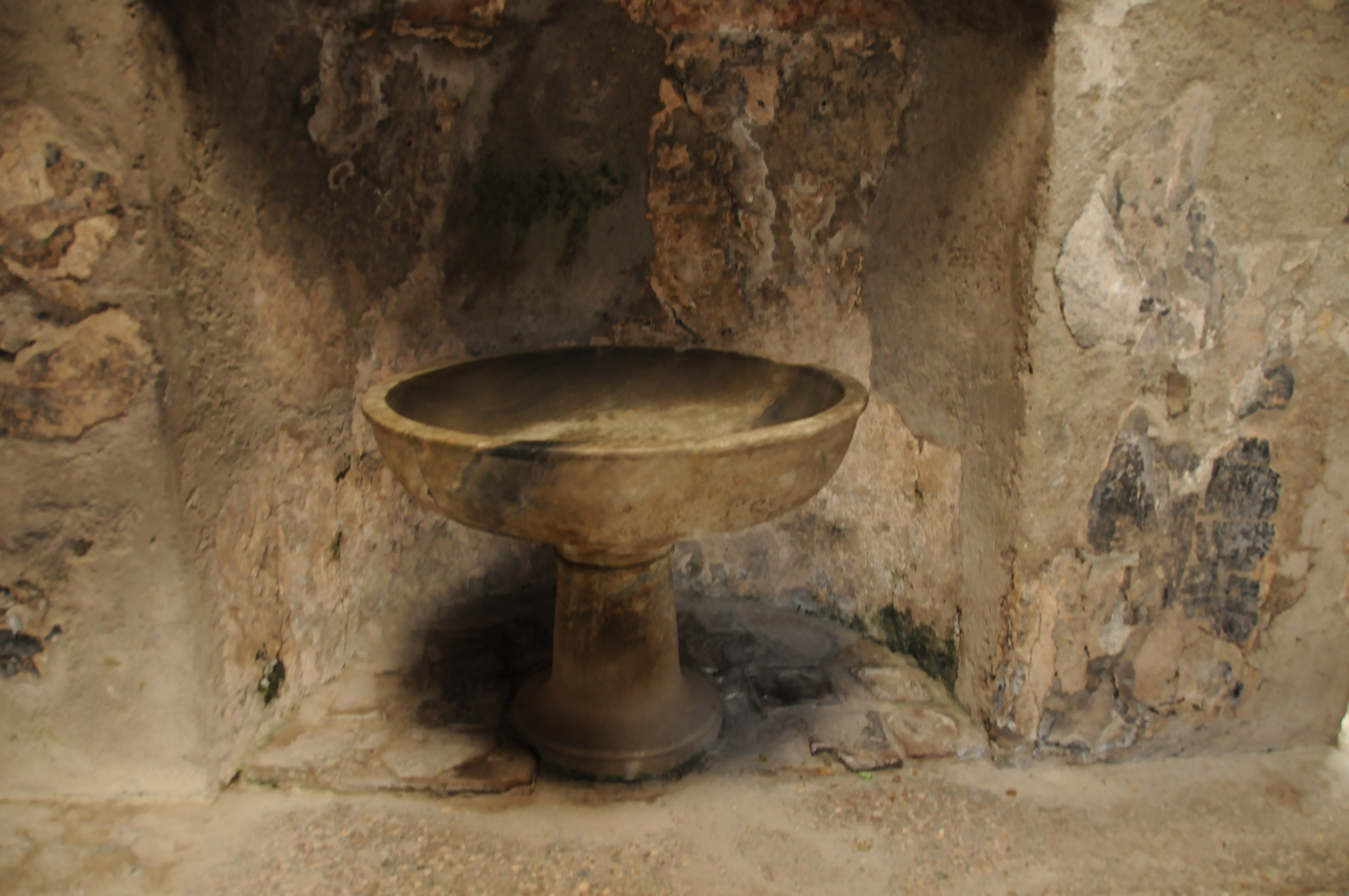

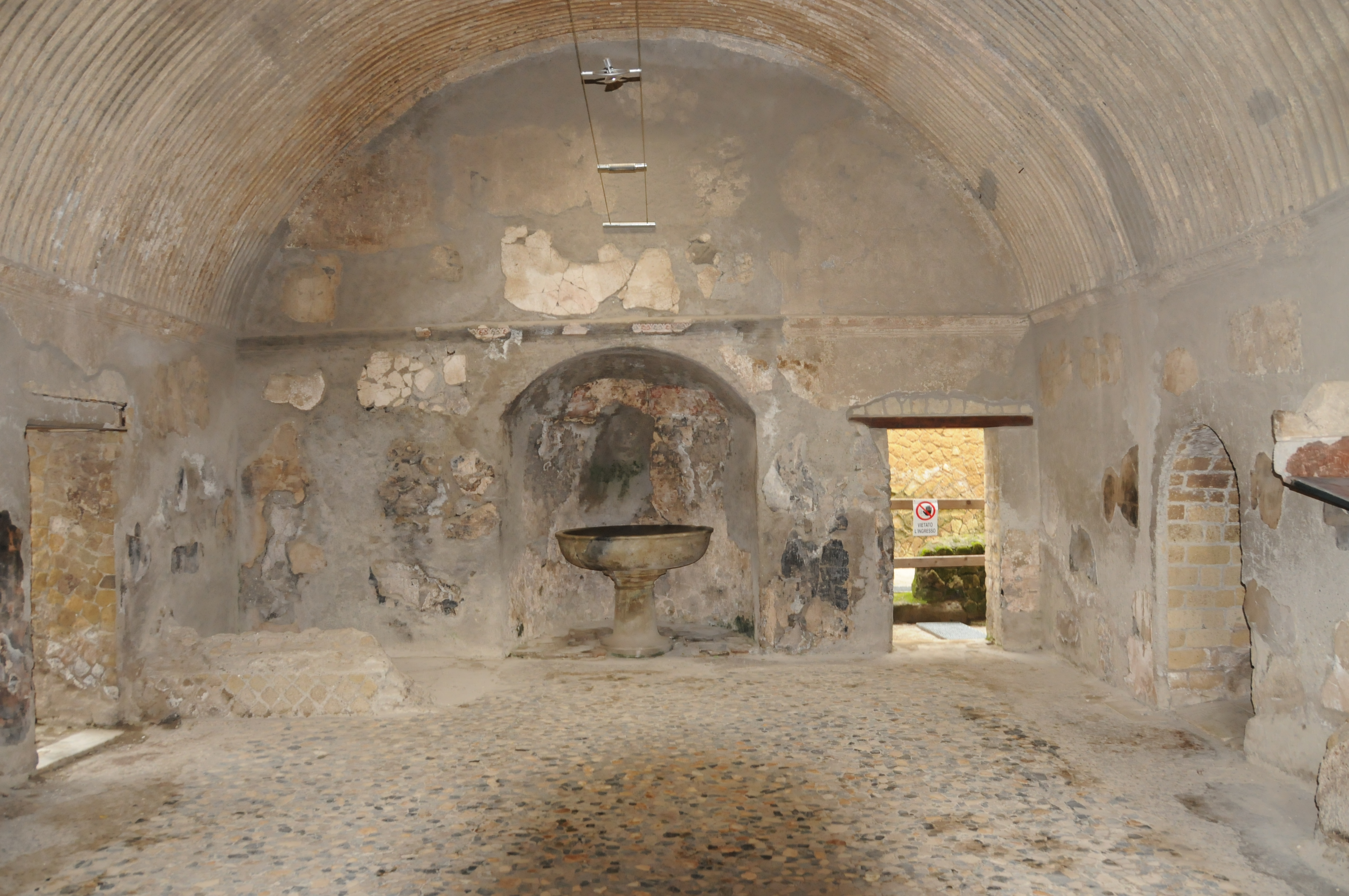

Marble basin for washing hands

Day 4 507

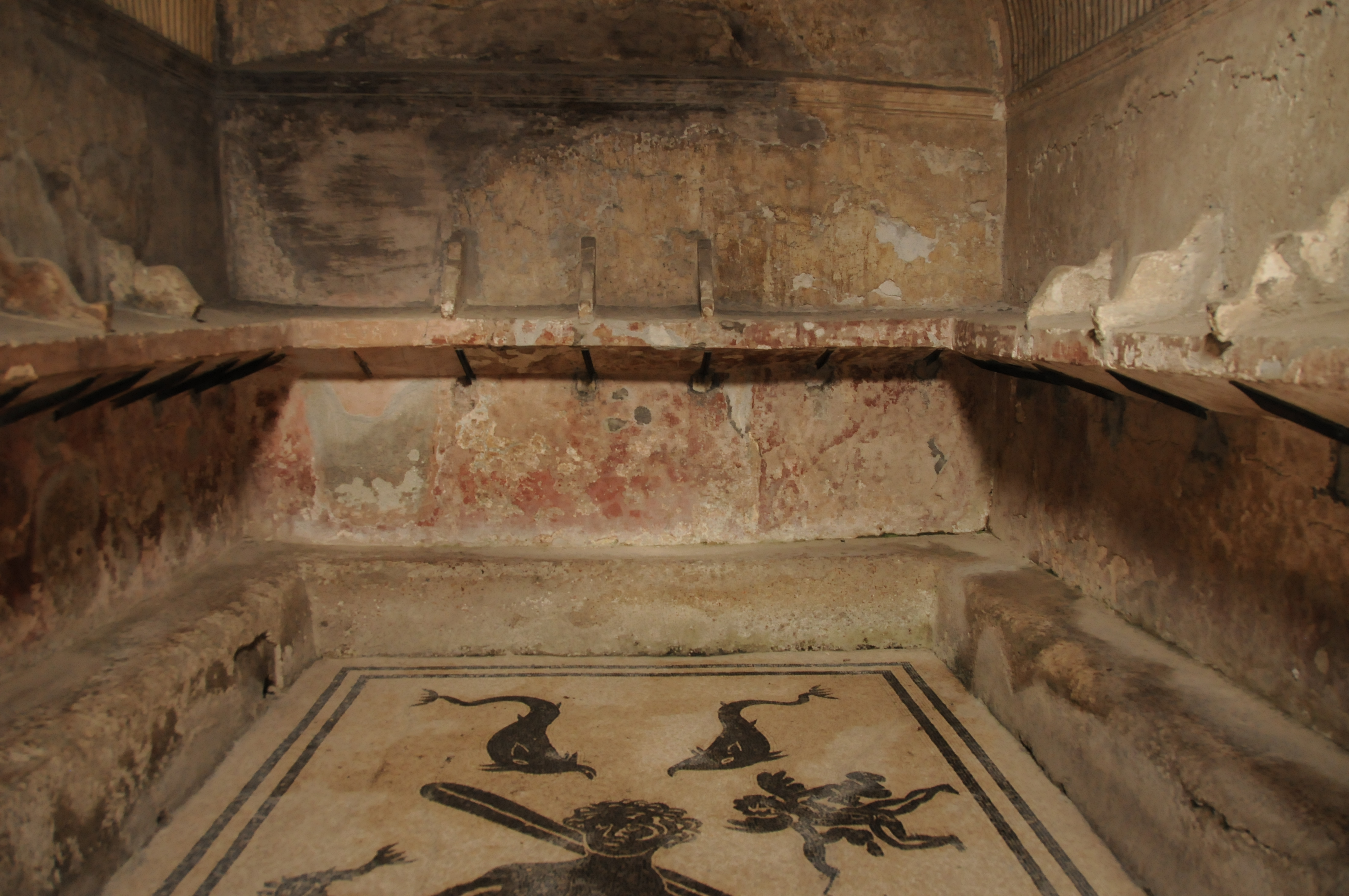

Day 4 696



Day 4 705

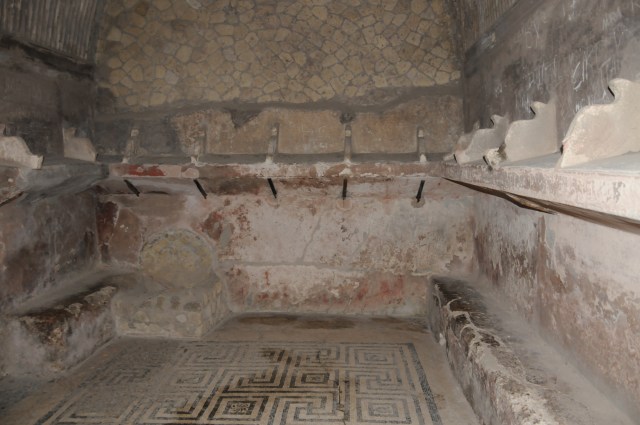

Day 4 704



Day 4 716



Day 4 696

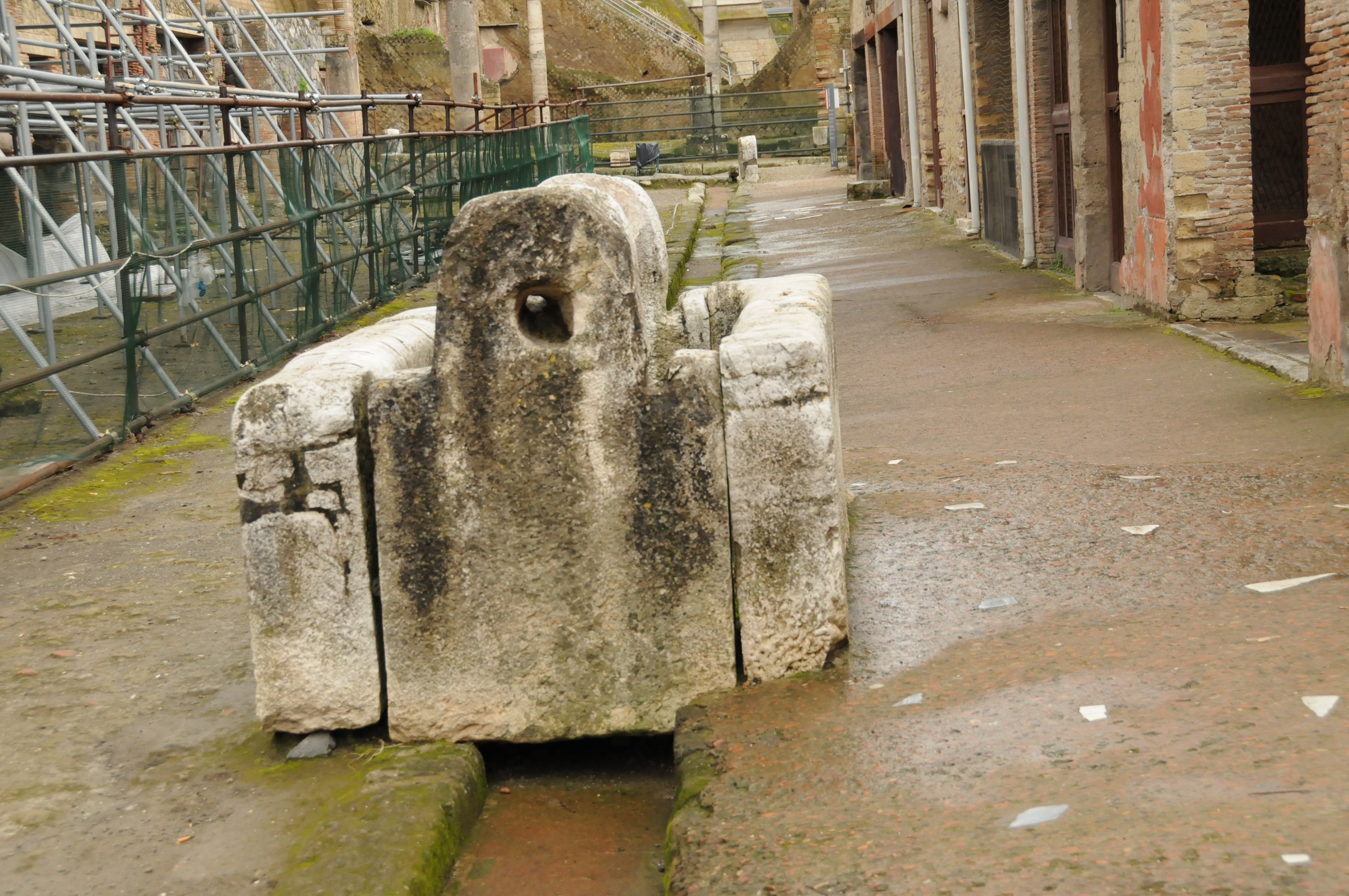

Day 4 606



Day 4 627



Day 4 746



Day 4 748



Day 4 785

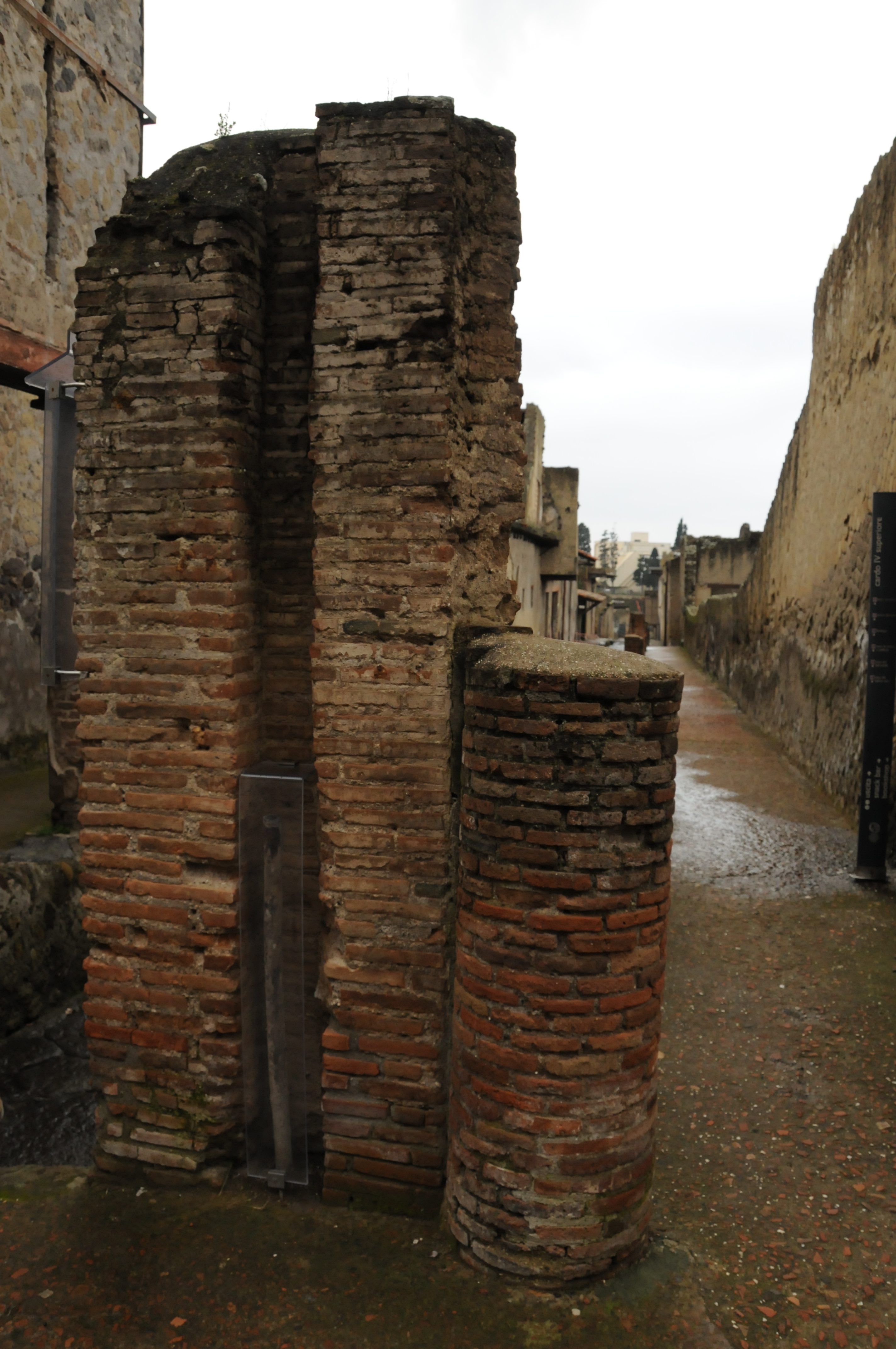

Day 4 631



Day 4 803

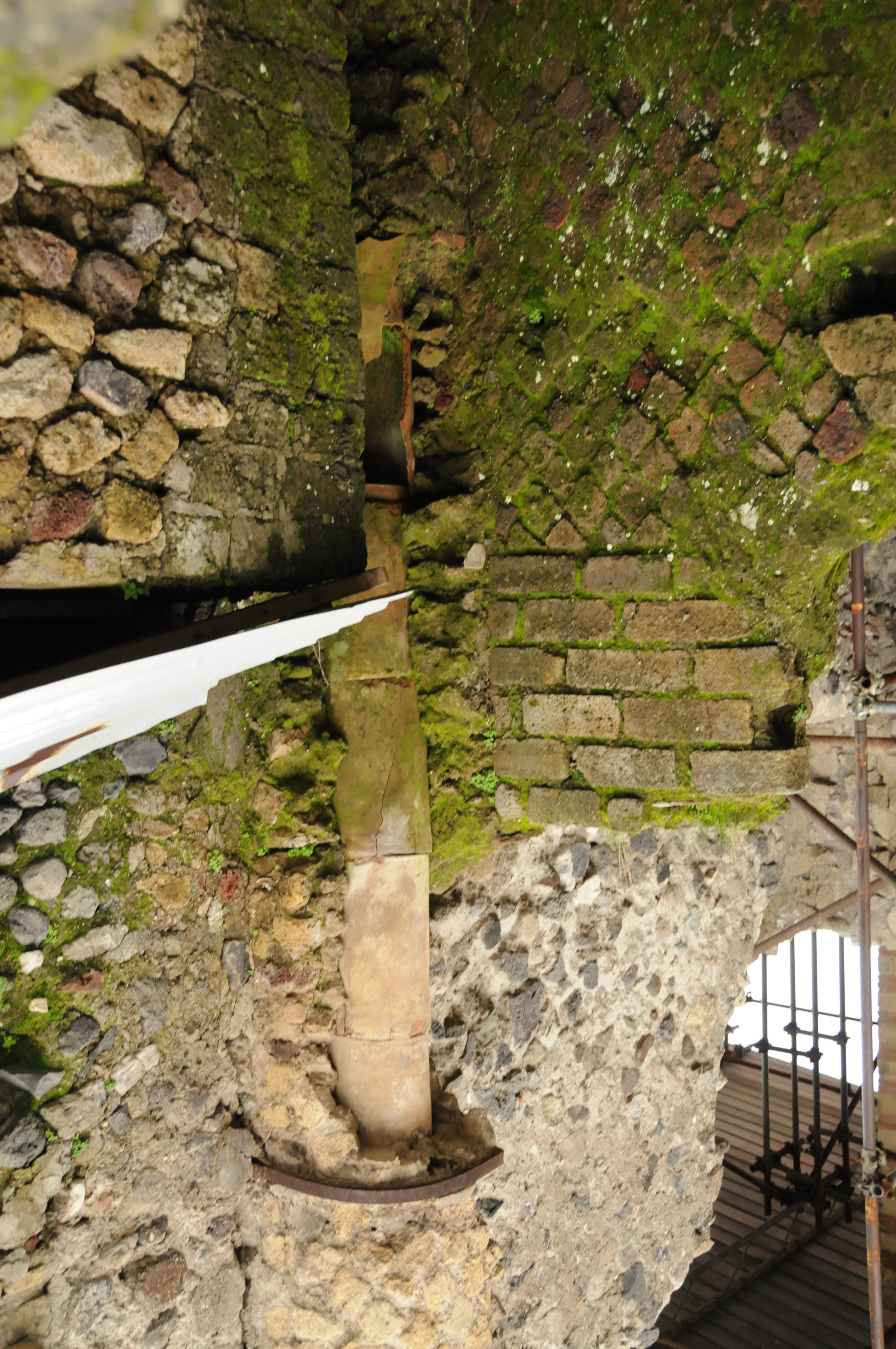

Day 4 789

Piscina Mirabilis

Day 3 026
