Roman Water Technologies in Spain

Chuelva, Spain

Day 8 and 9 013

100_0117

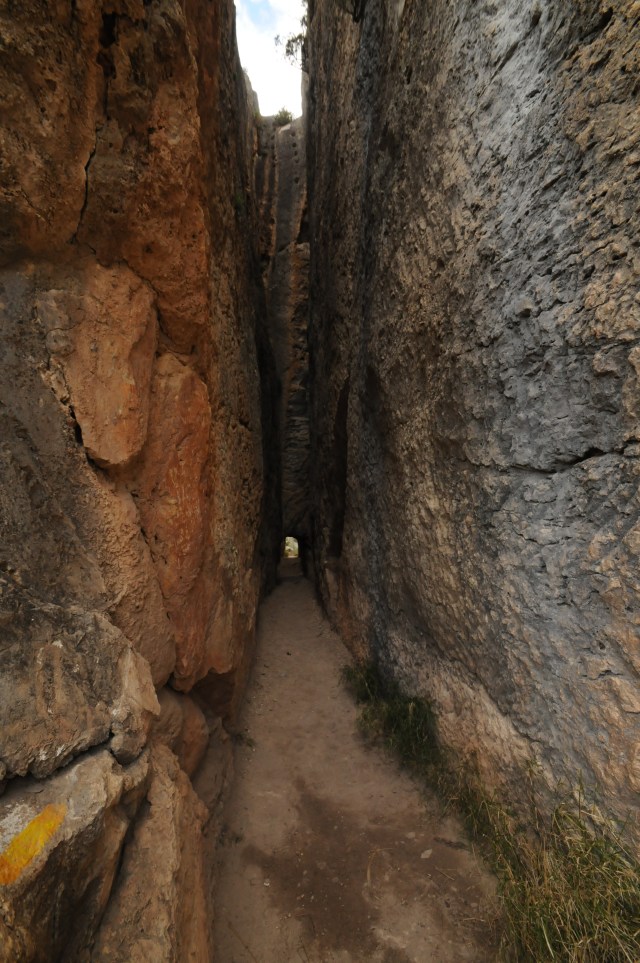

DSC_9493

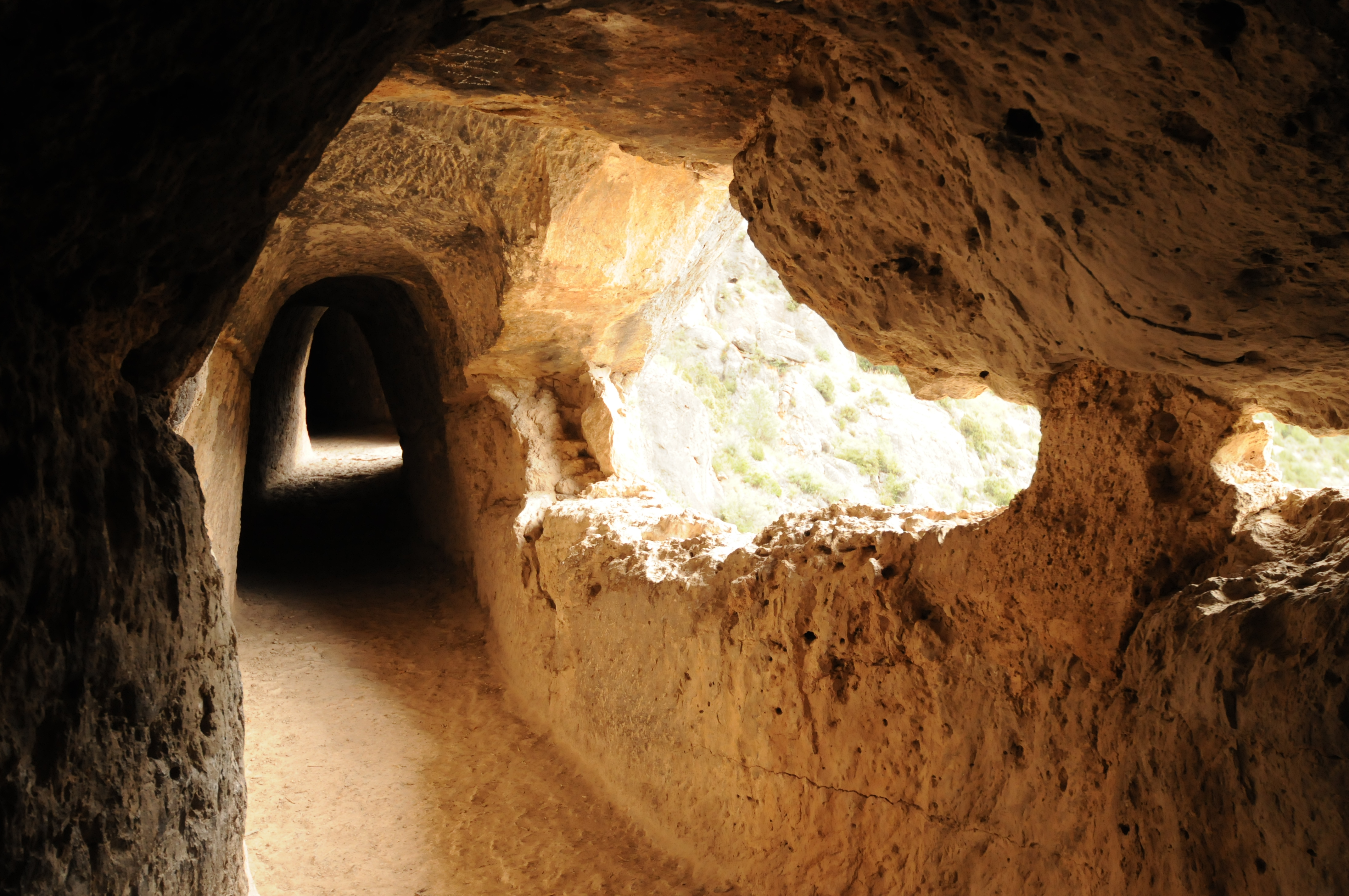

Day 8 and 9 050

2006-06-09_0009

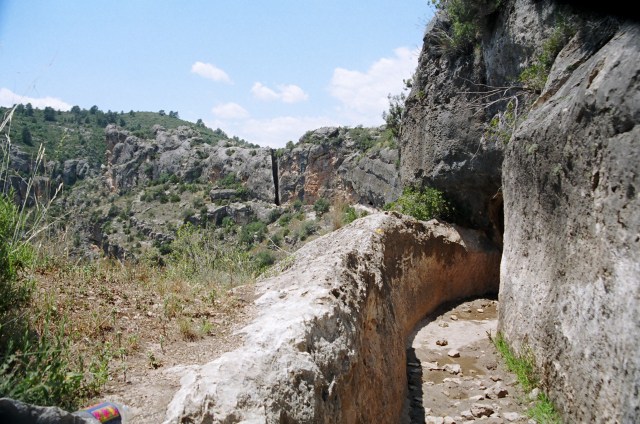

2006-06-09_0011

2006-06-09_0007

2006-06-09_0044

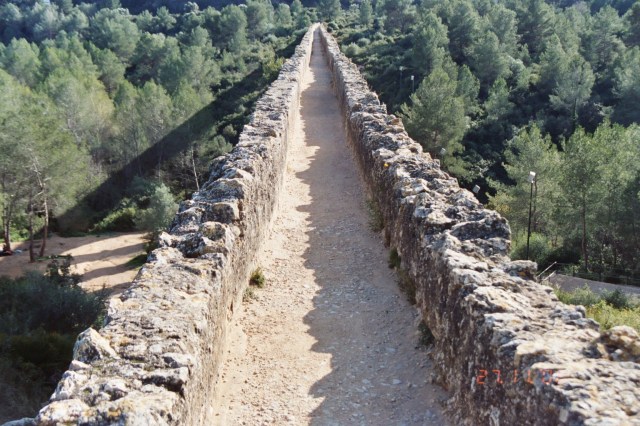

Tarragona, Spain

034_31A

AqueductTarragona

Tarragona, Spain (Photo copyright by Susi K. Mays)

Tarragona1

039_36A

Ancient Emerita Augustus – Merida, Spain

In 25 B.C. Emerita Augusta (present day Merida, Spain) became a colony and a century later the Romans had built an extensive water supply system.  Three aqueducts ( Proserpina, Cornalvo, and Las Tomas) supplied water to Emerita Augusta supplied by two dams and a spring, respectively.

Roman

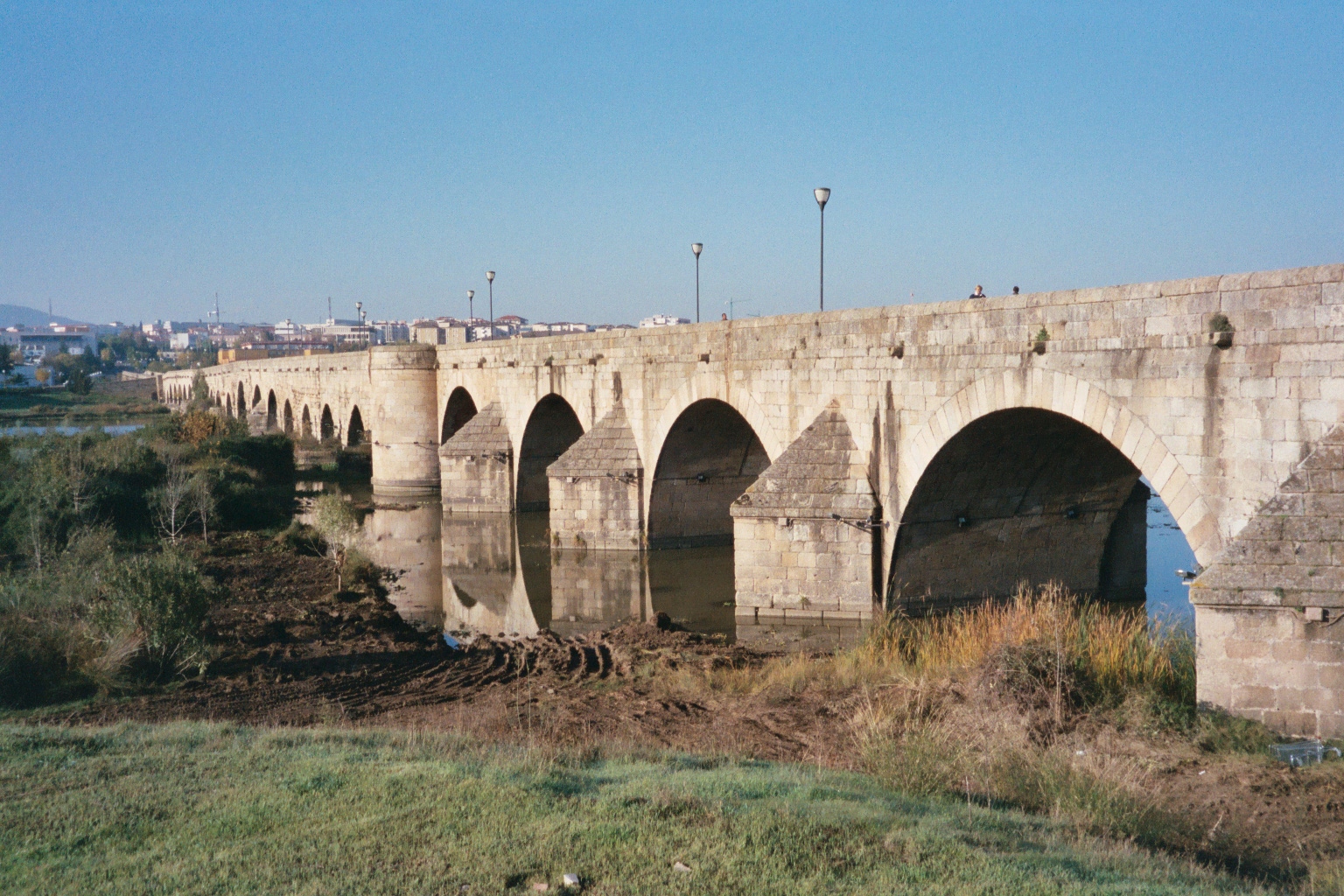

Roman bridge on the Rio Guadiana in Emerita Augustus

020_17A_0002

Roman bridge

merida_10

Prosopenia reservoir and dam that supplied water to the Proserpina aqueduct.   The Adelfas and Pardillas streams supplied water to the reservoir.  The dam has been undergone alterations over the years.  the dam is approximately 425 meters long and 21 meters deep.  There are nine adjoining buttresses (built with granite blocks) of rectangular cross-section laid as a stepped structure.

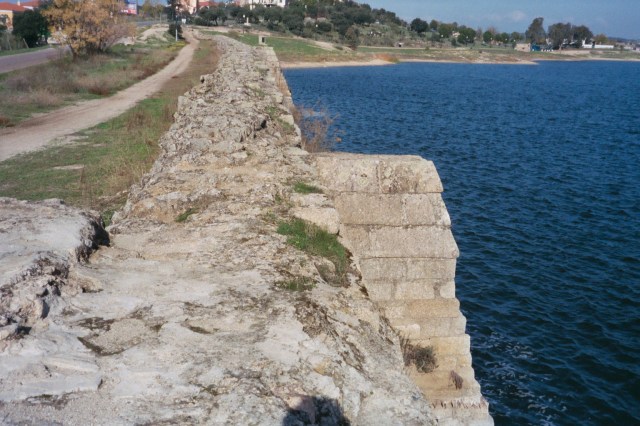

Props dam

Prospenia dam showing that the dam wall is reinforced by earth on the downstream side of the dam.

Figure 7.1 (b)

Cornalvo reservoir and dam located 15 kilometers north-east of Merida.  Dam is approximately 200 meters long and 18 meters high.  The dam was built with a concrete interior core and erected with granite b;locks and slabs.  The downstream side of the dam is earthen to help support the dam wall.  Notice the intake tower with the bridge to the tower.

023_20

Proserpenia aqueduct bridge known as the Los Milagros aqueduct bridge accross the Rio Albarregas.  Water was delivered into the city via the Calvery Hill.

005_2

Fountain supplied by Los Milagros aqueduct in background

027_24_0001

Remains and reconstruction of the settling tank (piscina limaria) downstream of the Los Milagros bridge on the hill top.

019_20

Only remains of the Las Thomas aqueduct bridge across the Rio Albarregas located near the hippodrome.

015_12

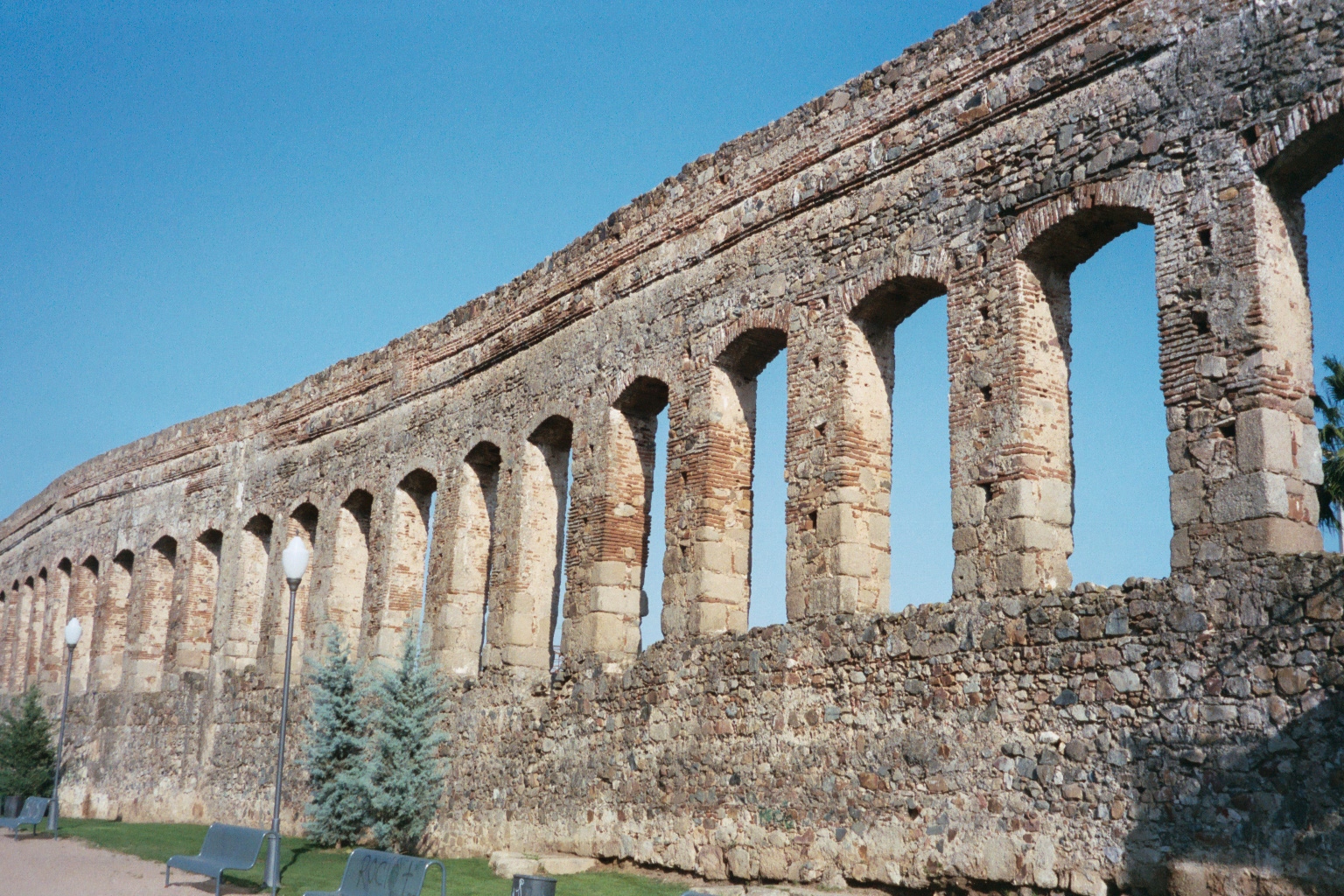

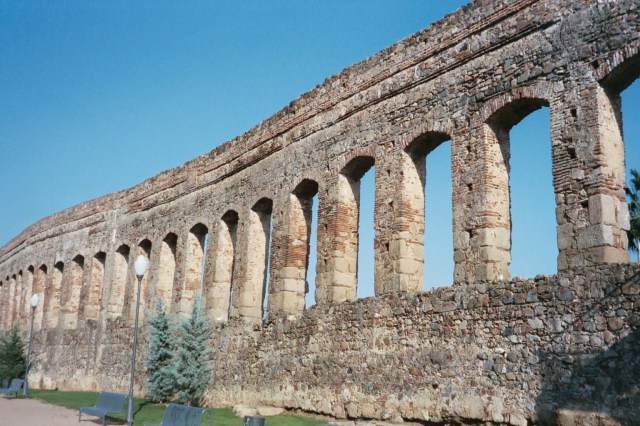

Material from the Los Tomas aqueduct bridge was used to build this aqueduct across the Rio Albarregas by the Muslims.

009_6_0001

Los Thomas aqueduct downstream of the aqueduct bridge near the Roman theater.  Notice the lion-head gargoyle carved from stone that was used as a gutter spout.

012_12A

Los Thomas aqueduct downstream of the aqueduct bridge across the Rio Albarregas

Cornalvo Aqueduct

Remains of Cornalvo aqueduct supplying water from the Cornalvo dam to Emerita Augusta

020_17_0001

Segovia, Spain

00700013

DSC_9136

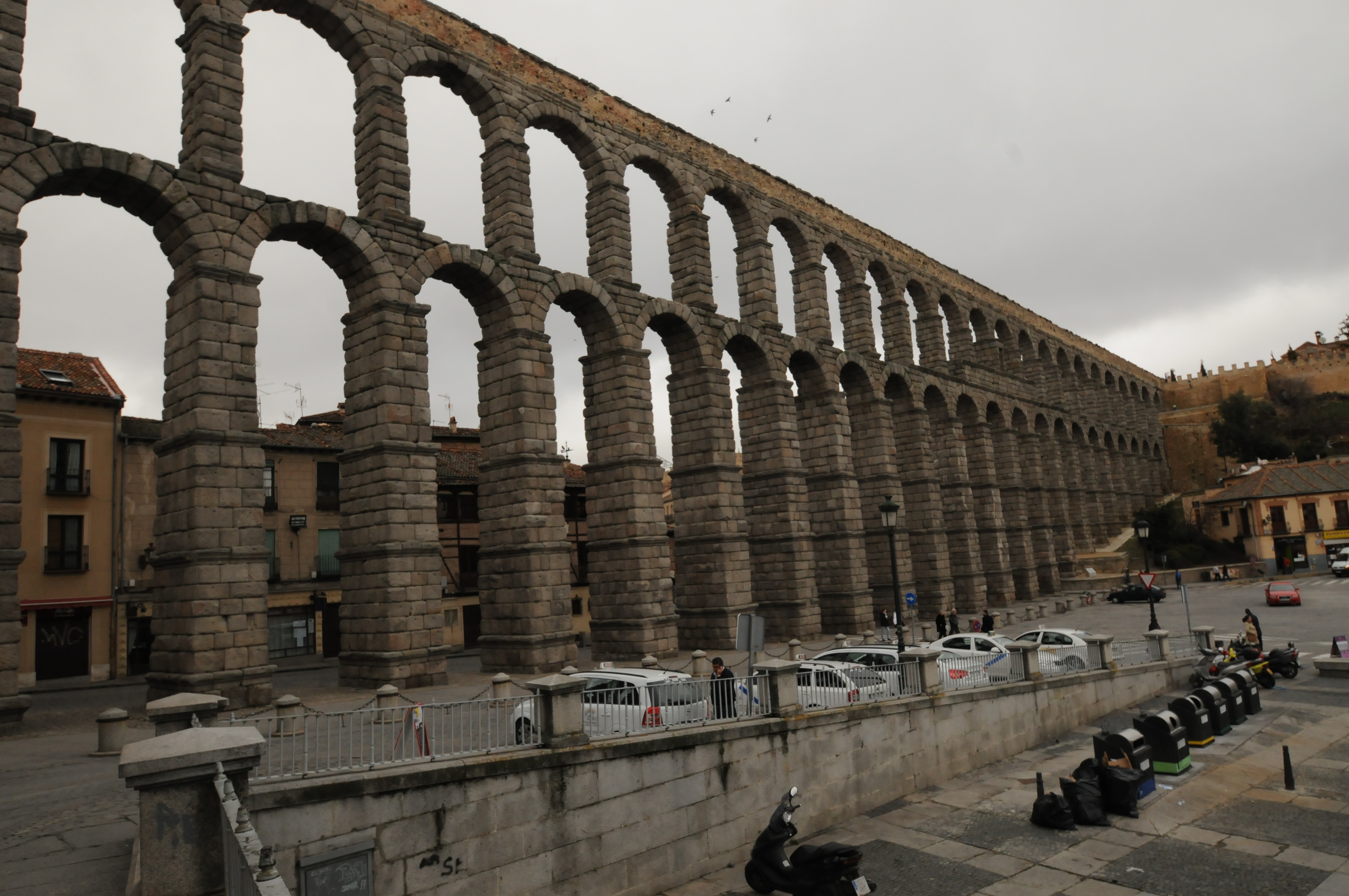

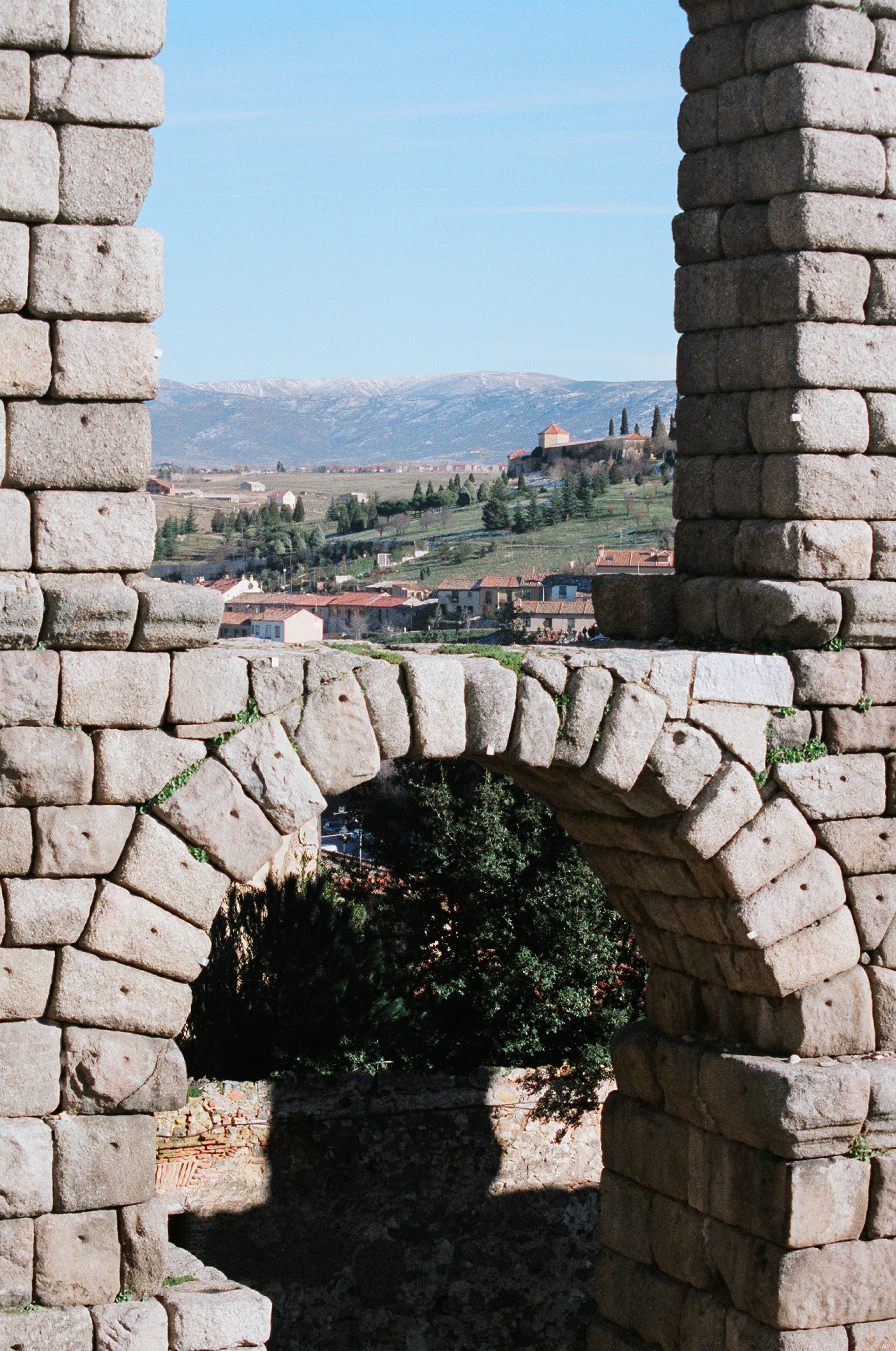

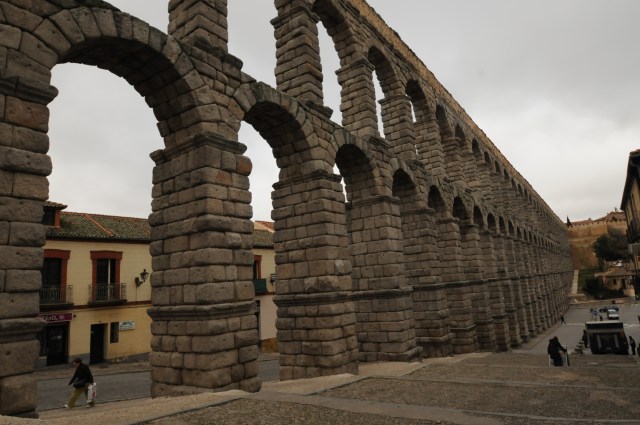

Aqueduct bridge in Segovia

DSC_9140

DSC_9129

00700006

00700005

00700004

00700010

00700011

Illici, Spain

100_0032

Cistern

100_0045

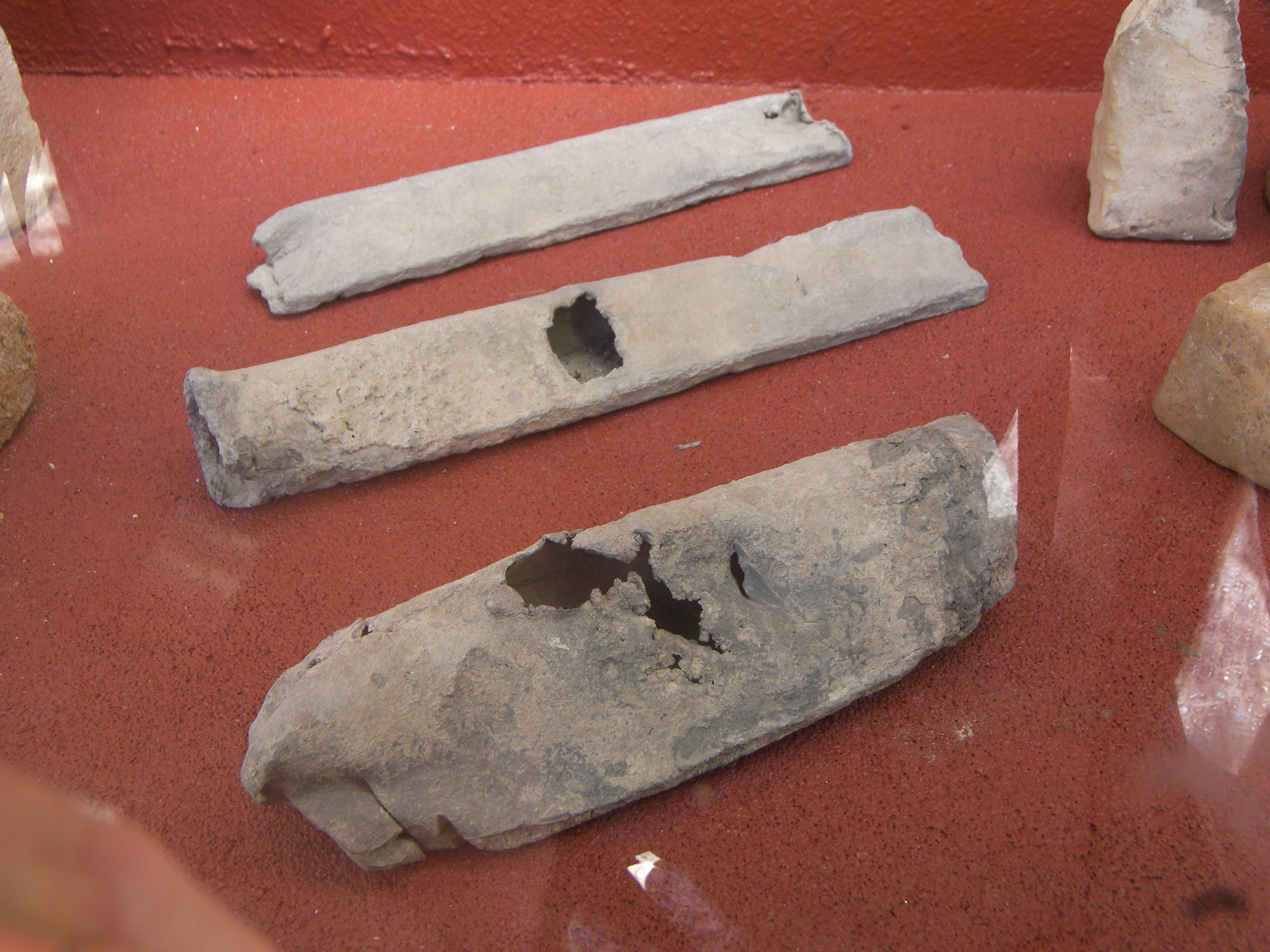

Types of piping found at Illici

100_0041

Lead pipes

100_0050

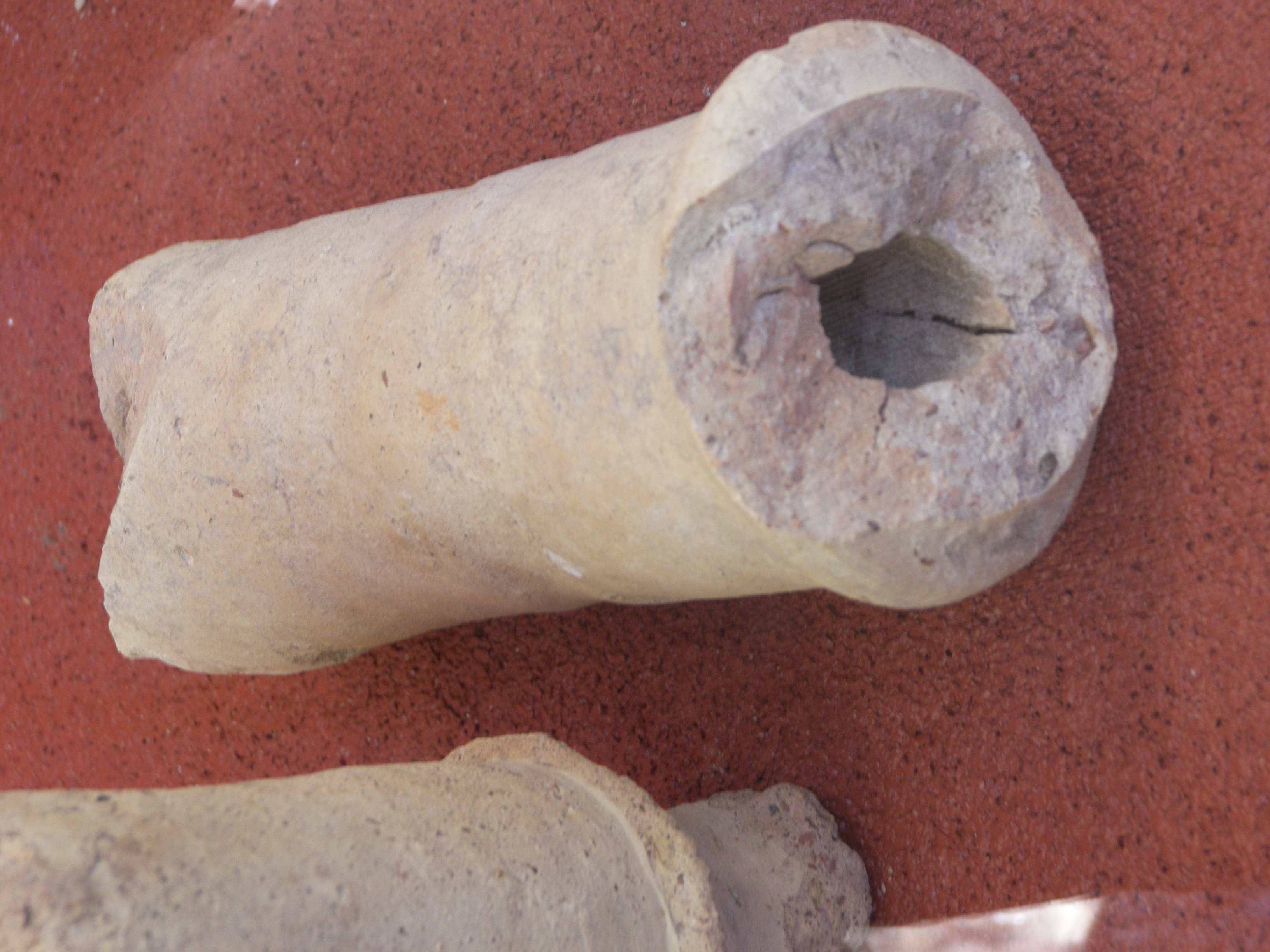

Terracota pipes

Consuegra, Spain

DSC_8975

Remains of the Roman dam and reservoir near Consuegra, Spain

Lucentum near Alicante, Spain

2006-06-09_0025

Reconstruction of bath at Lucentum.  This photo shows the hypocaust (hypocaustum) which was a the system for underfloor heating used in buildings and and hot baths (thermae).    The pillars (pilae stacks)
