Water technologies in the pre-Columbian Americas: The Inca

INCA

The Inca civilization emerged from fragmented independent societies by ca. 1000 AD (D’Altroy, 2003).  The extent of the Inca Empire included parts of modern day Columbia, Ecuador, Peru, Bolivia, Chile, and Argentina.  The small city-state of Cuzco became the capital under the rule of Pachacuti Inka Yupanki and represented a center of Tawantinsuyu (The Four Parts Together), i.e. the Inca Empire.

The Inca Empire was short-lived (lasting a little more than a 100 years) before collapsing as a result of the Spanish invasion.  During this short time period they were able to accomplish a great deal in architecture, engineering, and agriculture.

Fig_9.15

General map of the Machu Picchu and Cuzco areas showing location of the Sacred Valley of the Inca(copyright with Dr. Yuri Gorokovich)

The area around Cuzco contains numerous historical sites with examples of water technologies.  Pachacuti Inca Yupanqui and his sons designed and implemented water irrigation channels around Cuzco including fountains and culverts for springs. He built Tambo Machay, a spring shrine type structure which according to Spanish historian Bernabé Cobo served as a lodging for Pachacuti when he went hunting (Hemming, 1982).  Both, Tambo Machay and nearby Puca Pucara are huacas (“sacred things” or “anything in nature that is out of the ordinary”), that served primarily for religious services and worships (Bauer, 1998).

The Inca had a remarkable knowledge of engineering as evidenced by their roads, bridges, water systems, irrigation systems, and agricultural systems.  The Inca road system was massive and elegant covering much of the Andes from the present day borders of Columbia and Ecuador to south of Santiago, Chile.  This was the most extensive ancient construction in the Americas with approximately 23,000 km (nearly 13,000 miles that can now be charted) and possibly may have been twice as large.  The massive road system of the short-lived Inca Empire obviously was based upon not only the new construction of roads, but also some roads built by the pre-Inca.

The Incas practiced the art of agriculture carrying it to a “remarkable extreme” (Bingham, 1948).  They understood the cultivation of soil, irrigation of crops, agricultural drainage, fertilization of crops, and soil conservation using terraces (terrace agriculture) in most agricultural fields in the Peruvian Andes.  Pisac, developed as an estate for Inca royalty is one of the most spectacular examples of Inca agricultural practices.

DSC_7514

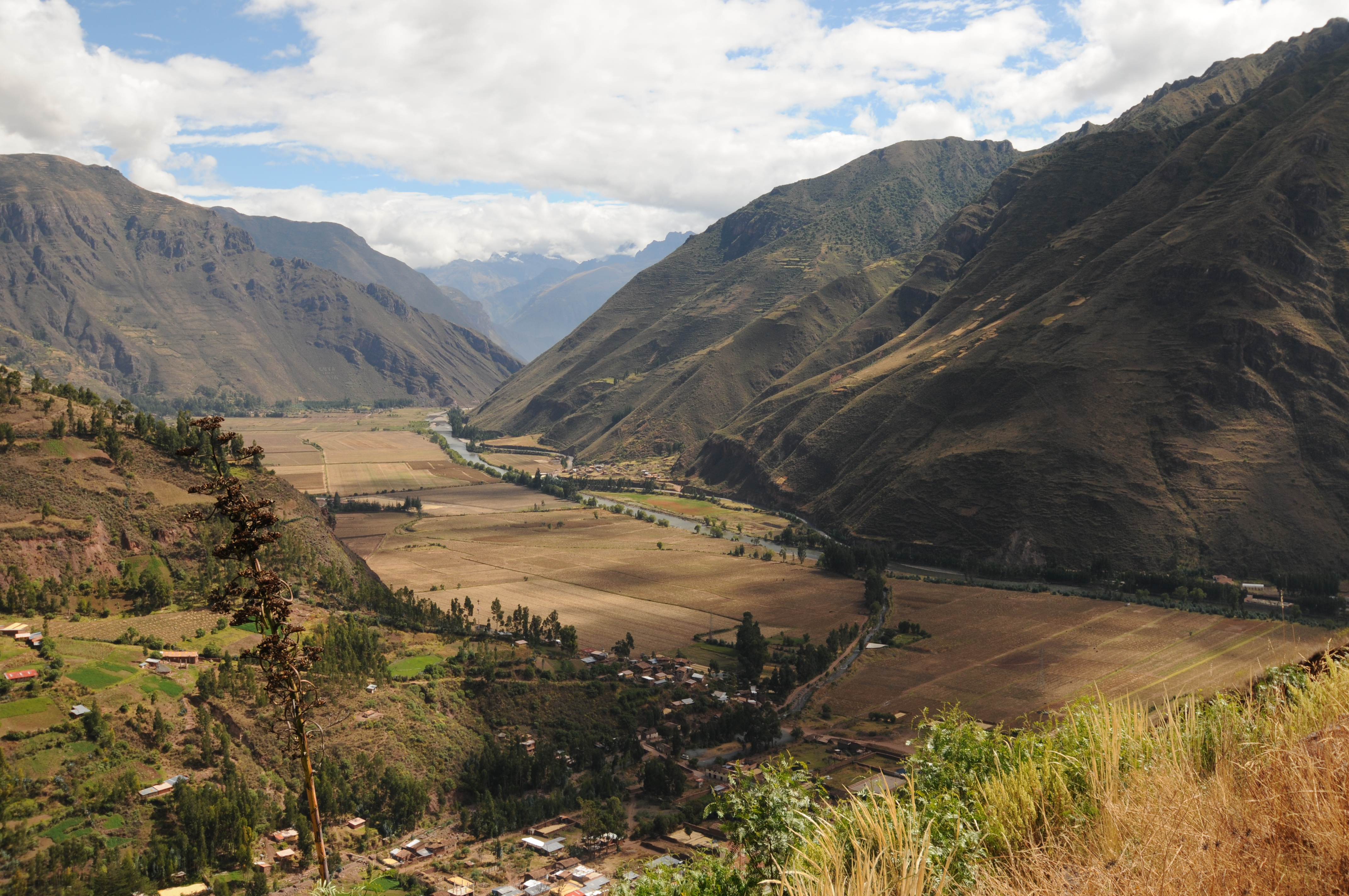

Sacred Valley near Pisac

DSC_7525

Condor Mountain above town of Pisac showing the agricultural terraces.

Machu Picchu, Peru

Susi M P

Machu Picchu showing the Urubamba River below that circles around Machu Picchu.  The taller mountain peak of Huayna Picchu and shorter peak of Una Picchu.

DSC_7981

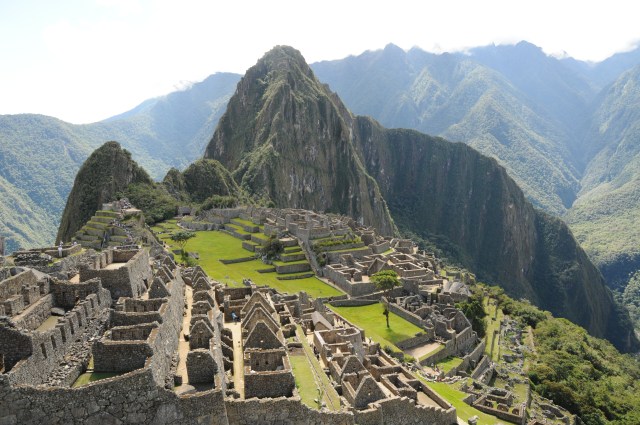

Another view of the urban area of Machu Picchu.

DSC_7955

Aqueduct channel flowing to fountains.

DSC_7956

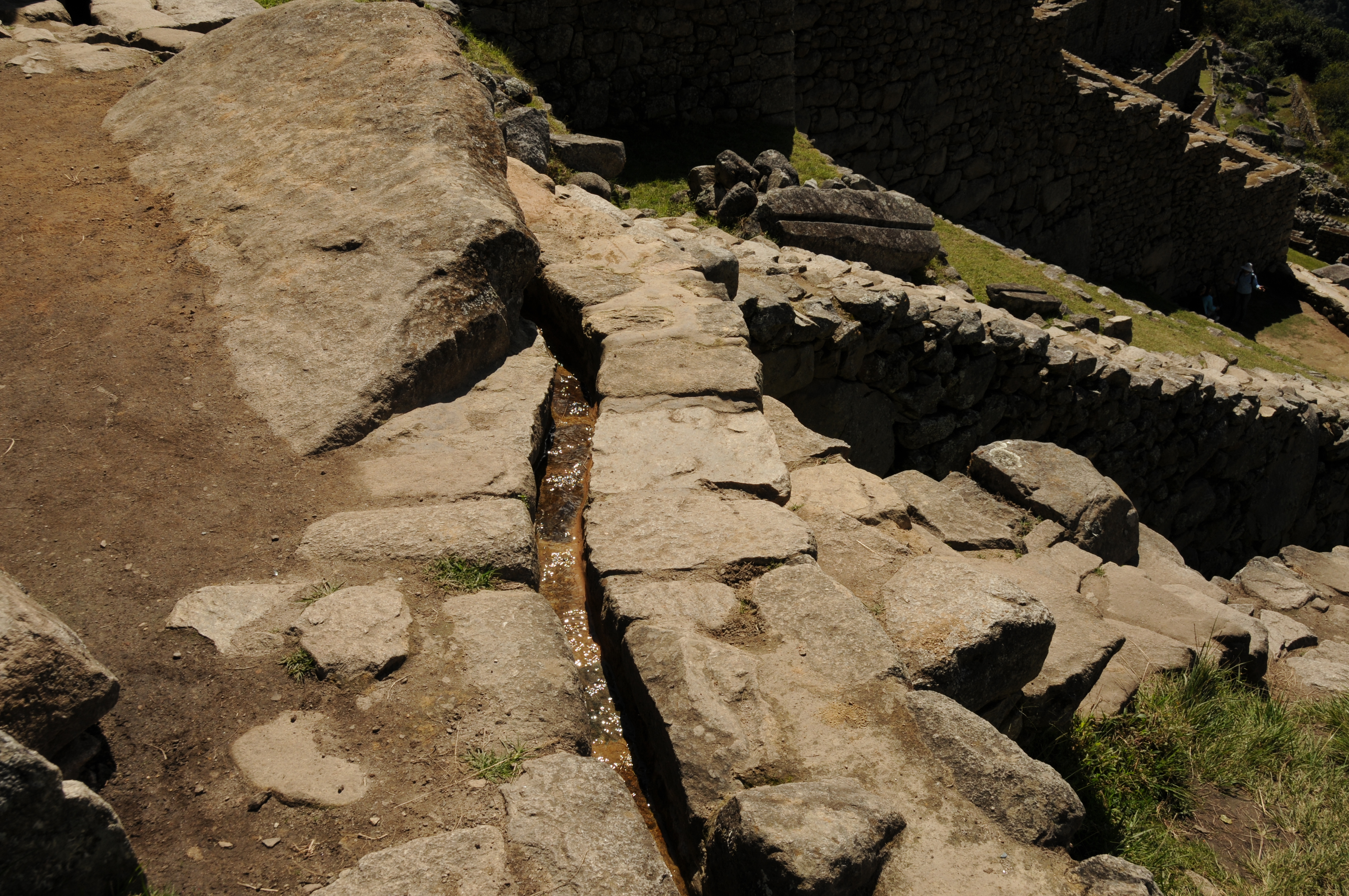

Aqueduct channel into flowing to fountains.

DSC_8159

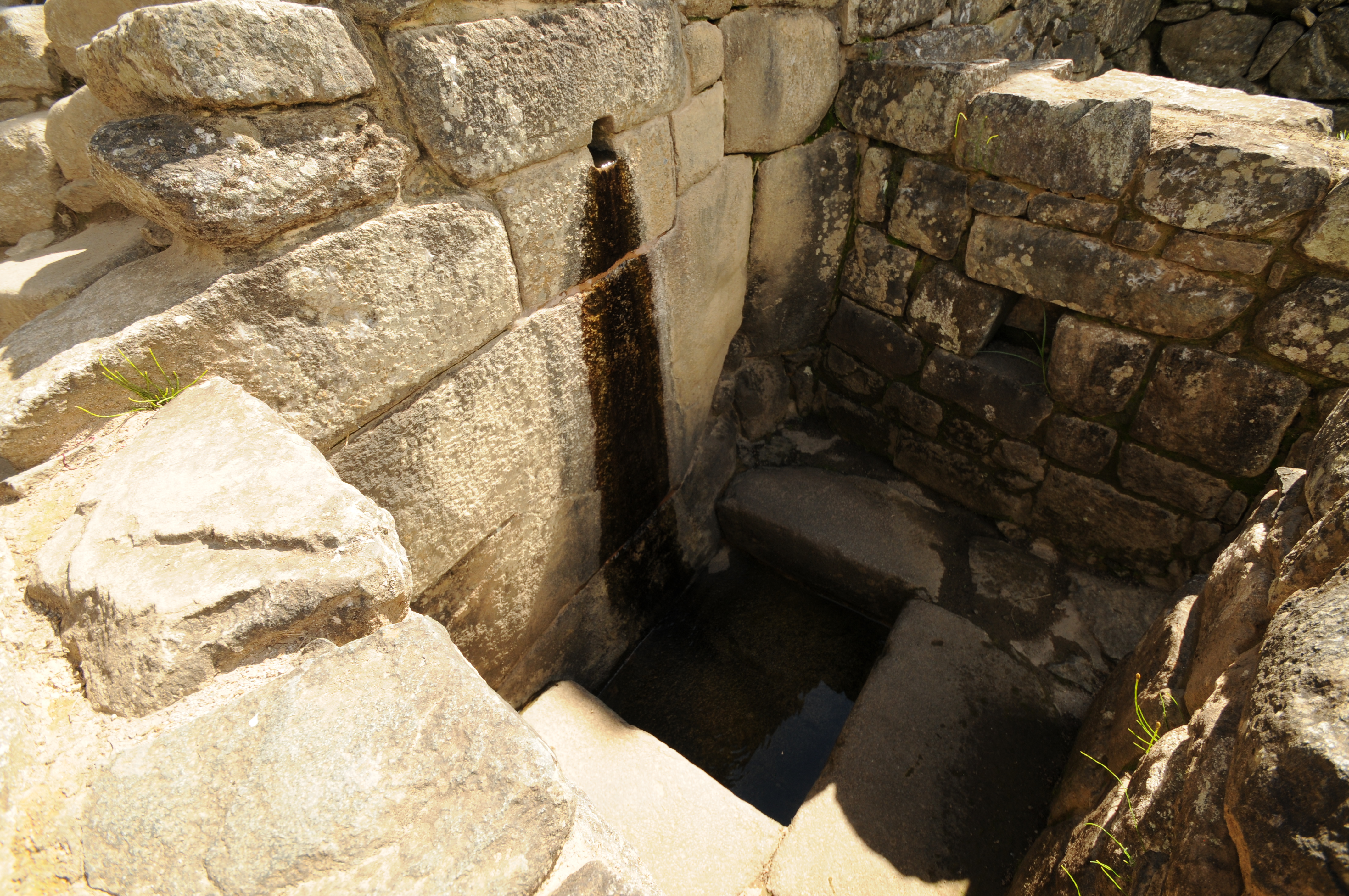

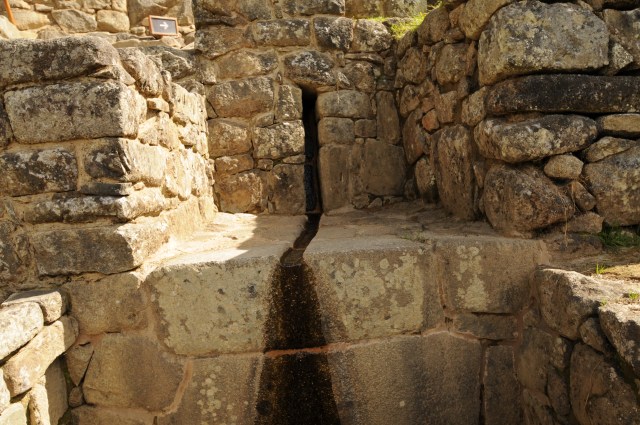

Fountain

DSC_8191

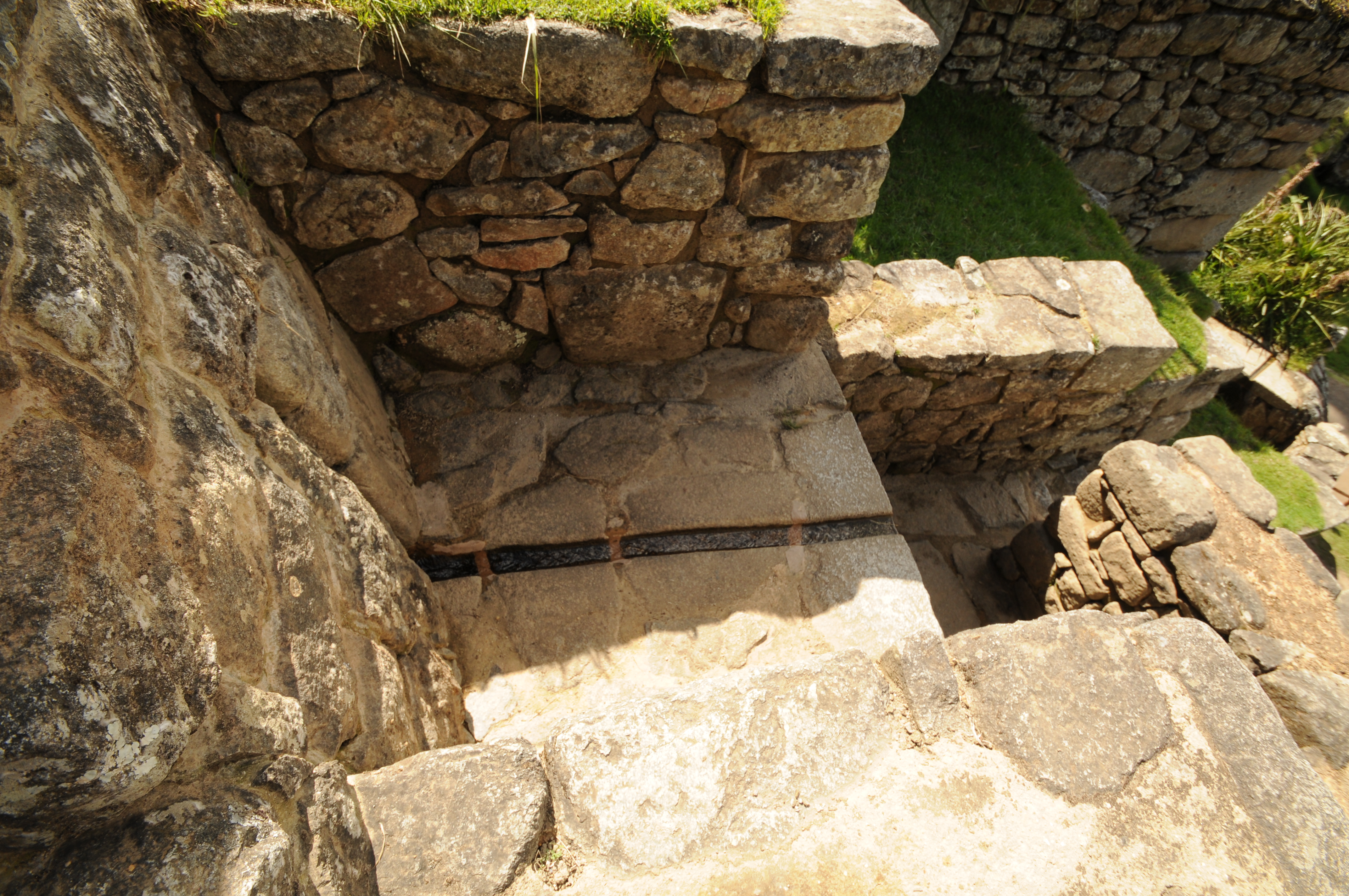

DSC_8190

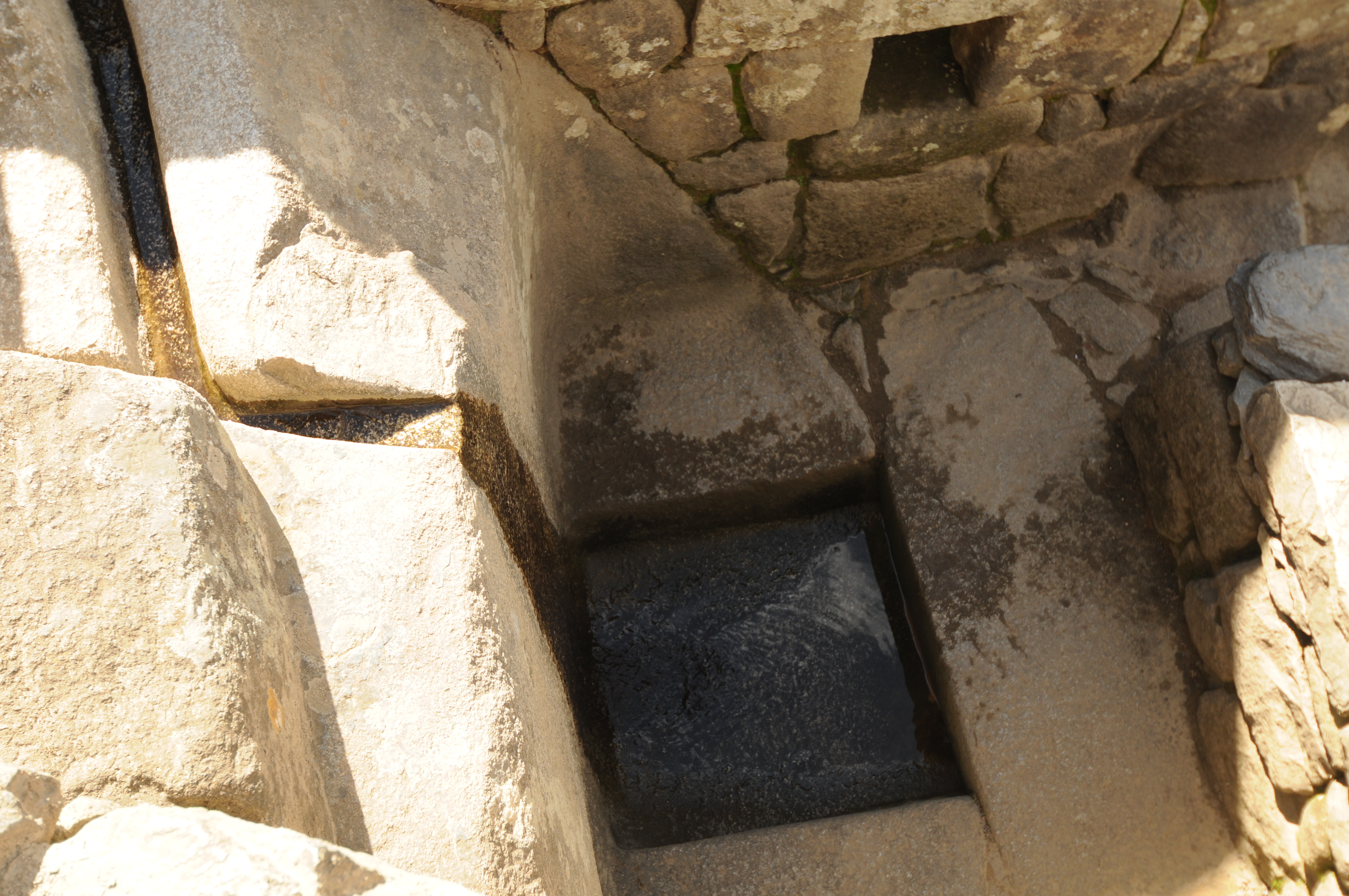

DSC_8132

DSC_8150

DSC_8185

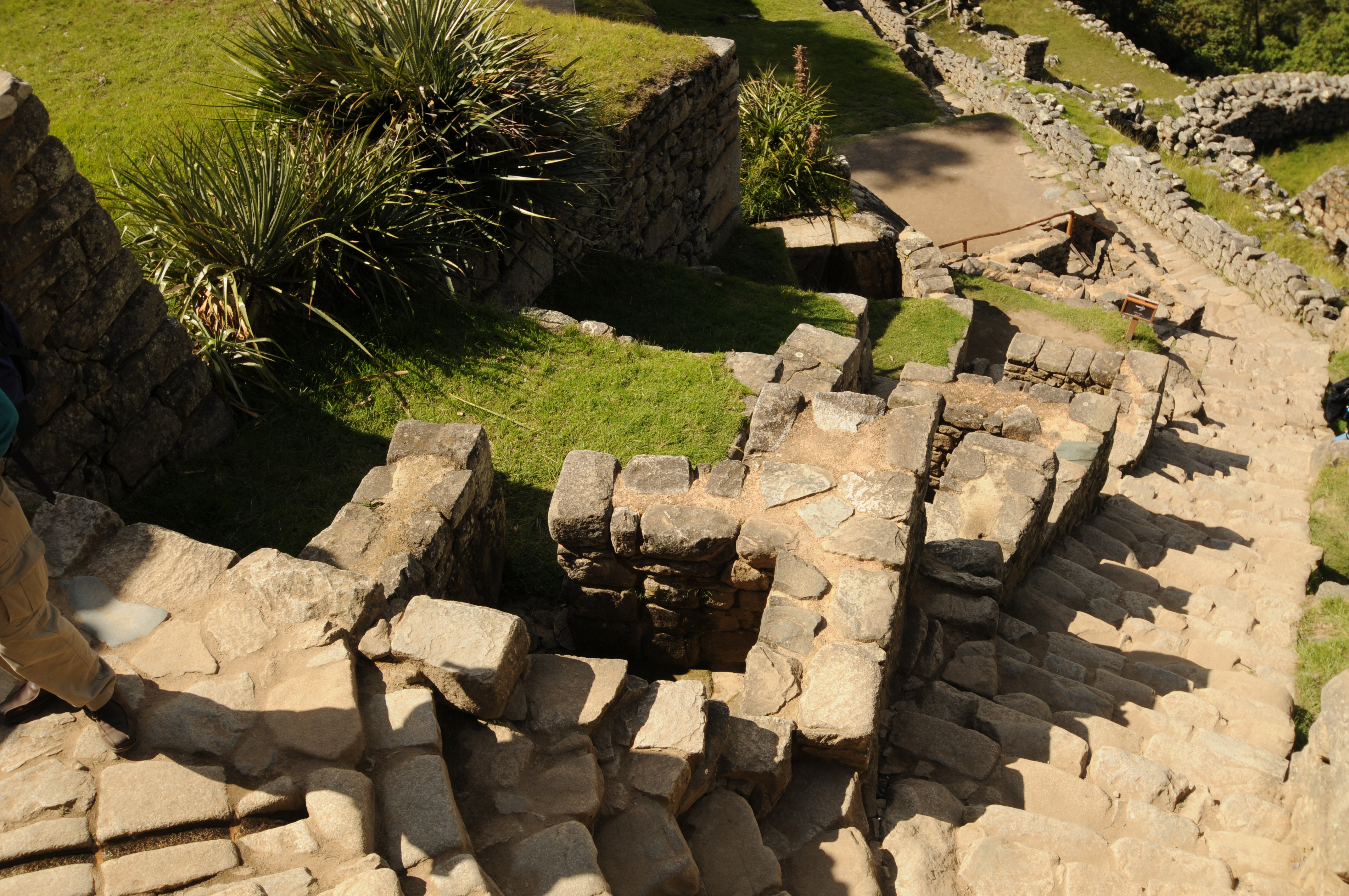

Stairway along fountains.

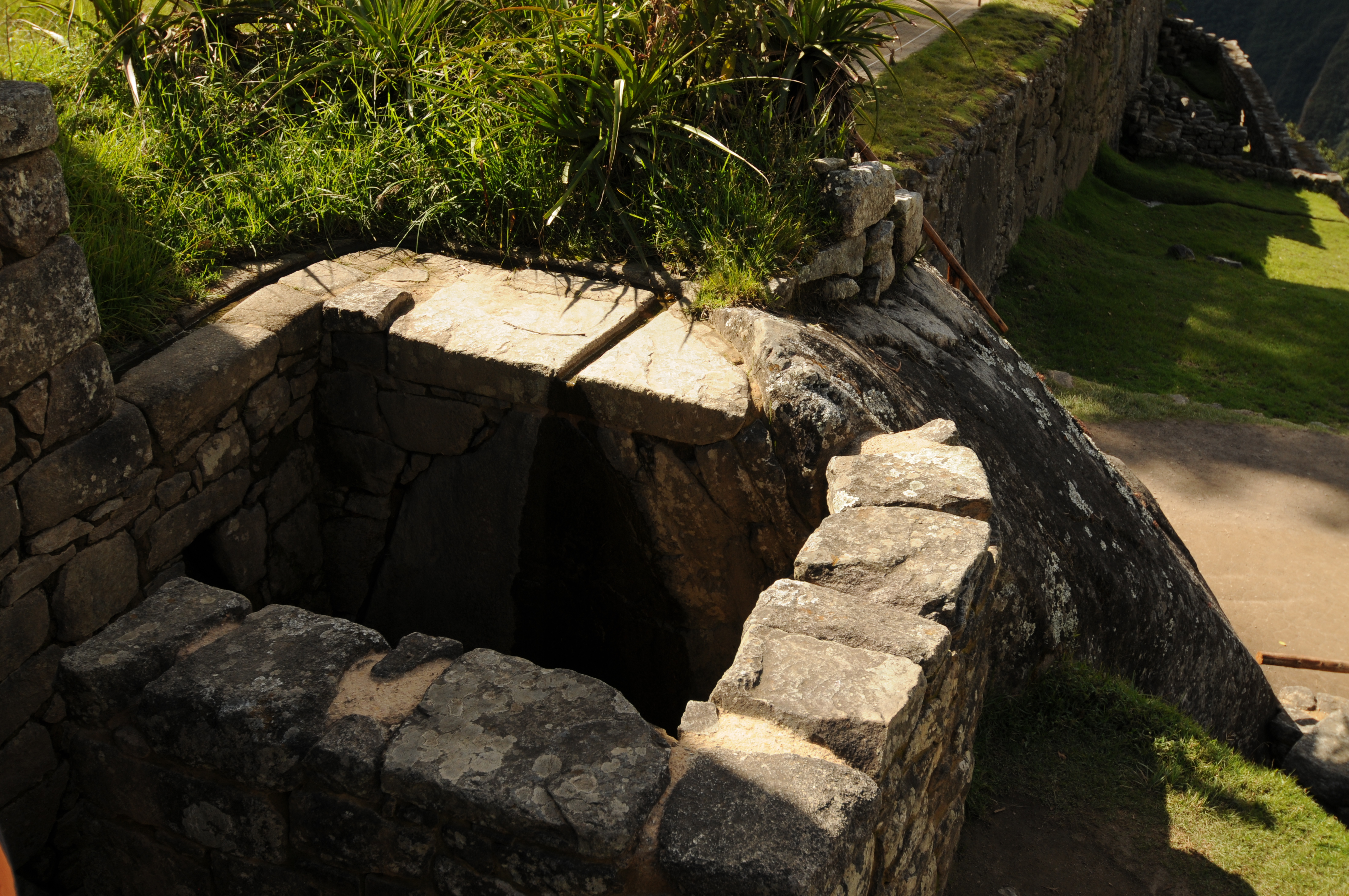

DSC_8199

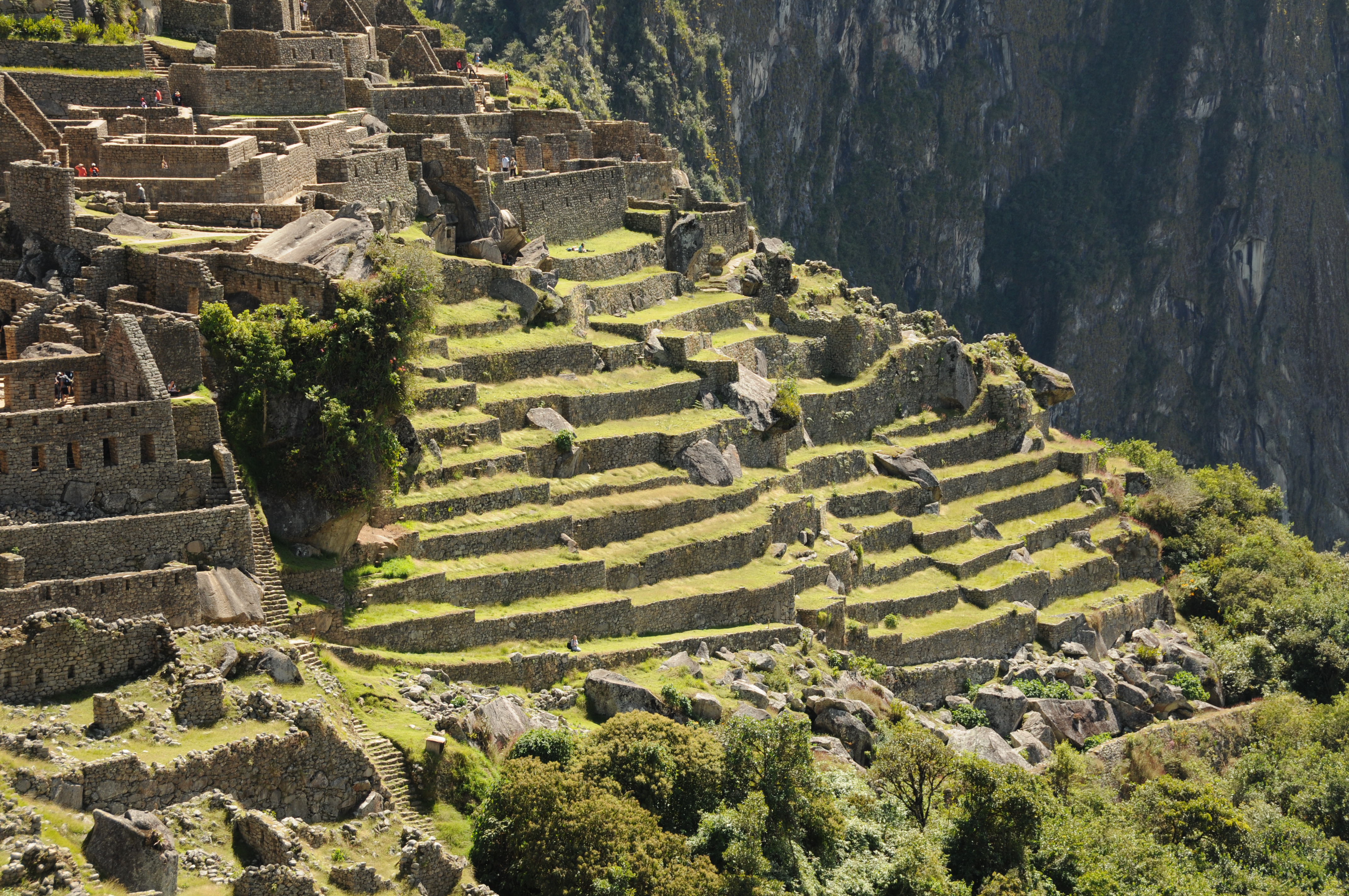

DSC_7937

Terraces

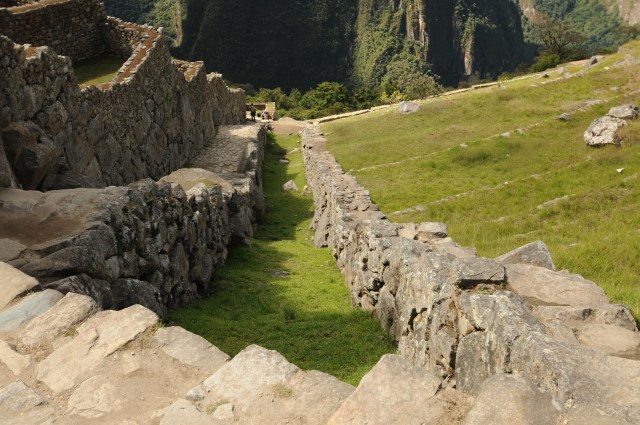

DSC_8074

Main Drain

DSC_8102

Smaller drainage channel

Temple of the Sun at Machu Picchu

DSC_8085

Looking down into the Temple of the Sun (with the curved wall), encloses the rock huaca.  Also shown is the window above the Royal Tomb.

DSC_8178

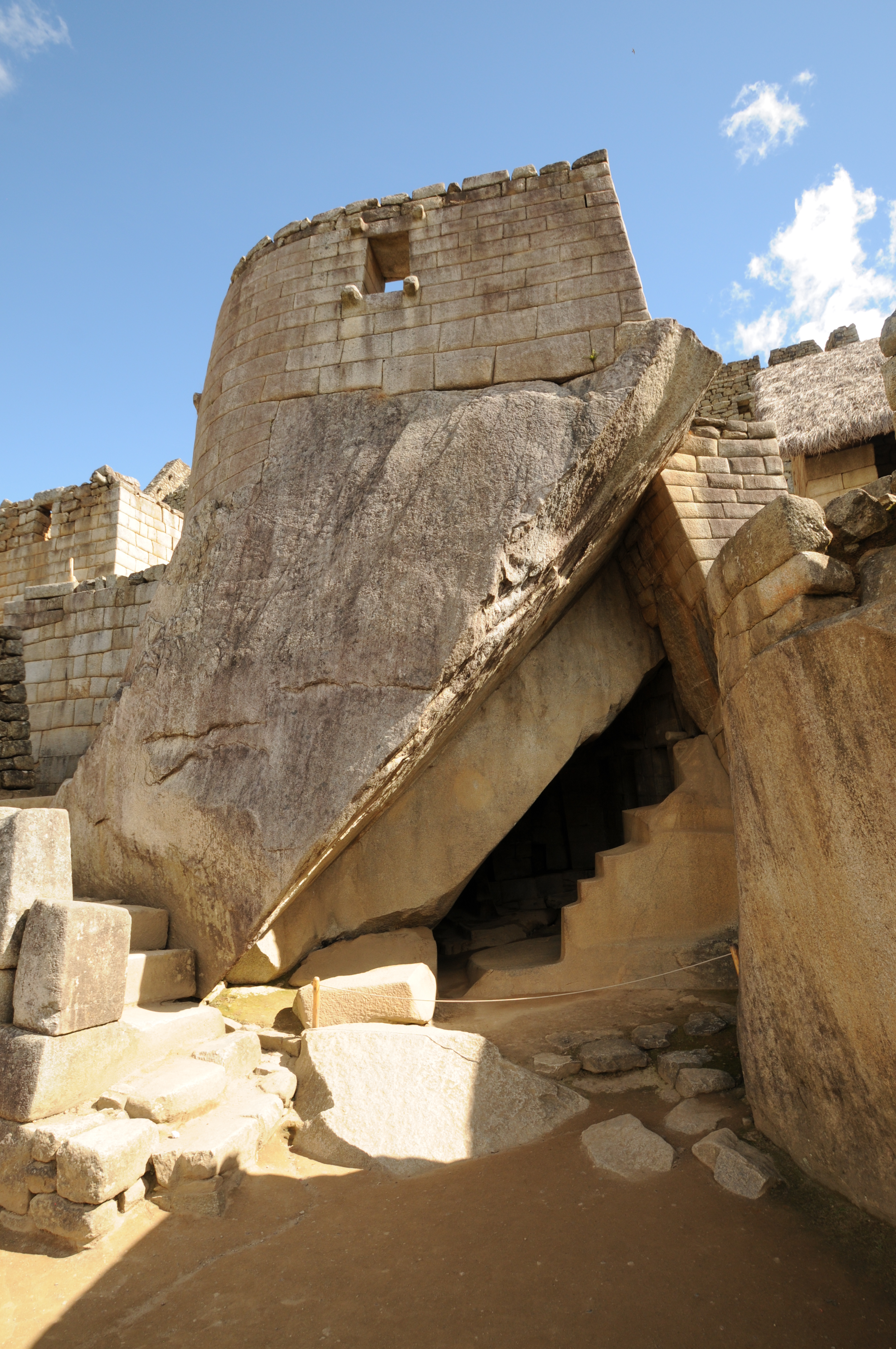

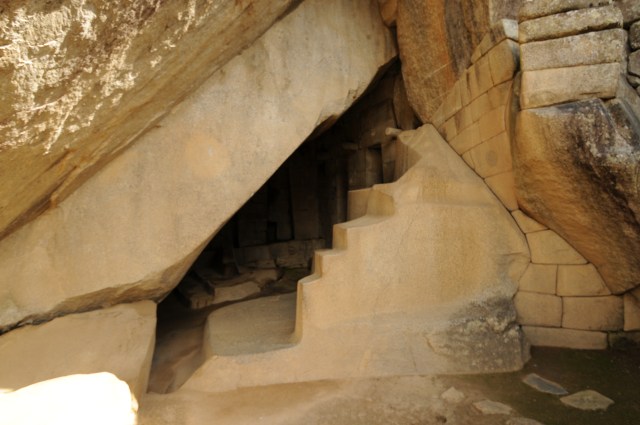

The Temple of the Sun at the top has the curved wall and as shown was built on a huge outcrop of granite.  Under the Temple is the Royal Tomb with the shaped stone that look like steps.

DSC_8136

Representing the interior world are the sculpted stairs that sing, located below the Temple of the Sun at Machu Picchu.

DSC_8121

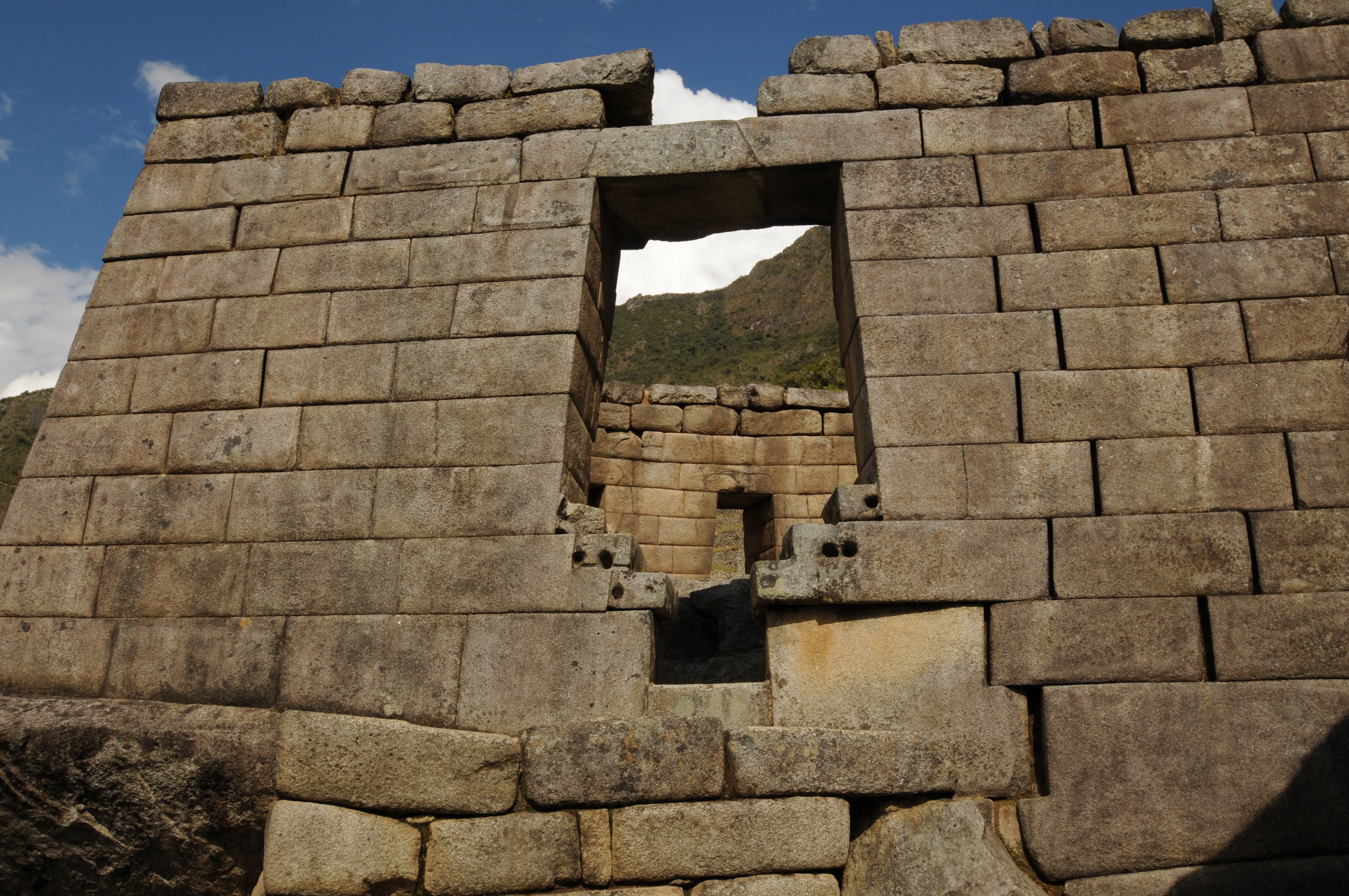

This window in the wall of the Temple of the Sun overlooks the third fountain from the top fountain of the 16 fountains.  Note the unexplained small holes in the stones near the bottom of the window.

DSC_7938

Note the type of architecture that would have thatched roofs.

DSC_8259

Grain warehouses near the main entrance to Machu Picchu.  Note the thatched roofs that were attached using eye-anchors and roof pegs as first described by Bingham (1912).

DSC_7953

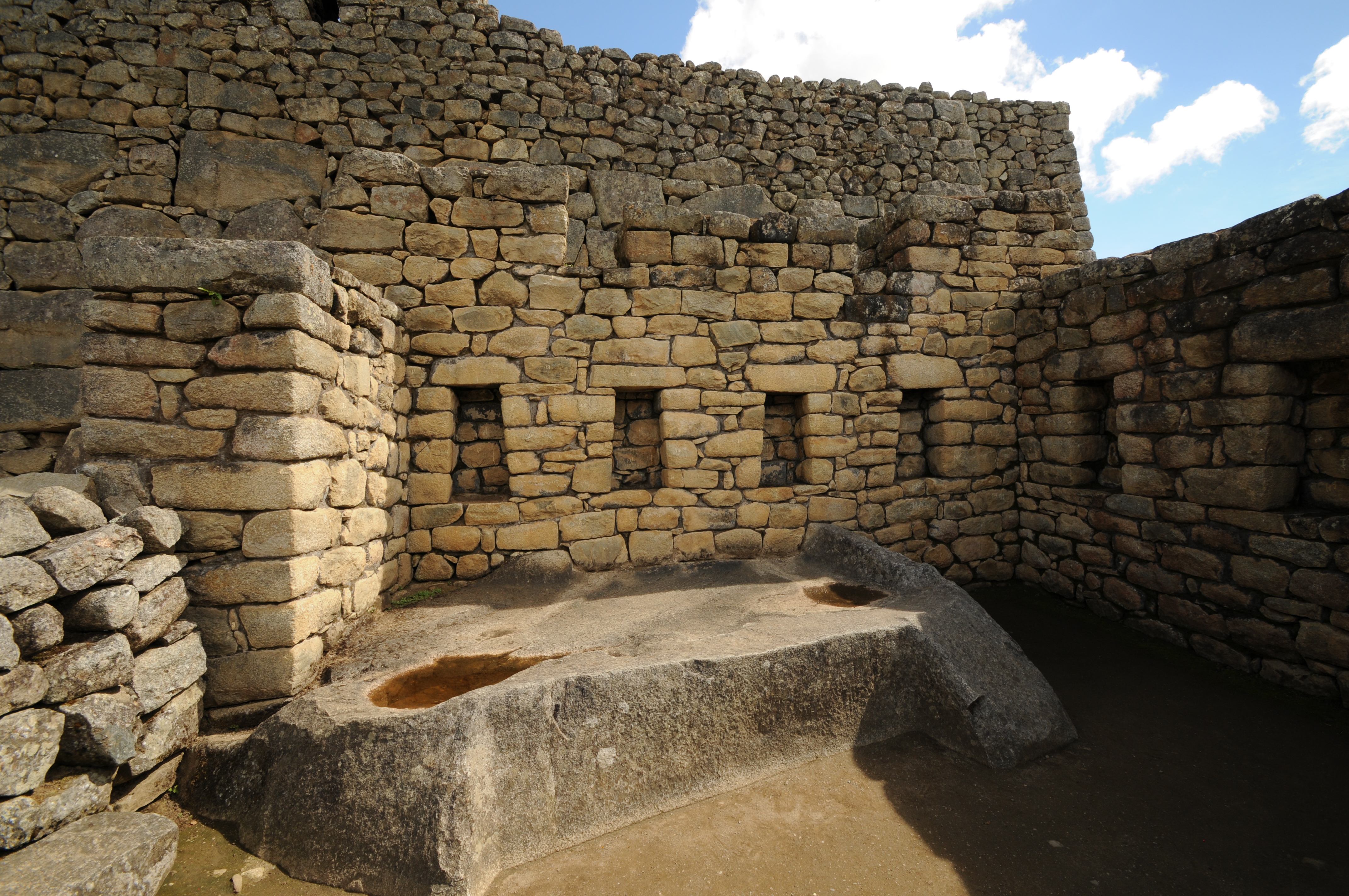

Rock with carved channel that may have been abandoned.

DSC_8091

Susi M P

Pisac

Pisac is one of the closest major ruins to Cuzco located in Yucay Valley near river Vilcanota  at elevation of 3400 m. Its history and origin are almost absent from chronicles, except from few notes by Sarmiento de Gamboa in his description of the valley of Pisac (Hemming, 1982). It is possible that this was a place visited by Pachacuti Inca Yupanqui for pleasure but no historical documents reveal its history and origin.  Some architectural evidences, such as gates, defensive walls and stone pegs for doors show a possible military role of Pisac. The site structures are scattered along the mountain side and consist of granaries, living quarters, fortified barracks and series of beautiful agricultural terraces with irrigation channels.

The water use in Pisac was mainly for irrigation and religious services. The central inti-huatana (The Temple of Sun) in Pisac is surrounded by walls and has few baths and a water channel. The water channel comes out of the western side of the mountain and is about 20-25 cm wide. It is hard to reconstruct the original water works structure because extensive restoration projects at Pisac “mask” ancient remnants with more pleasing appearance that is catered for tourists.

DSC_7575
Agricultural terraces at Pisac which was developed as an estate for Inca royalty is one of the most spectacular examples of Inca agricultural practices.

DSC_7693

Agricultural terraces and fountains to the right

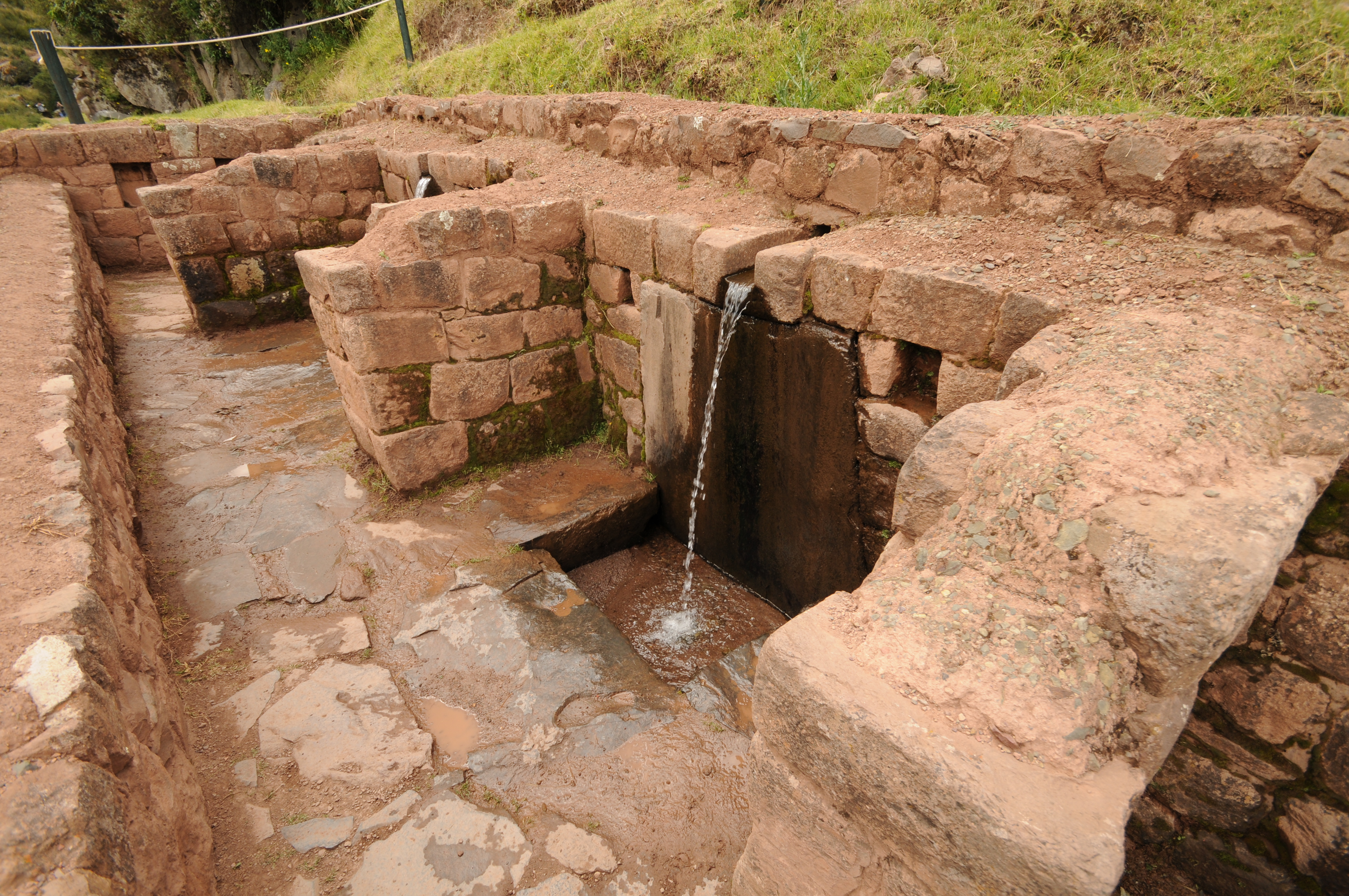

DSC_7648

Fountains

DSC_7638

Fountains with channel below

DSC_7635

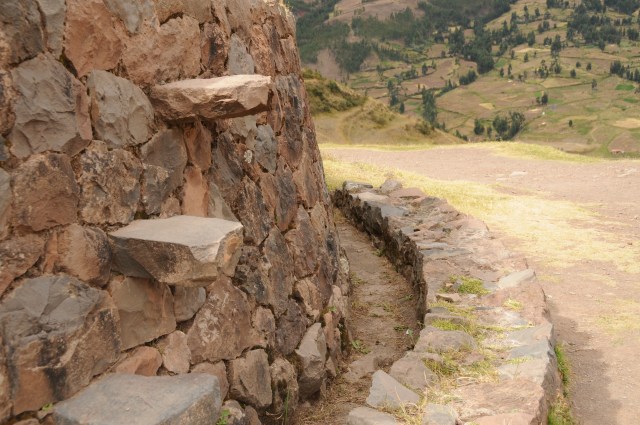

Water channel below fountains and steps

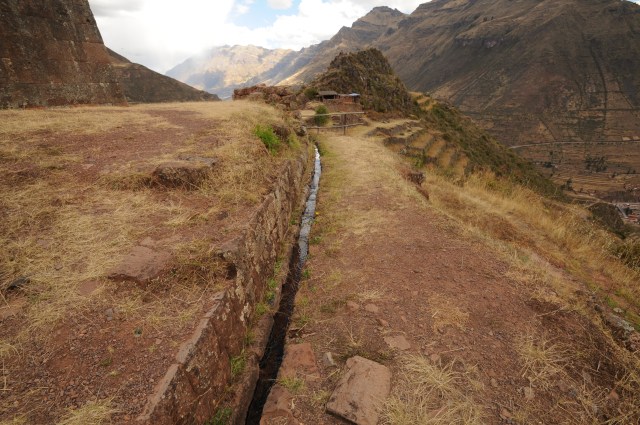

DSC_7761

Water channel

DSC_7751

Central Inti-huatana shown in the curved wall area.

DSC_7781

Fountain near

DSC_7784

Channel downstream of fountain

DSC_7794

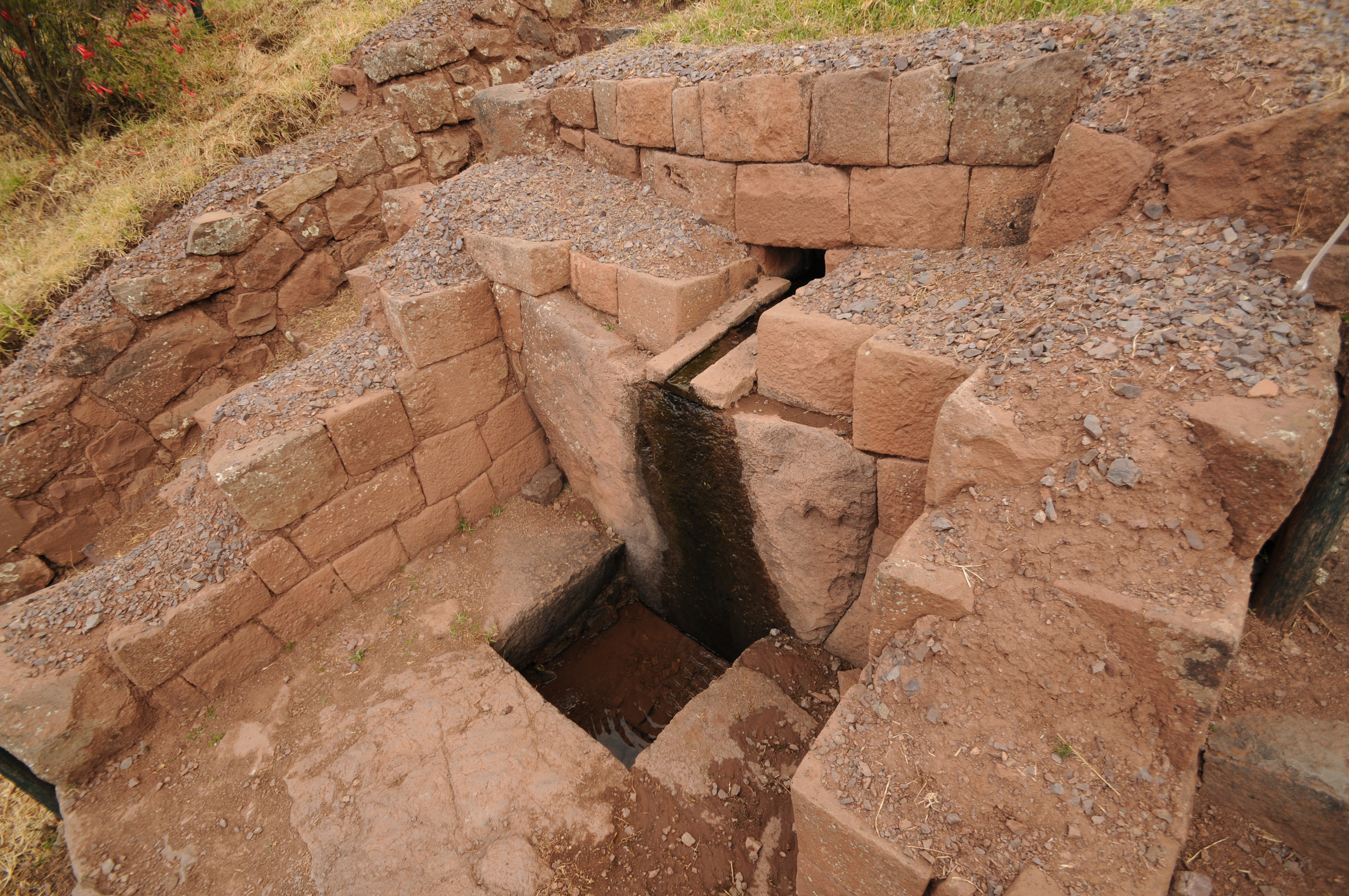

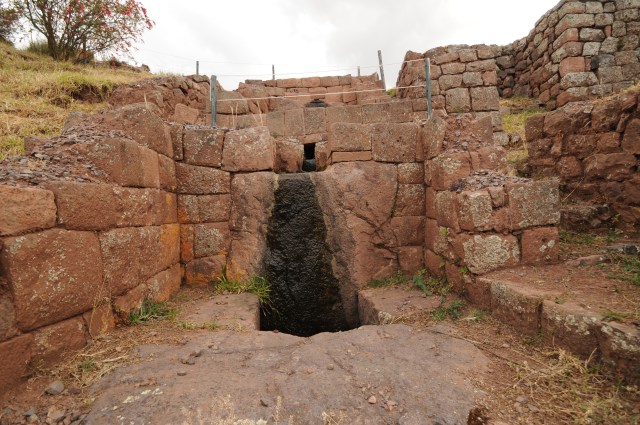

Channel flowing into ritual bath

DSC_7772

Location of fountains downstream of the ritual bath

DSC_7808

DSC_7800

DSC_7798

DSC_7632

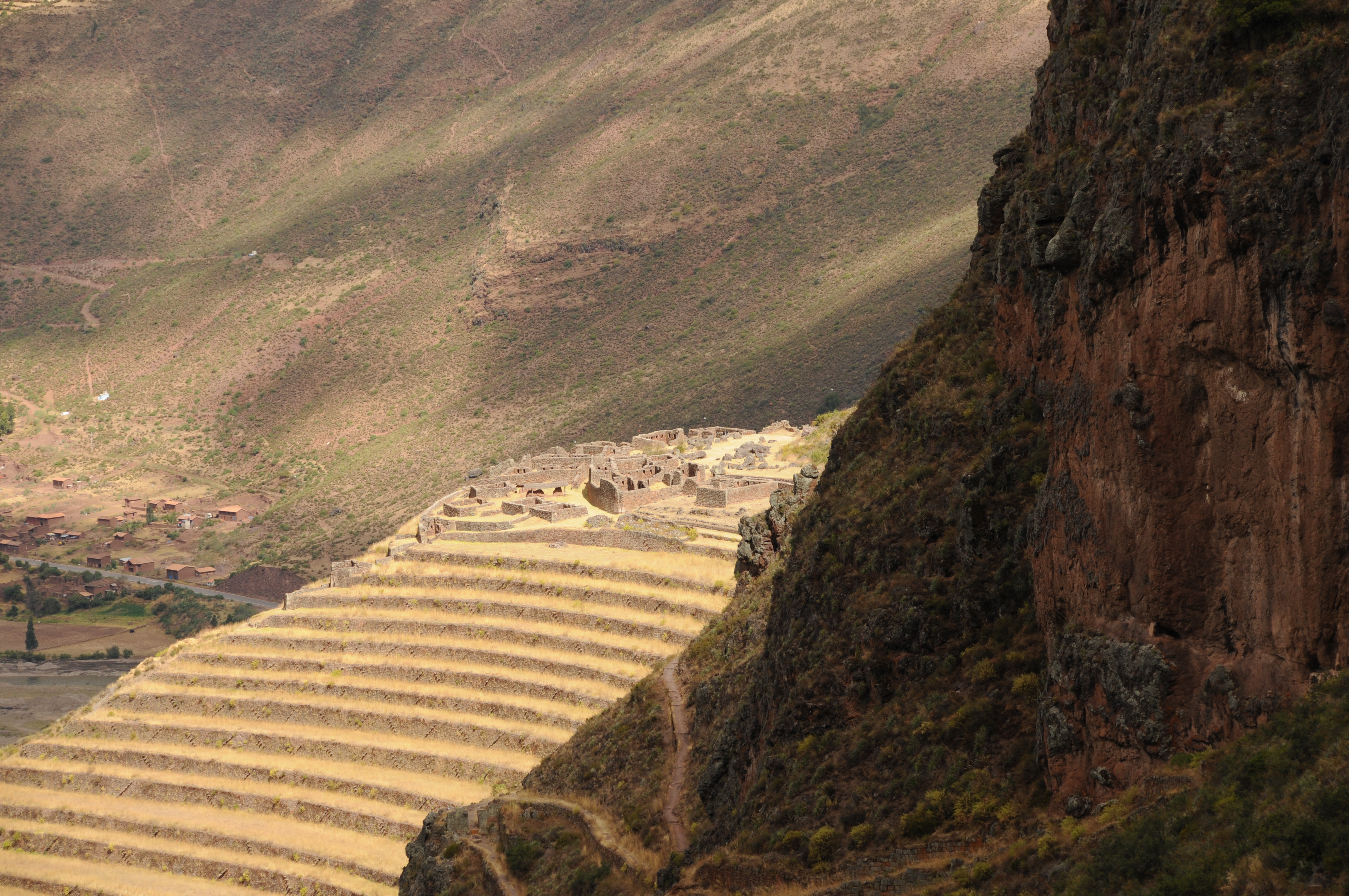

Terraces

Tipon

Tipon is located 23 km southeast of Cuzco at an elevation of 3560 m above mean sea level. It is made up of 12 terraces that are flanked by stone walls. In Tipon water was diverted from the Rio Pukara for irrigation and domestic supplies.  Three irrigation canals (aqueducts) diverted water upstream of Pukara, approximately 1.35 km north of Tipon’s central terraces. The main aqueduct diverted water from the river at an elevation of 3690
m.

Several fountains were built  Tipon. The principal fountain received water from the main spring near the top of the terraces.  This fountain provided domestic water supply
for the noble residents prior to use of the water for any other purpose.  Another fountain which supplied water for ceremonial purposes and for domestic water was located on the side of one of the terraces.  This fountain received water from a canal through an approach channel and conduit, then dropped into a stone basin.  The unused water flowed into another downstream canal that conveyed the water.  A fountain also was built in the Ceremonial Plaza.

The Central Terraces of Tipon

DSC_1020

Bottom of terraces and entrance to Tipon

DSC_1060

Central terraces

DSC_1097

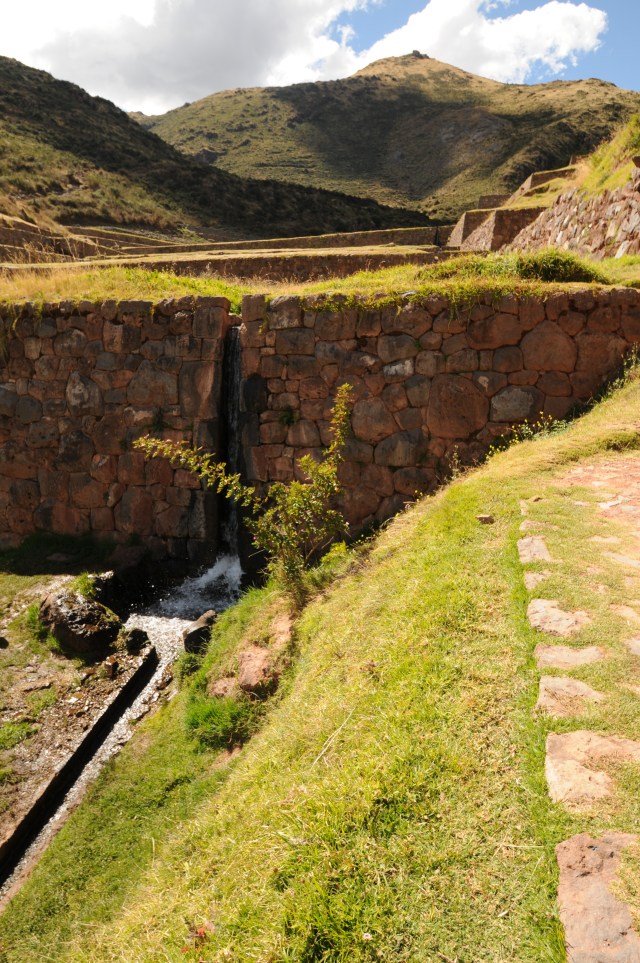

Hydraulic drop structures near middle of central terraces.

DSC_1124

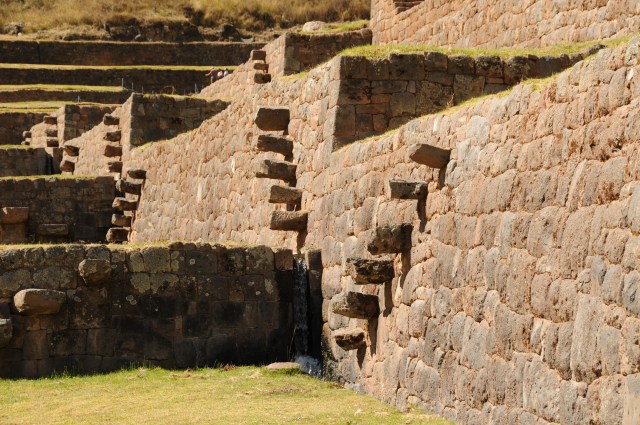

Terraces walls showing arrangement of steps from terrace to another.  Note the proximity to the hydraulic drop structure.

DSC_1147

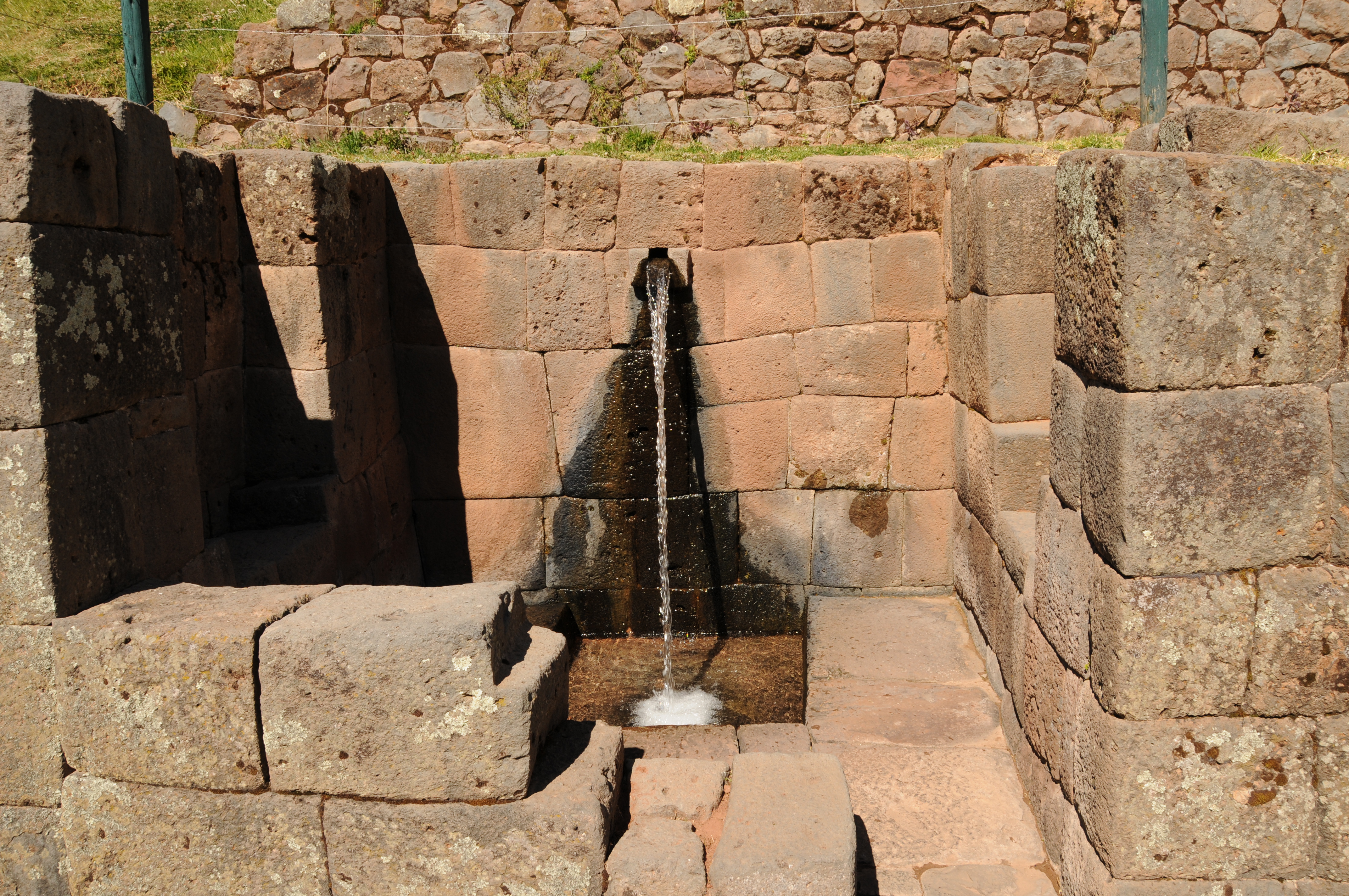

Ceremonial fountain along terraces

DSC_1305

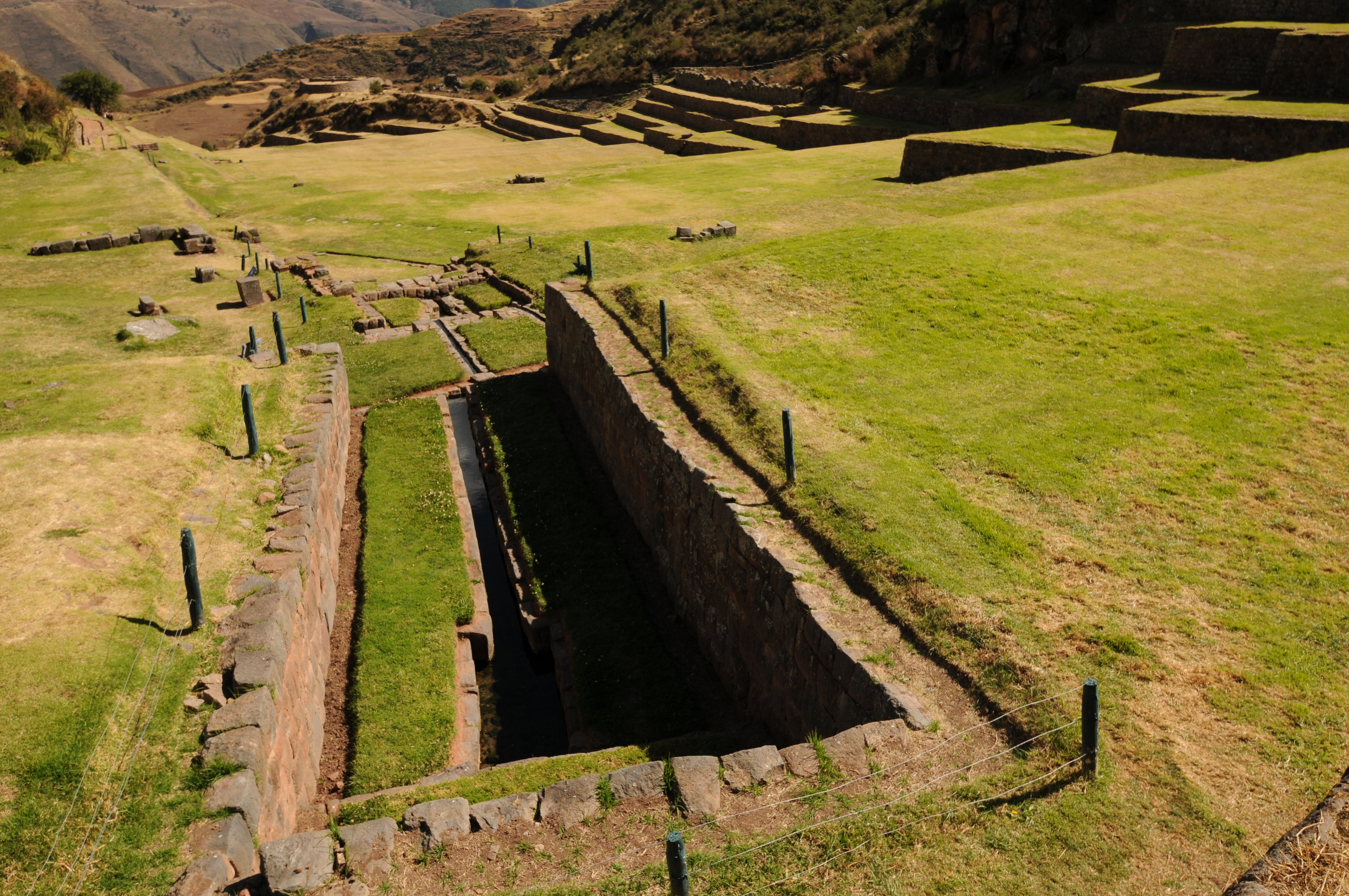

Spring with fountains below looking down the central terraces.

DSC_1288

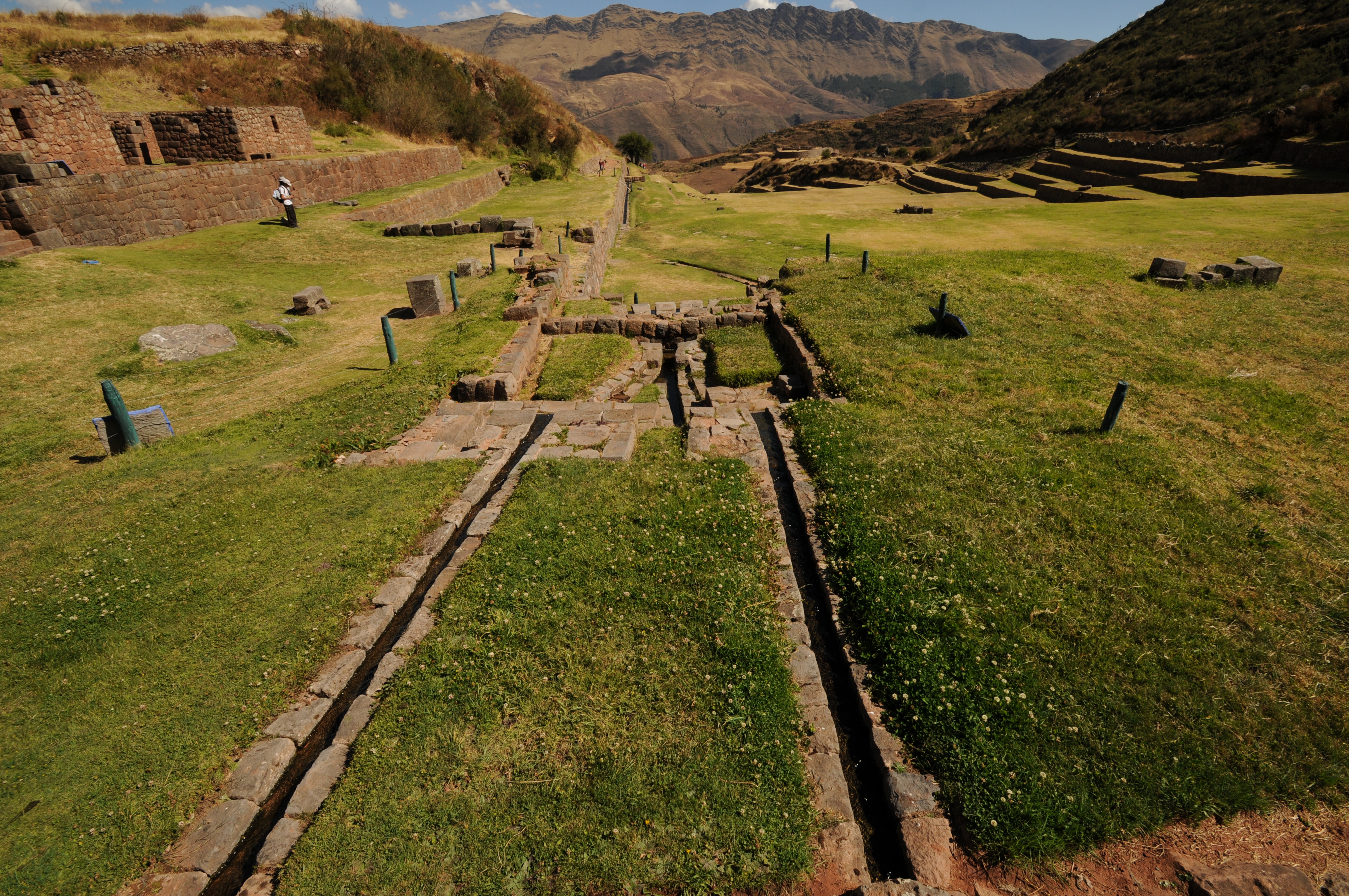

Channels below springs that flow to fountains

DSC_1287

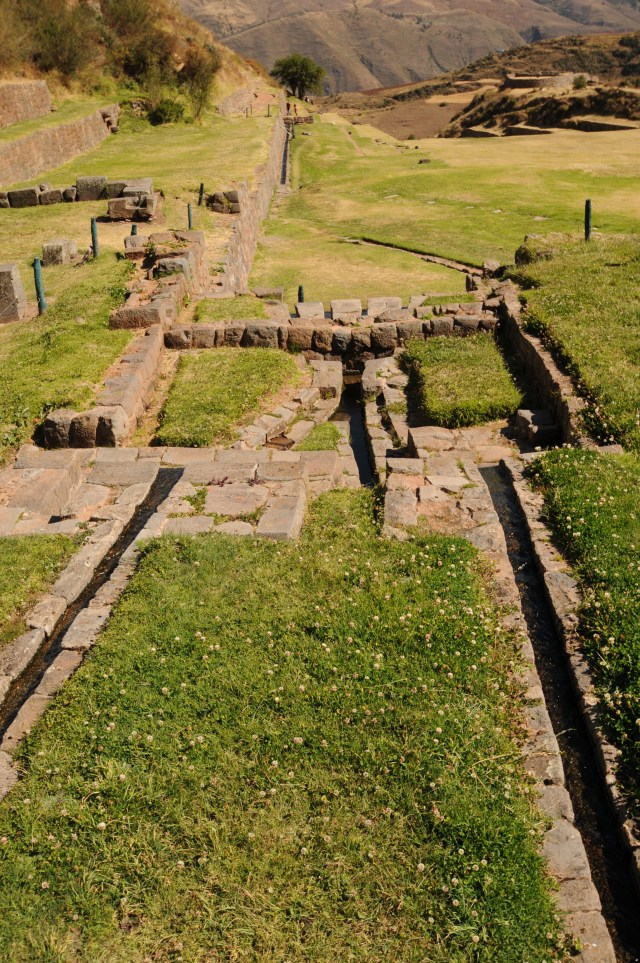

Above fountains showing diversion structure for fountains

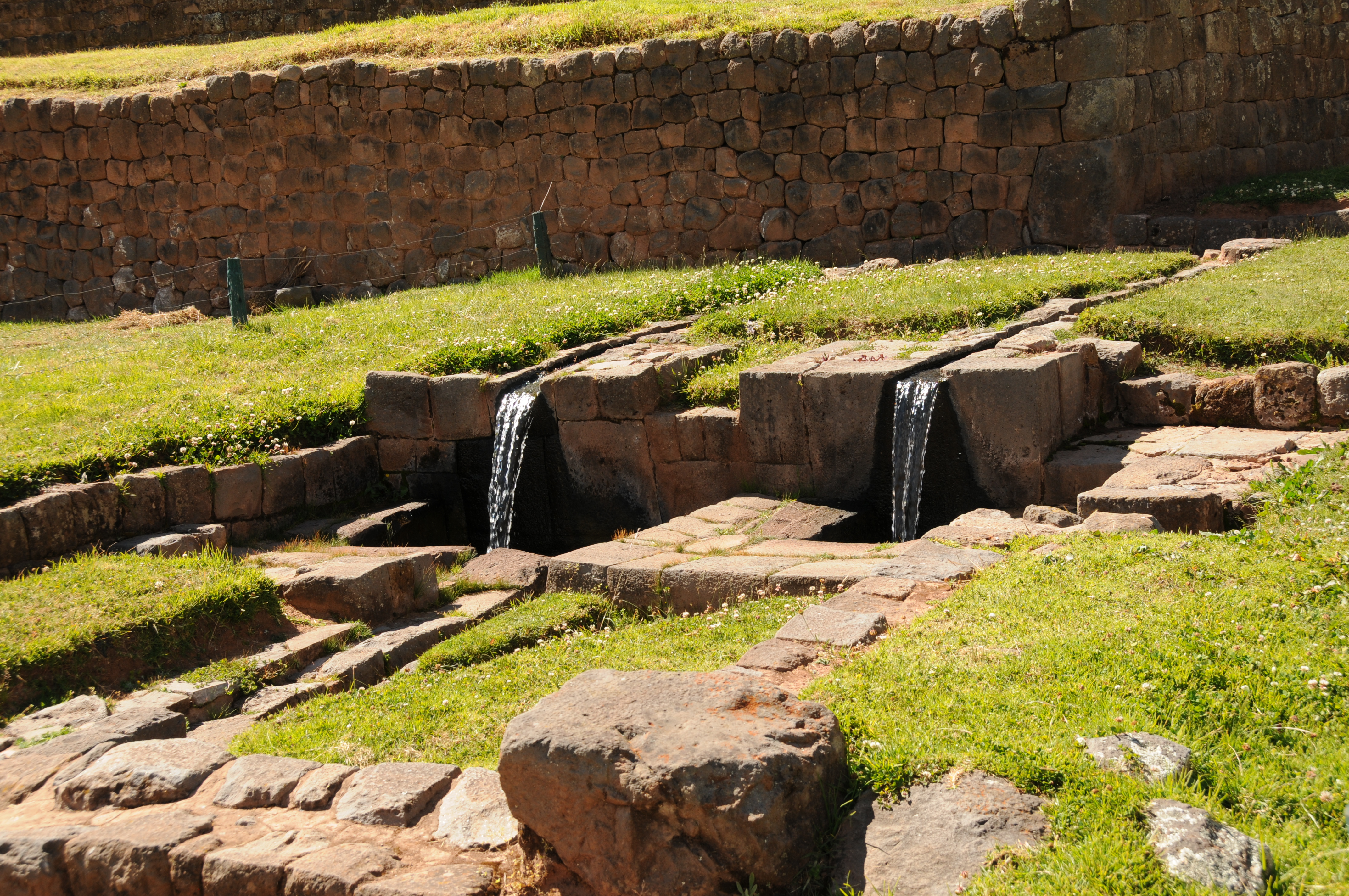

DSC_1237

Upper two fountains

DSC_1234

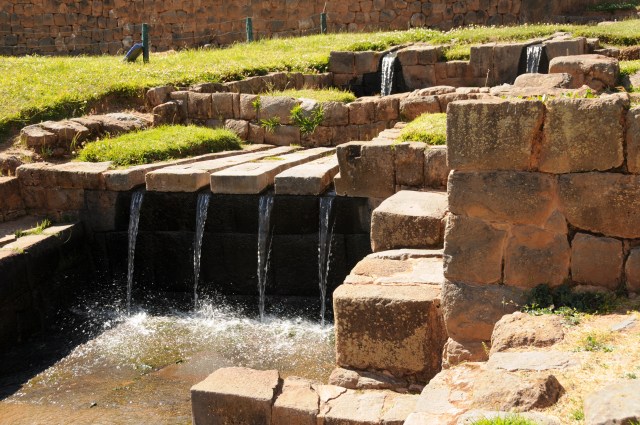

Lower fountains

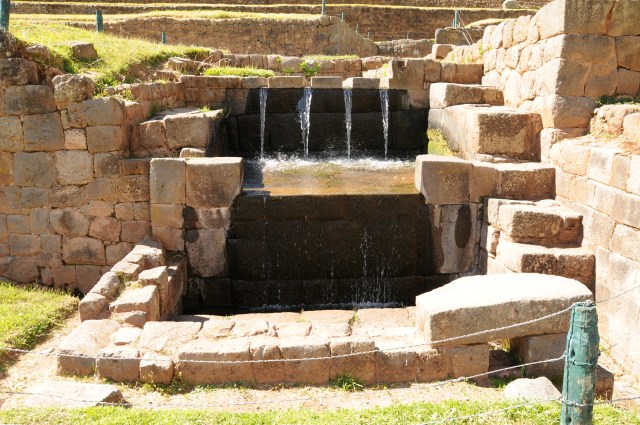

DSC_1215

View from below fountains

DSC_1255

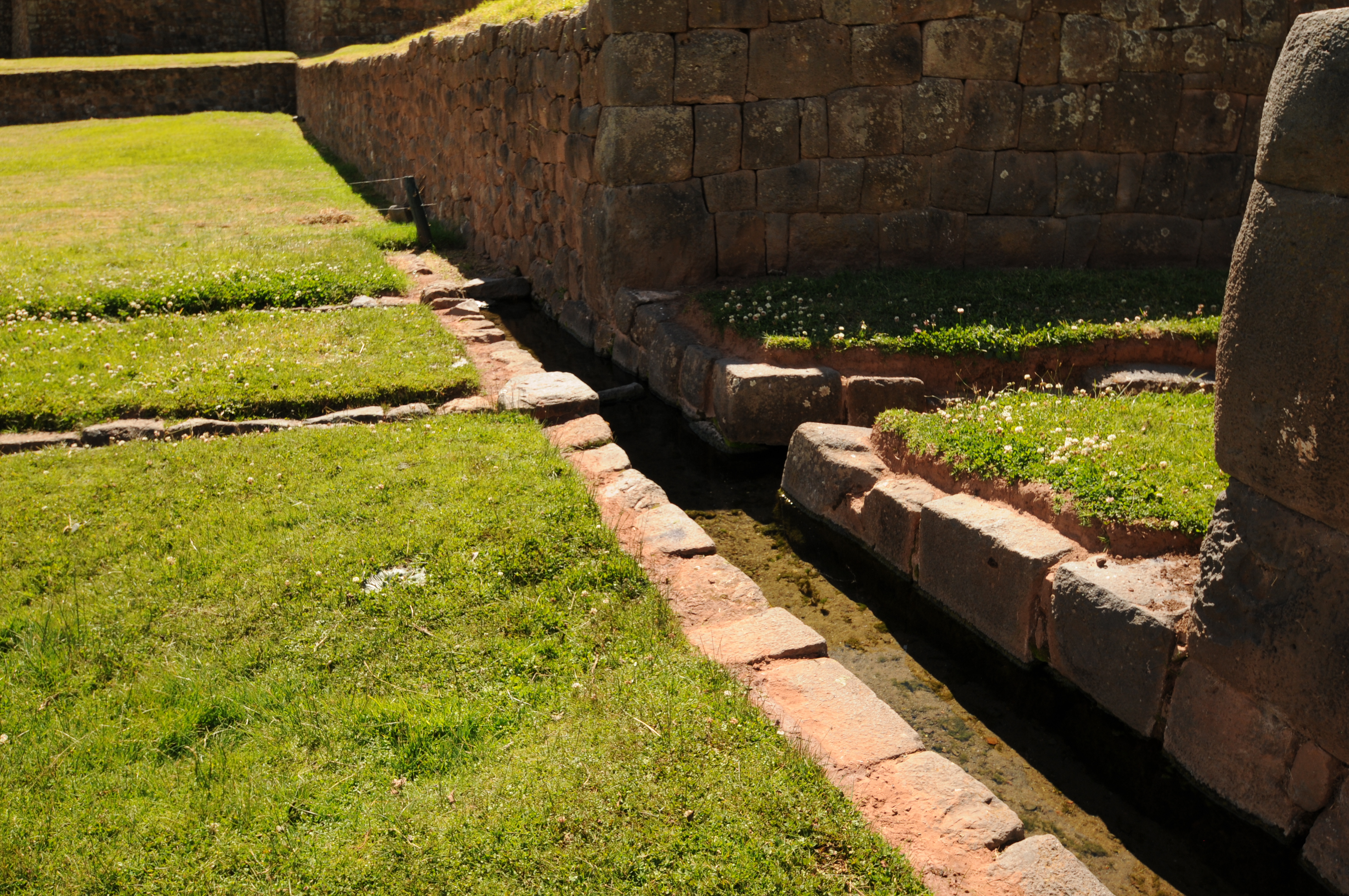

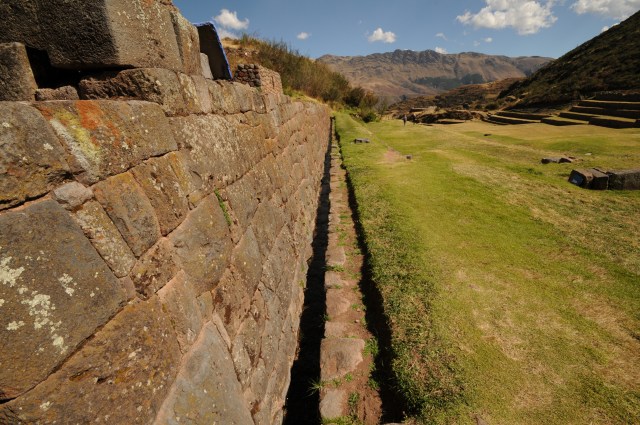

Channel along terraces

DSC_1266

Channels along terraces

Ceremonial Plaza of Tipon

DSC_1438

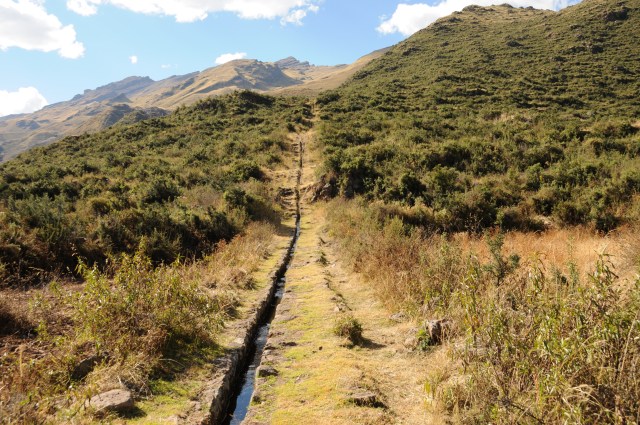

Principal aqueduct channel from the Rio Pukara for irrigation and domestic supplies

DSC_1440

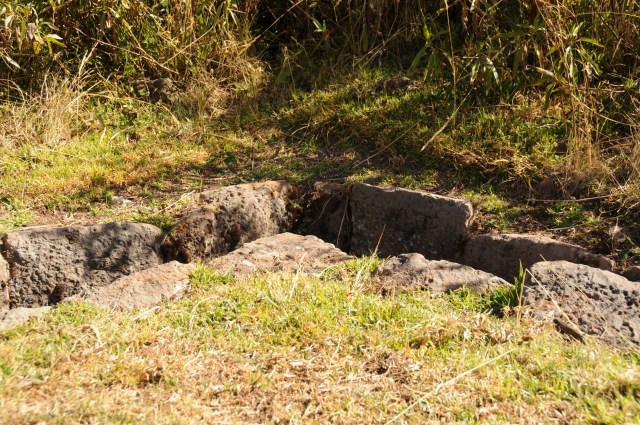

Bend in aqueduct channel from Rio Pukara.

DSC_1364

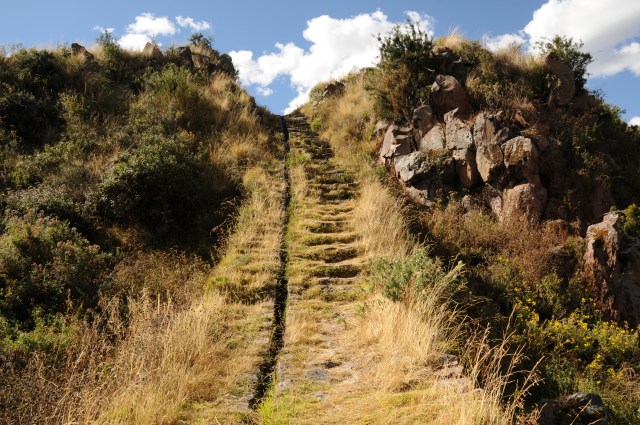

Principal aqueduct channel from the Rio Pukara

DSC_1408

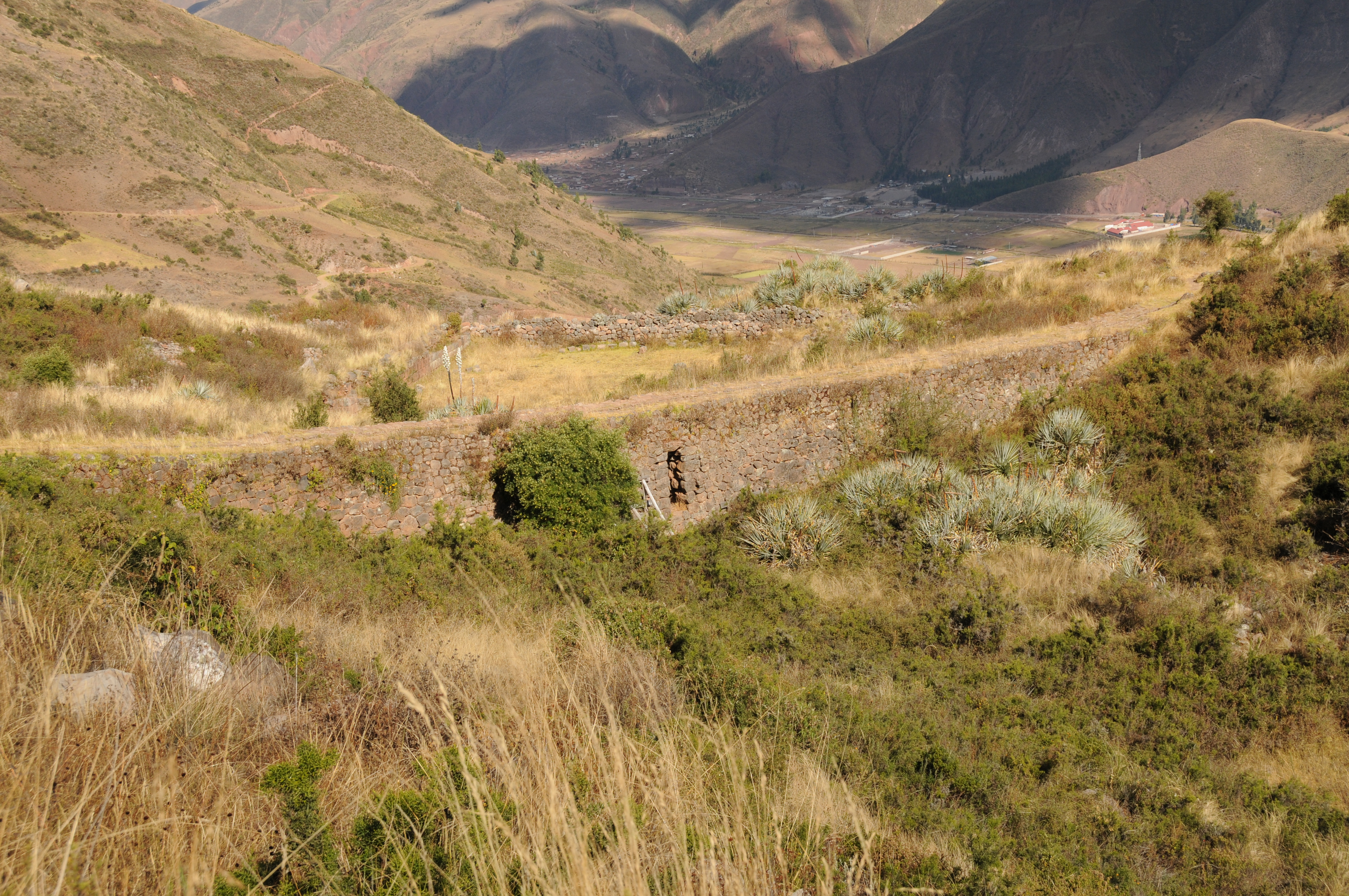

Aqueduct bridge of principal canal from the Rio Pukara

DSC_1563

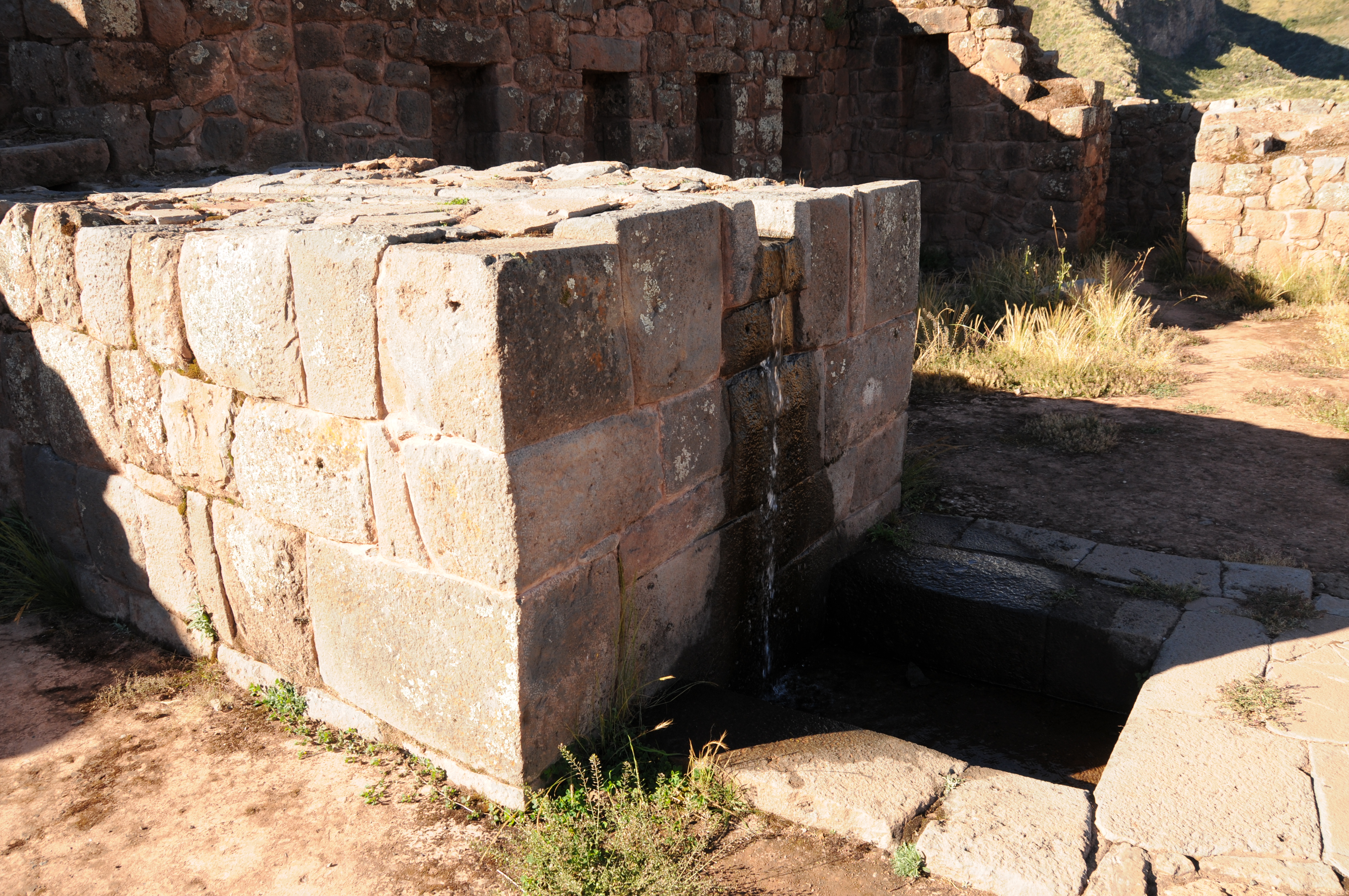

Fountain in Ceremonial Plaza

DSC_1578

Fountain in Ceremonial Plaza

DSC_1582

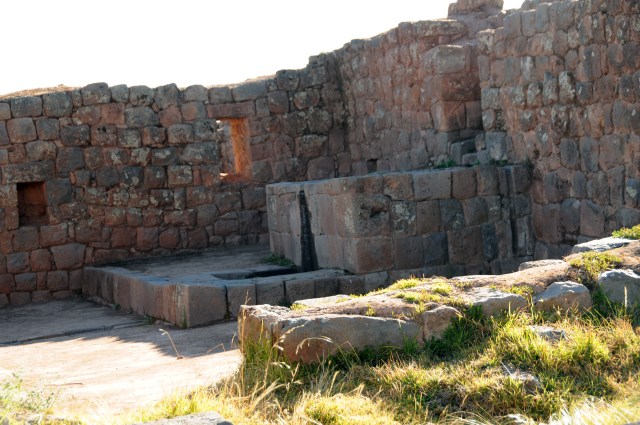

Fountain in Ceremonial Plaza

Tambo Machay

Tambo Machay (“resting place” or “resting cave”) and Puca Pucara (“red fortress) are located within the walking distance from Cuzco and within 500 meters from each other, separated by the main road from Cuzco to Pisac. Comparing to Machu Picchu, Pisac and Tipon they represent water use technologies on a much smaller scale. Both, Tambo Machay and Puca Pucara have stone fountains with dual channels.

DSC_0662 changed

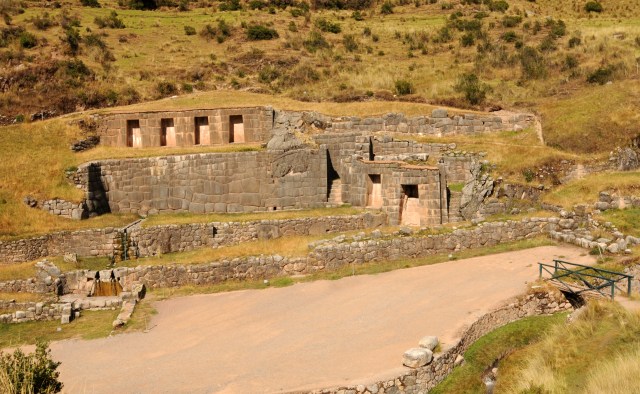

Fountain area at Tambo Machay.

DSC_0653

Close-up view of the fountain at Tambo Machay with two channels to produce two water fountains.  Flowing water and duality were both important elements in Inca beliefs.  Also shows channel below fountain.

DSC_0254

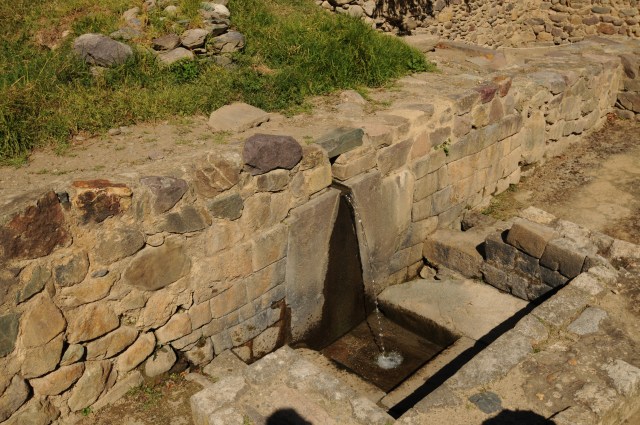

Another fountain at Tambo Machay.

Olantaytambo

DSC_9931

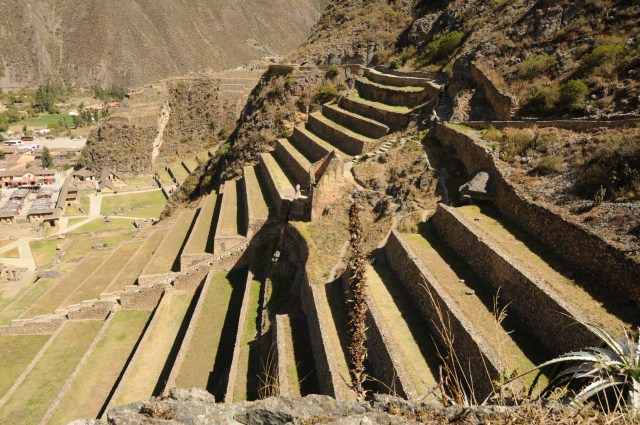

Agricultural terraces

DSC_9802

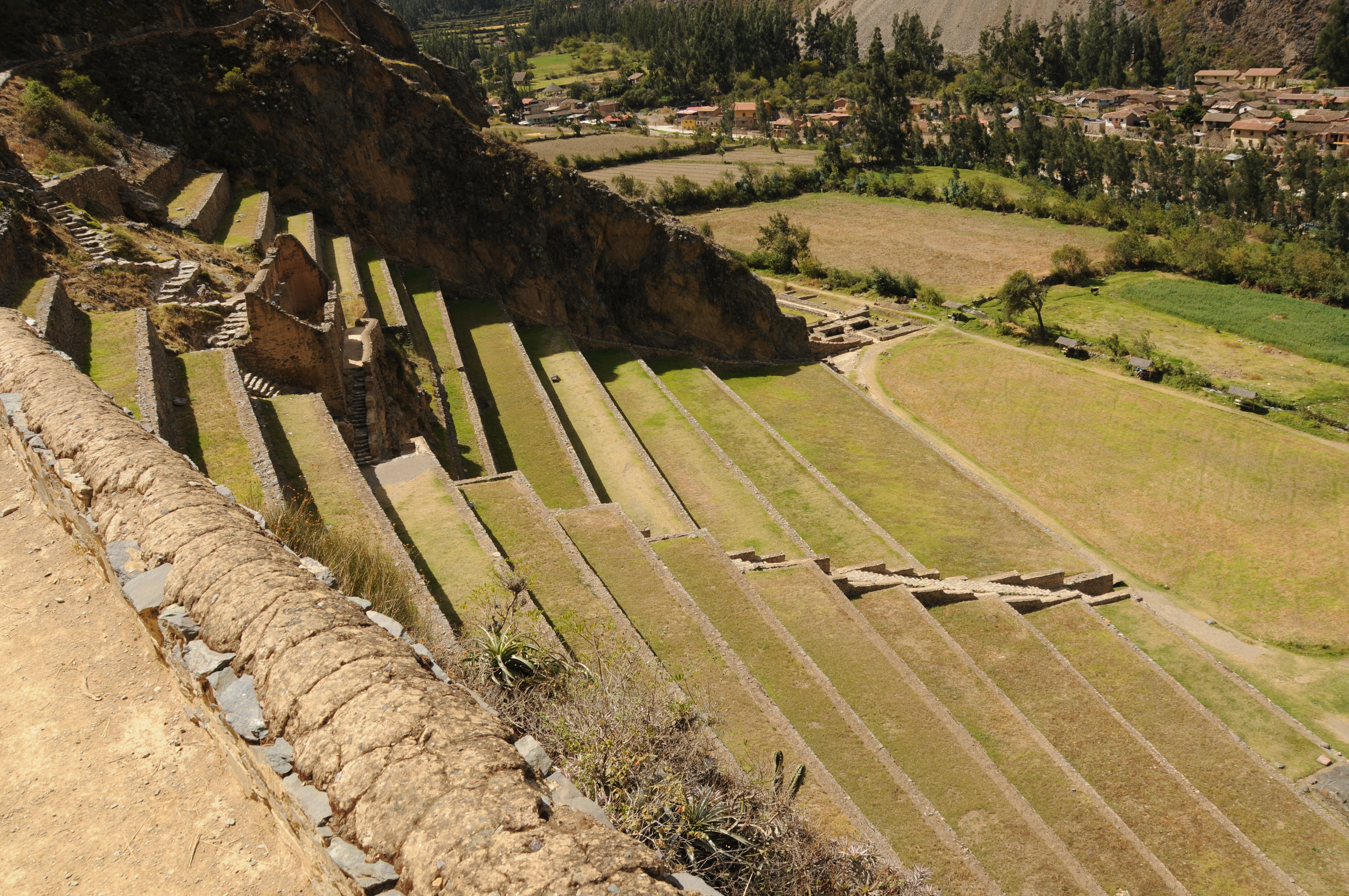

Agricultural terrace with fountains in background

DSC_9852

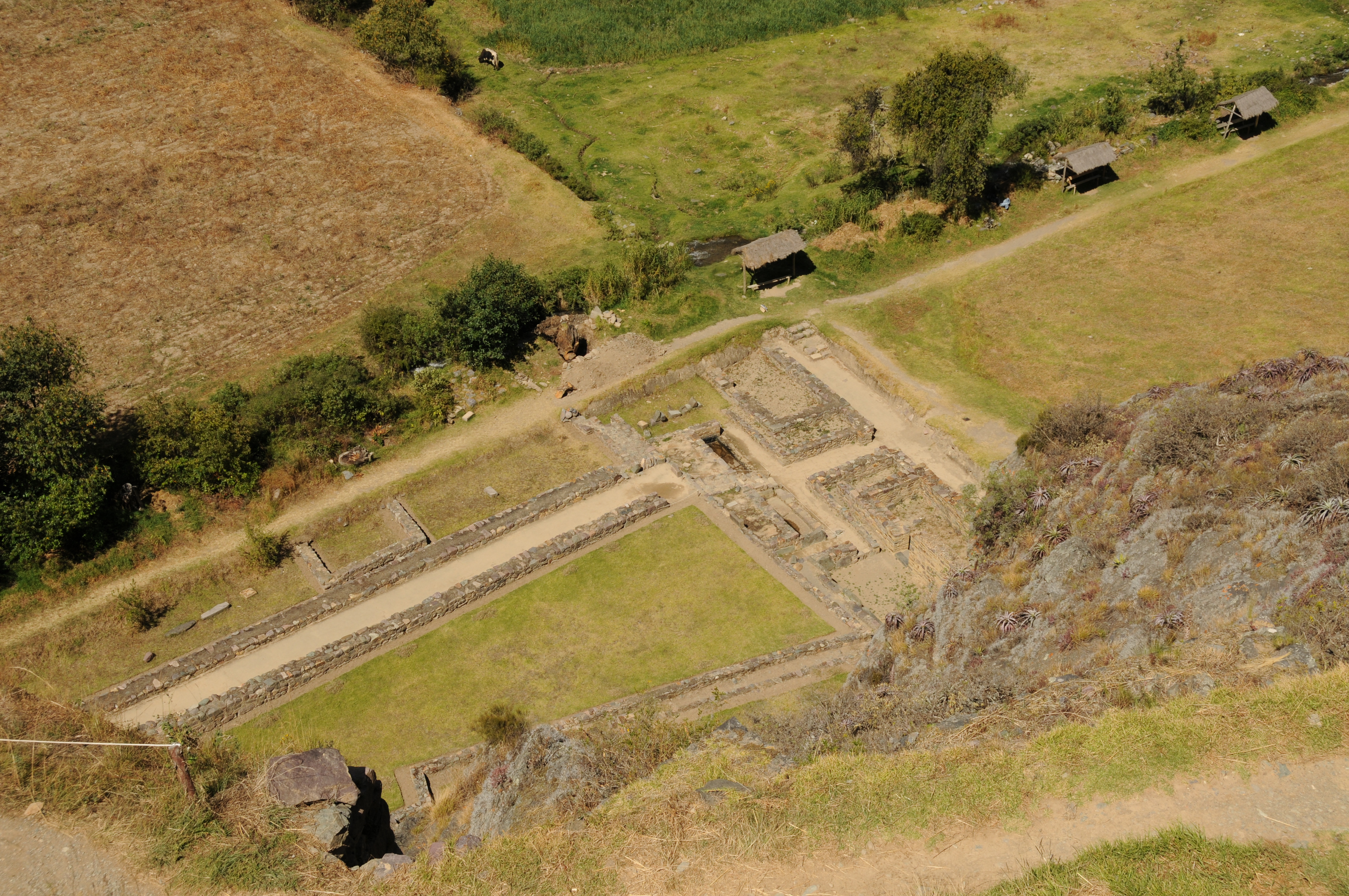

Location of fountains

DSC_9984

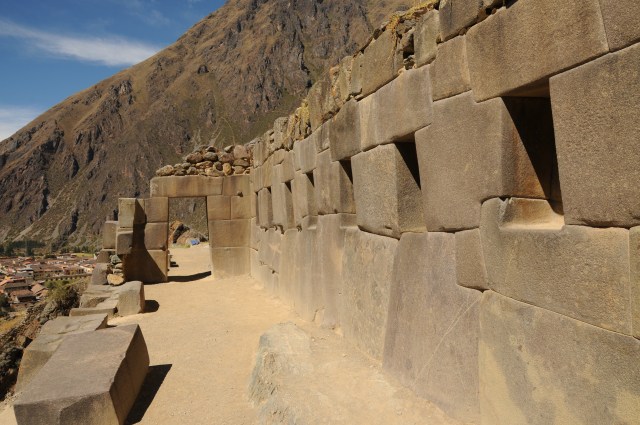

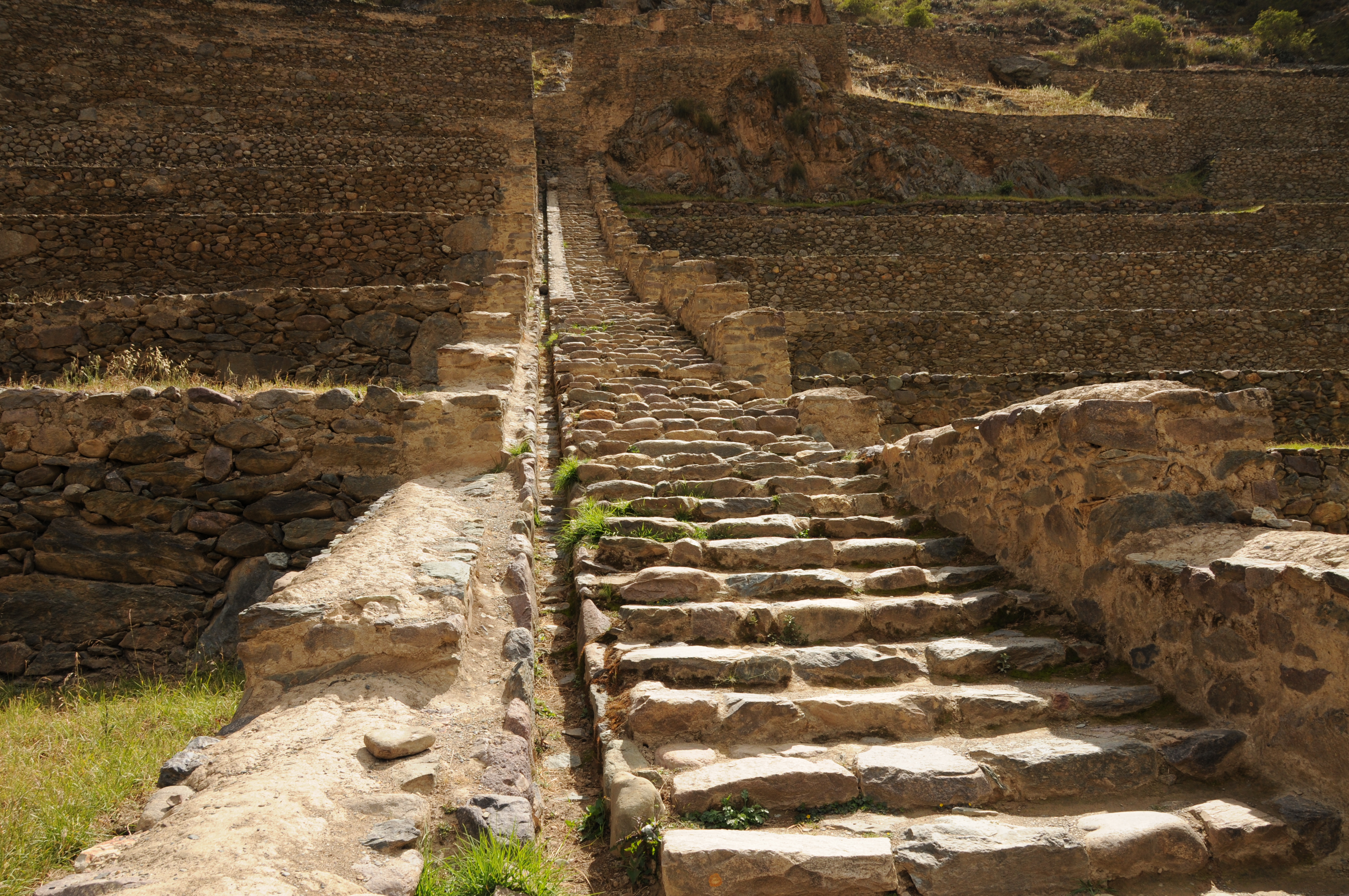

Drainage channel along steep steps

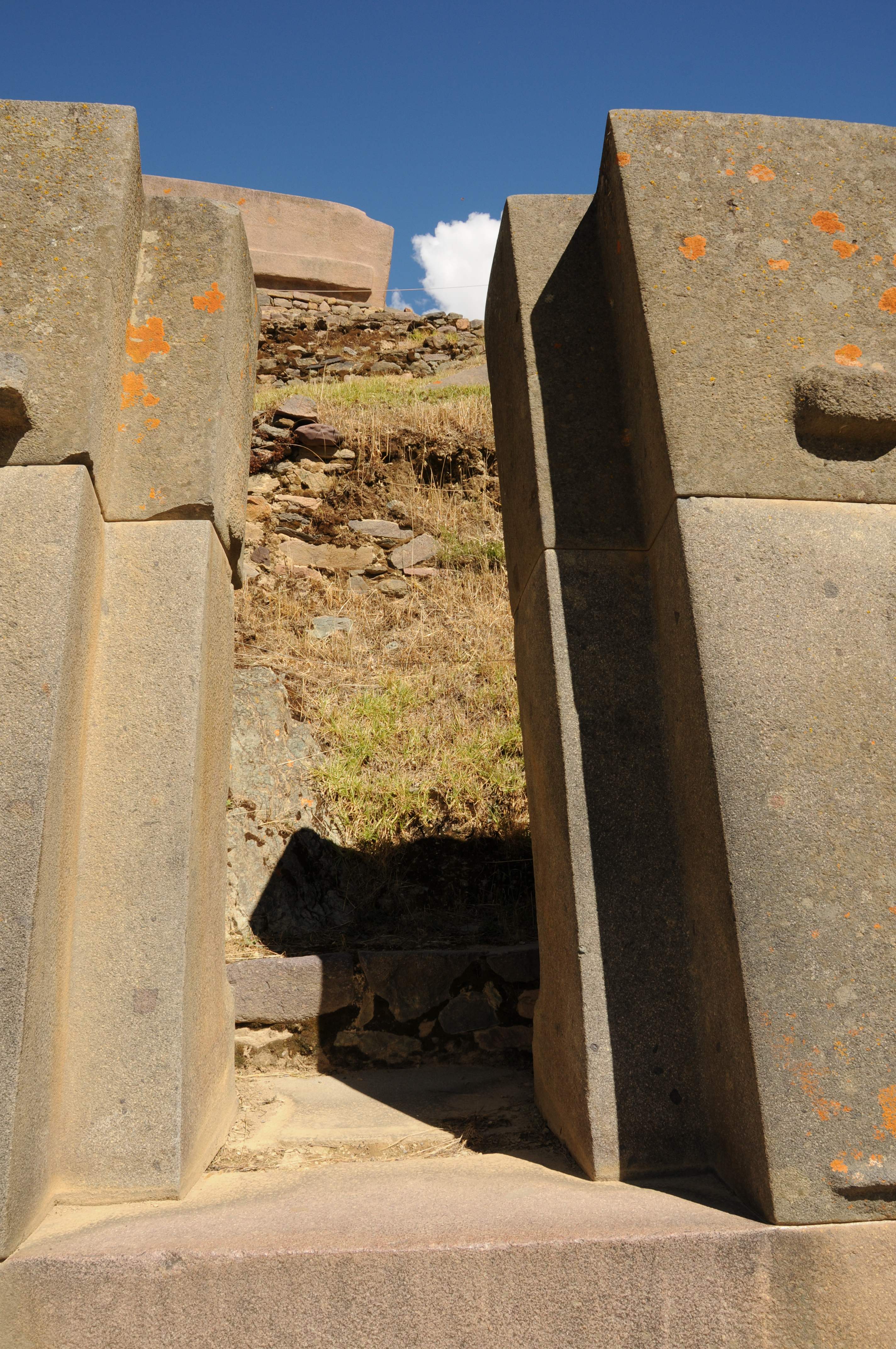

DSC_9633

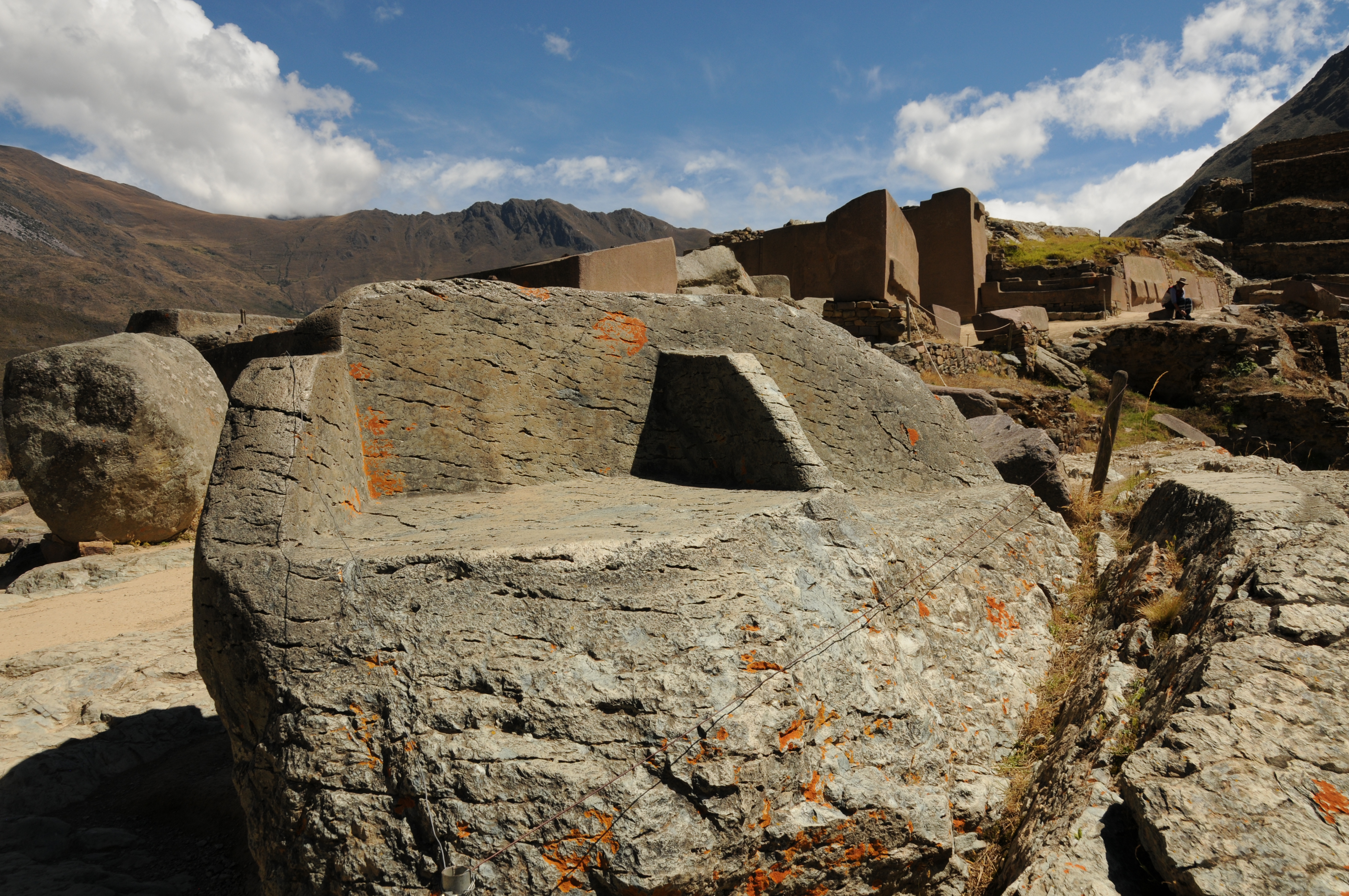

DSC_9627

DSC_9648

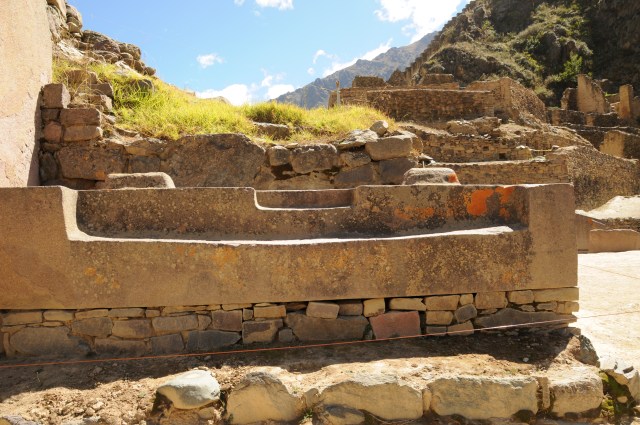

DSC_9663

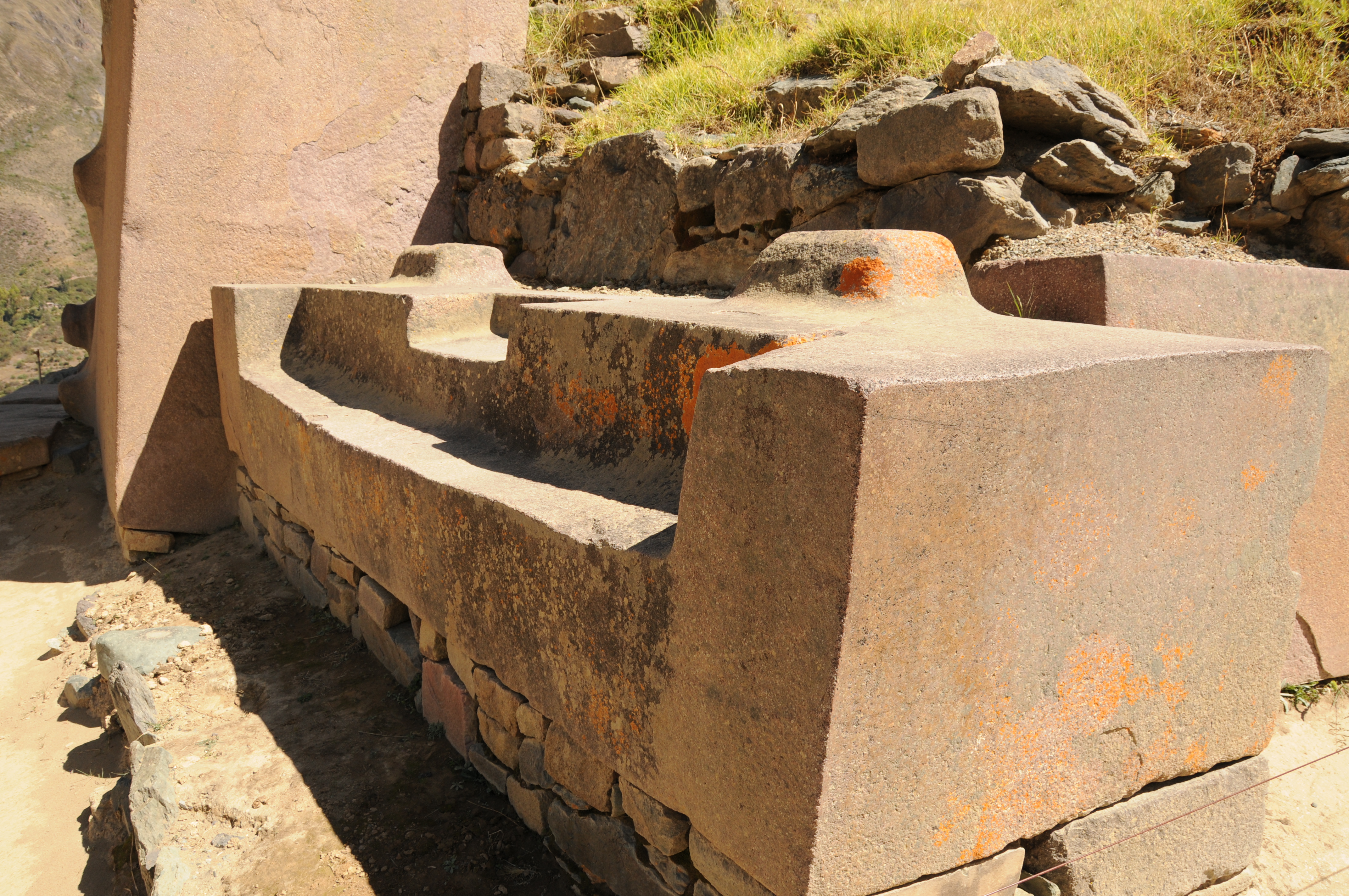

DSC_9666

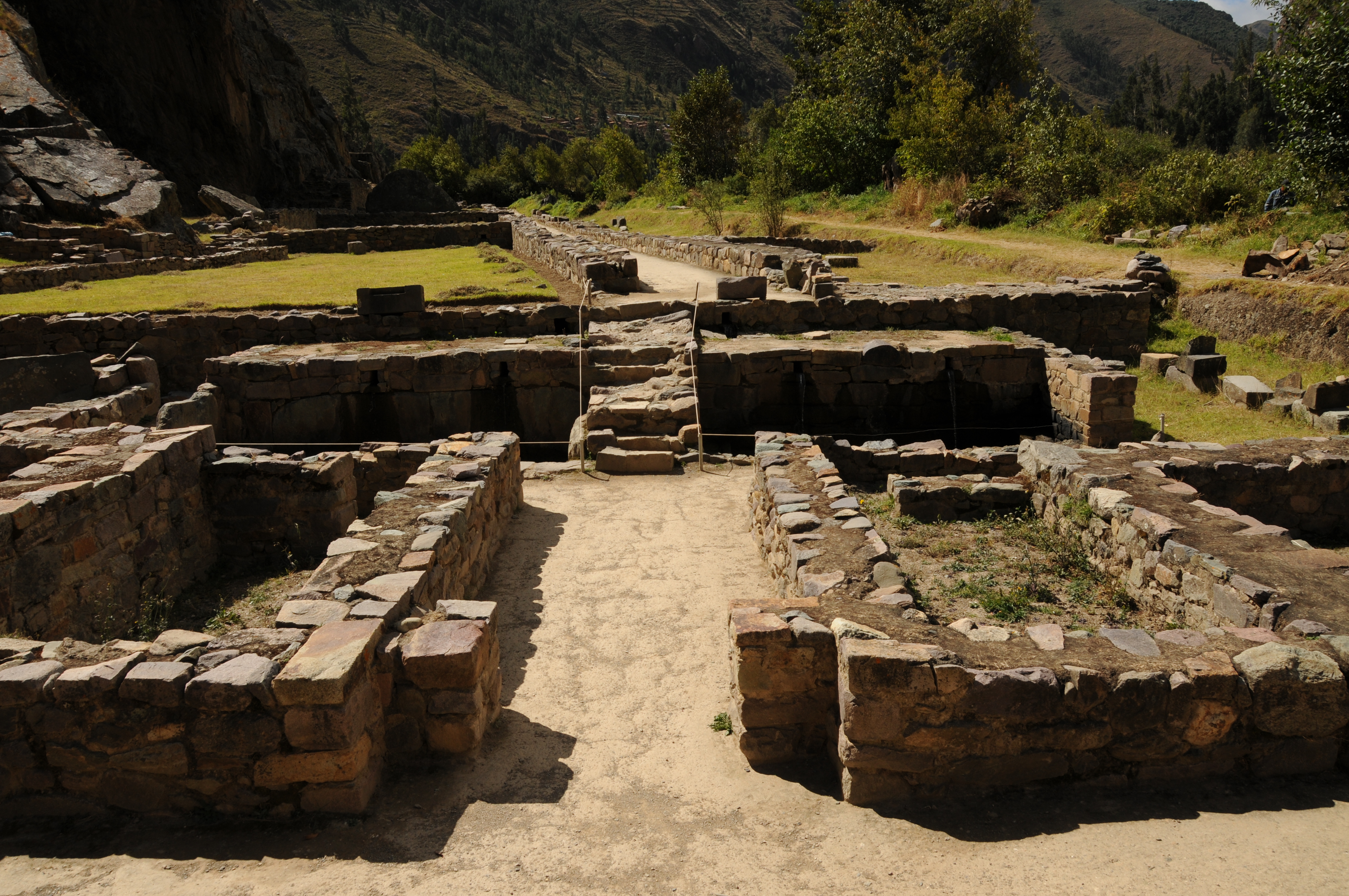

DSC_0012

Fountains

DSC_0027

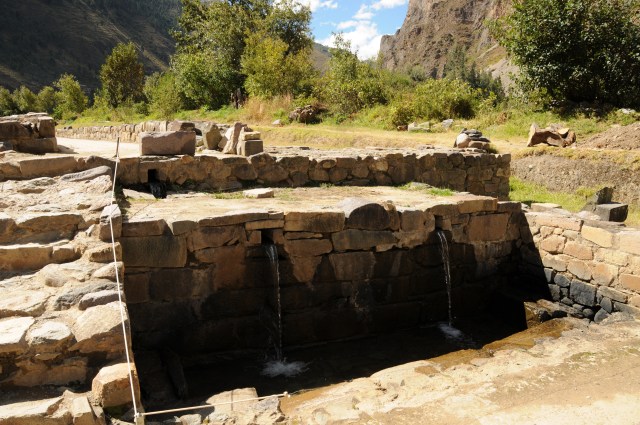

Close up of two of the fountains

DSC_0008

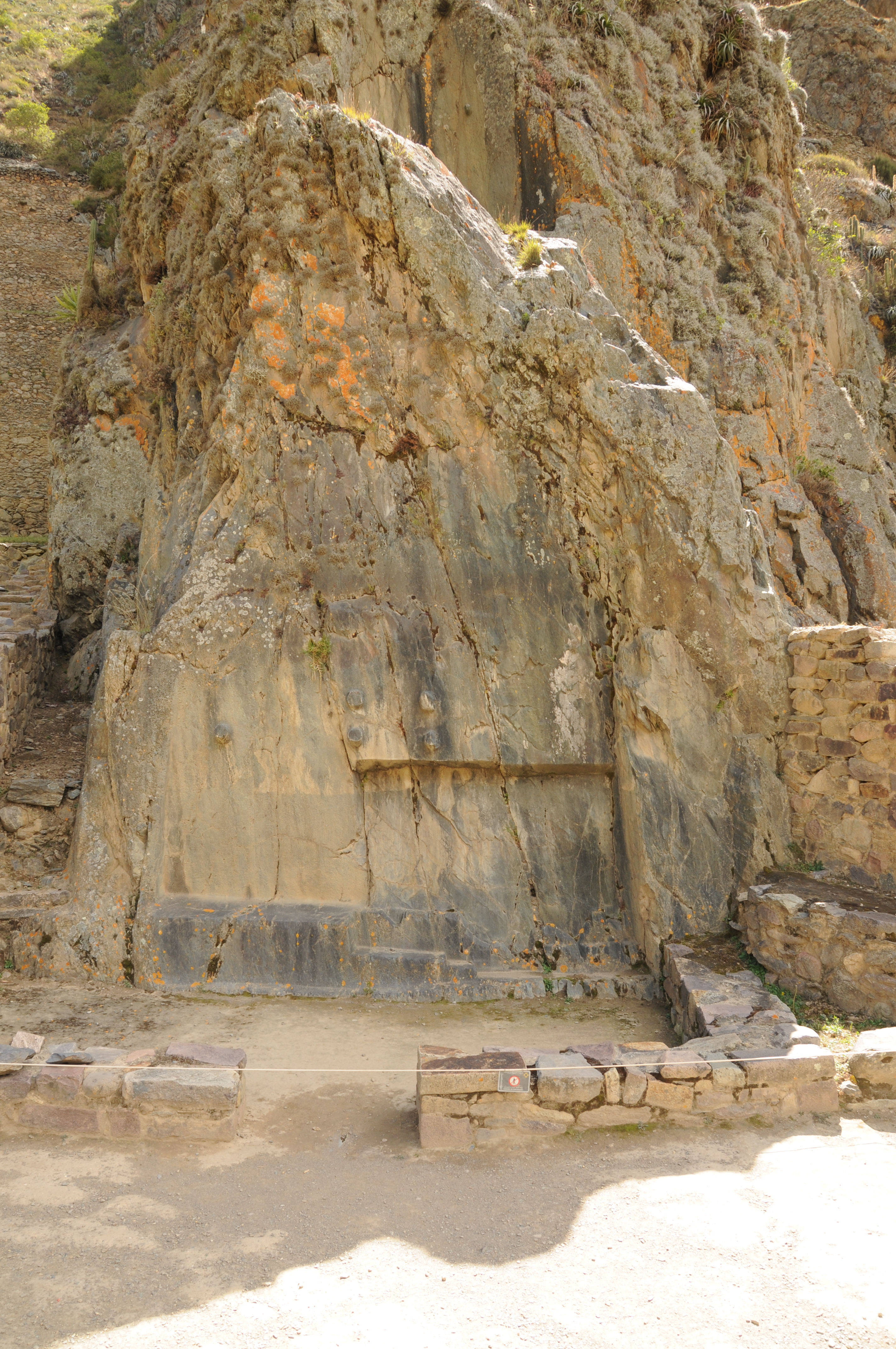

Inticchuariana observatory used to determine summer solstice.  Place where one sees and understands the sun.

DSC_0127

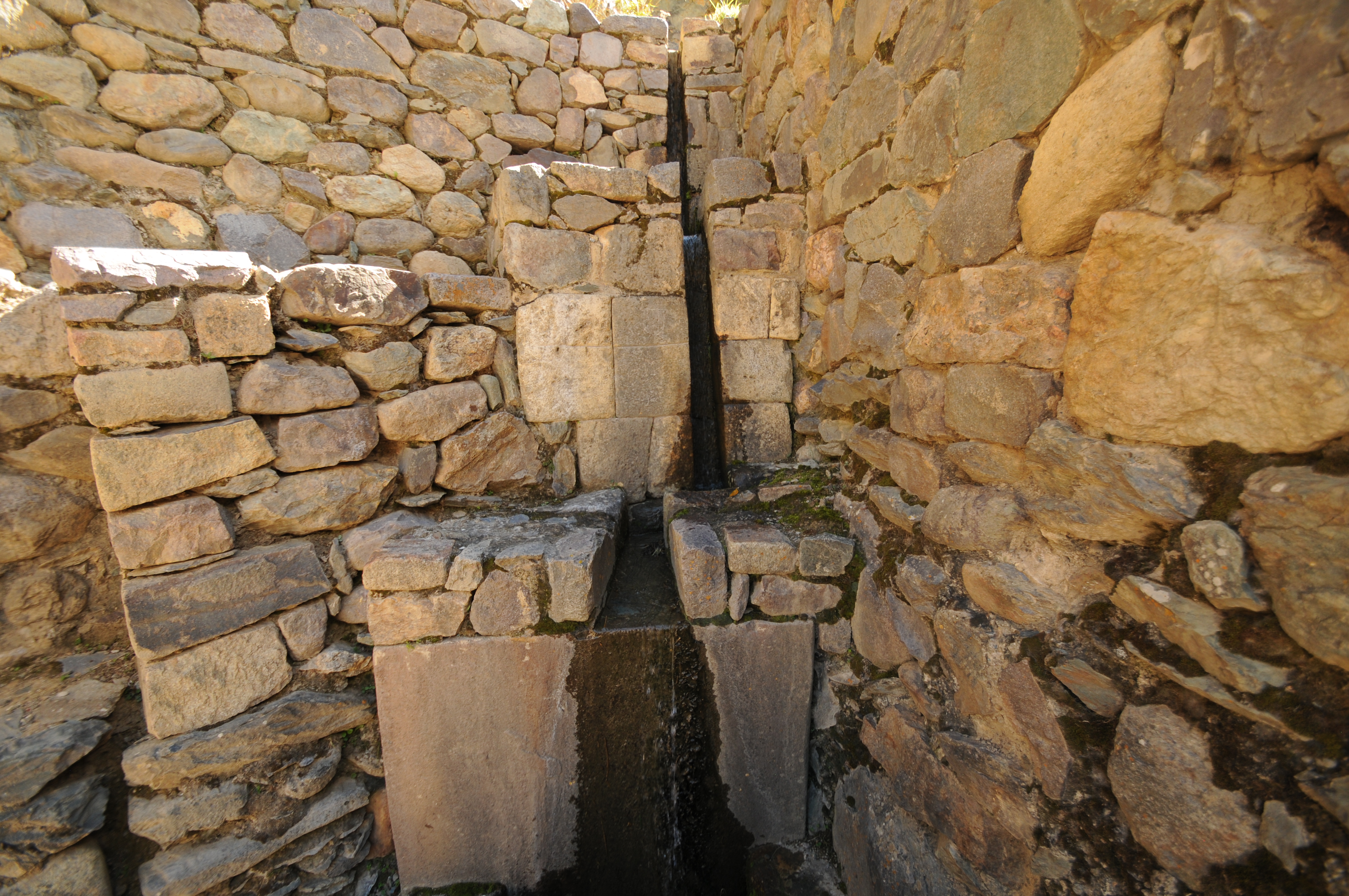

DSC_0182

Fountains and terraces

DSC_0145

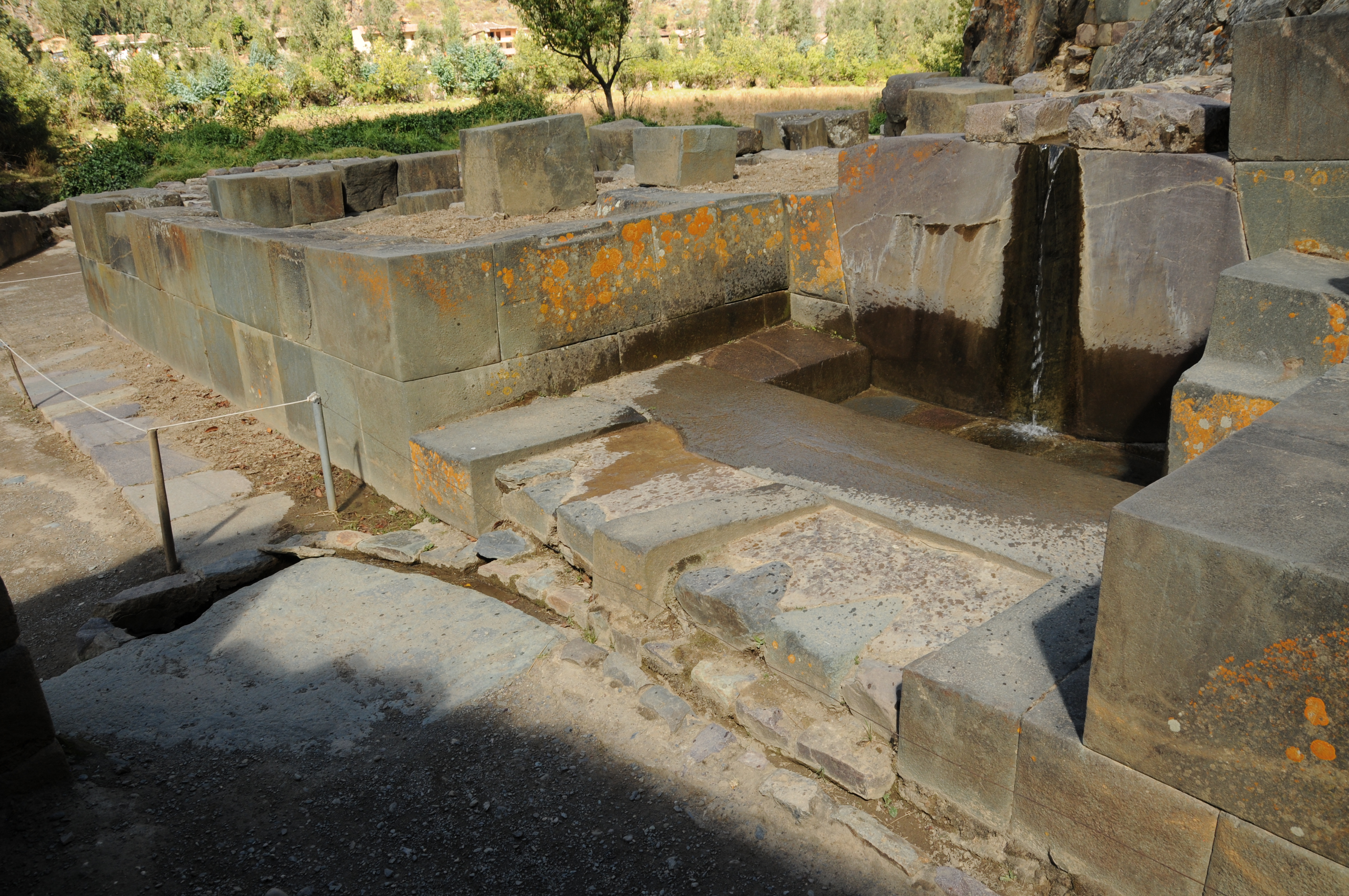

Fountain

DSC_0110

Fountain

DSC_9801

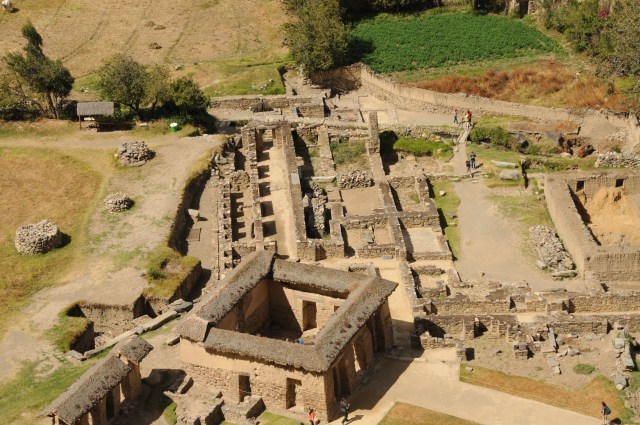

Building is the enclosure for the worship of water.

DSC_0295

Fountain inside building



DSC_0236

DSC_9891

Puca Pucara

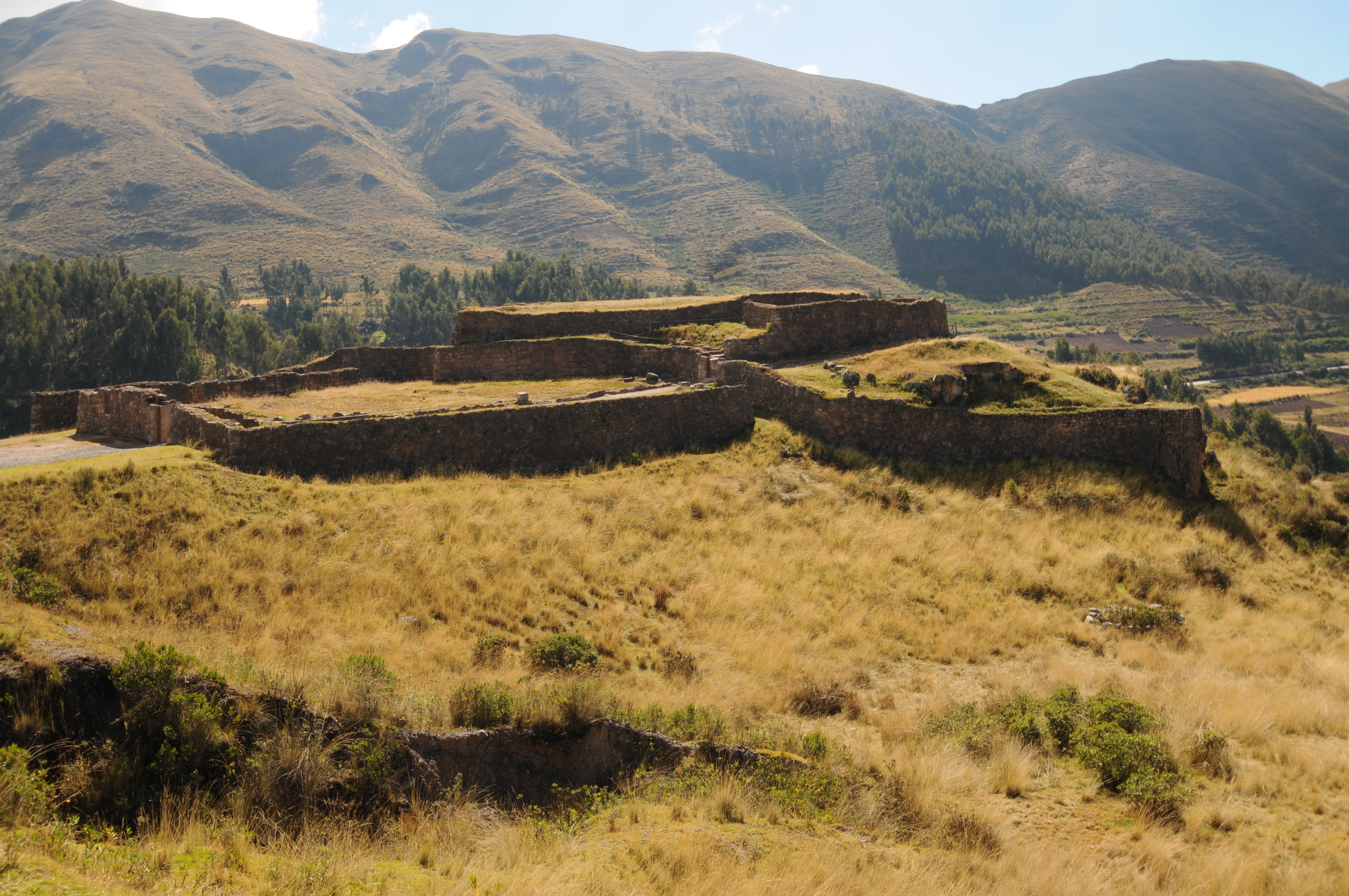

DSC_0729

DSC_0824

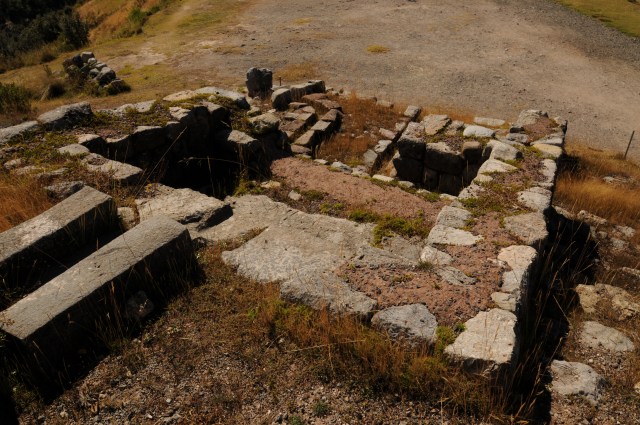

Fountain showing two channels leading from fountain.

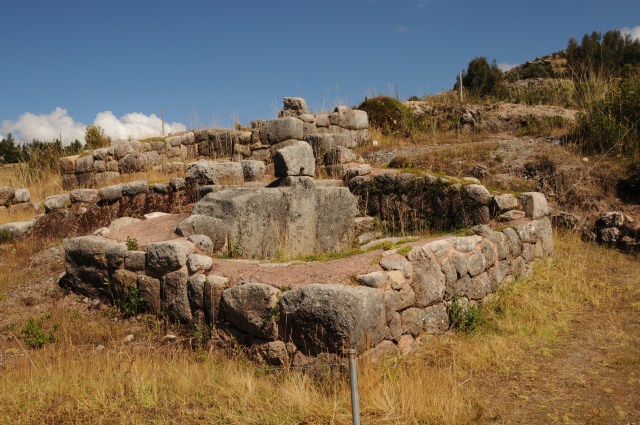

DSC_0801

Sacsayhuaman

DSC_8670

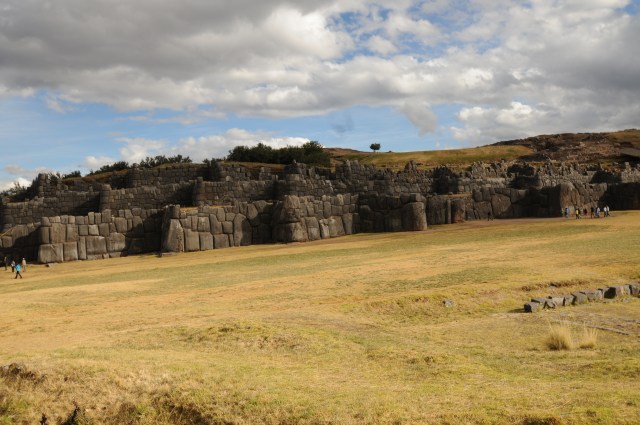

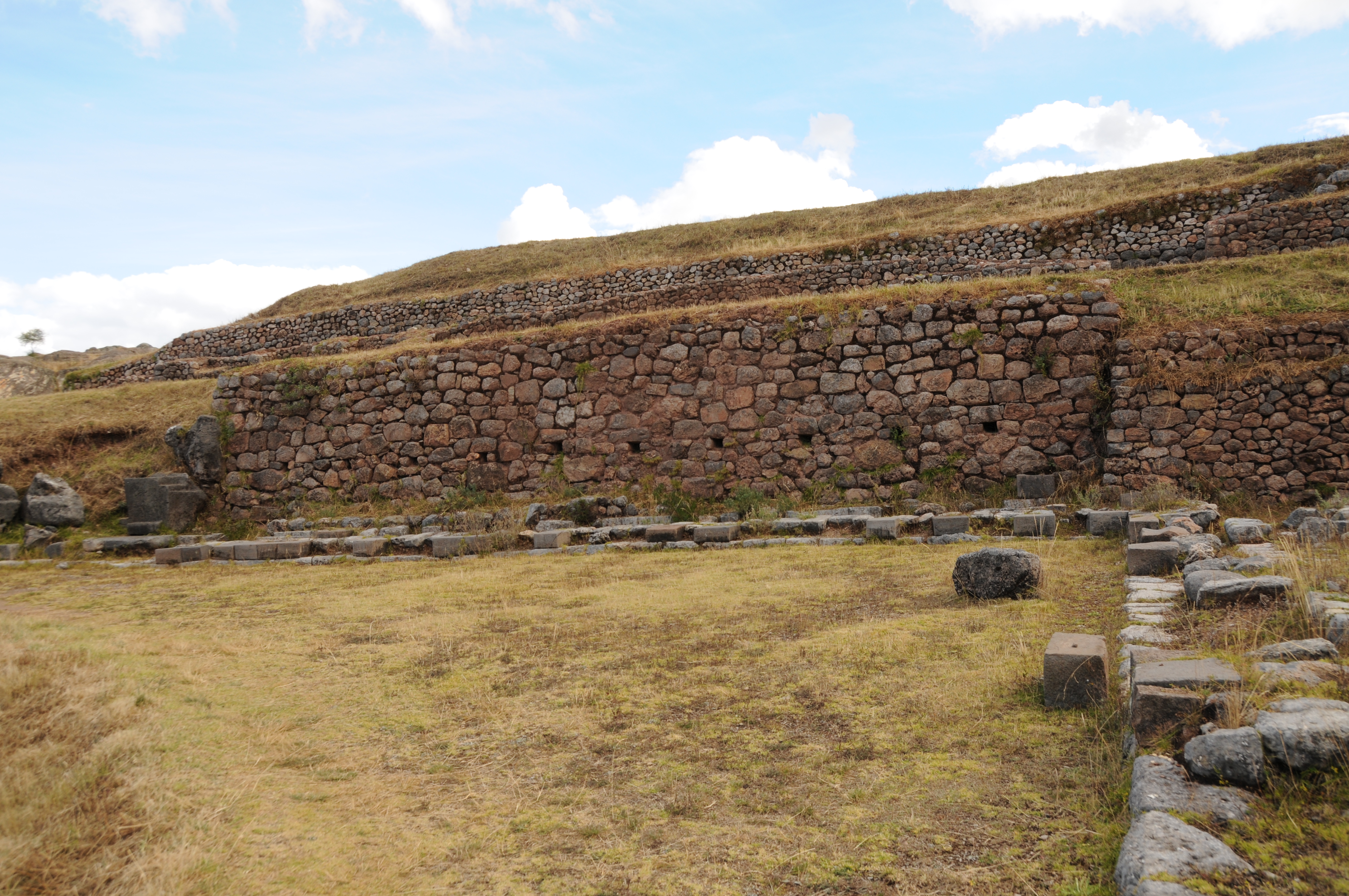

Fountain

DSC_8692

Fountain

DSC_8806

Qenqo

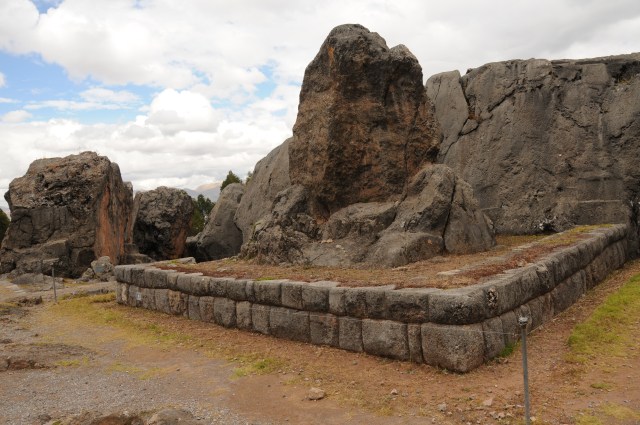

DSC_8284

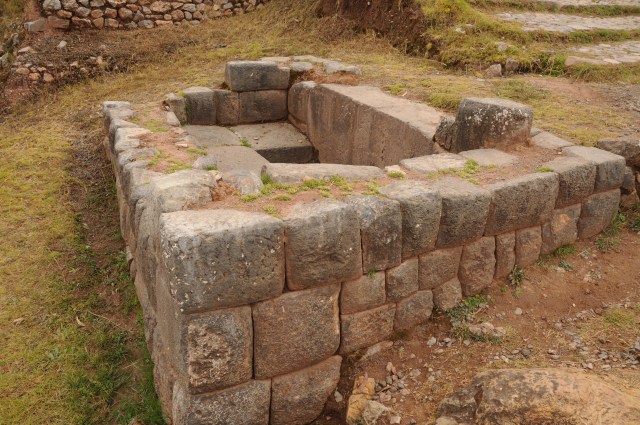

DSC_8274

DSC_8270

DSC_8506

DSC_8385

Moray

DSC_0386

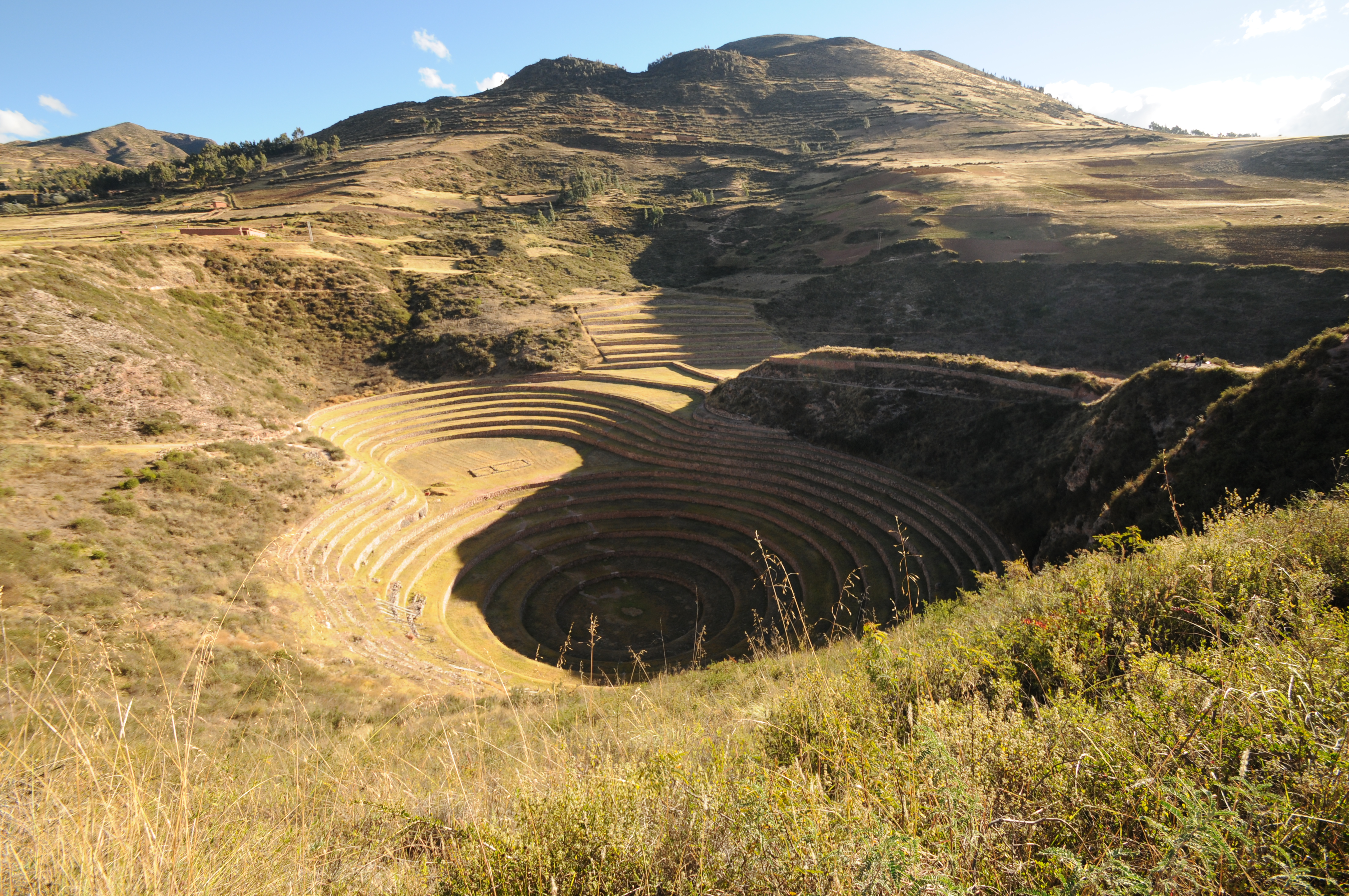

Moray is one of the most interesting of the agricultural areas as the Inca took advantage natural depressions constructing concentric terraces in the depressions.  Above is a succession of ceremonial fountains in the largest of three terrace complexes.  Moray in essence was an environmental/agricultural laboratory.

DSC_0327

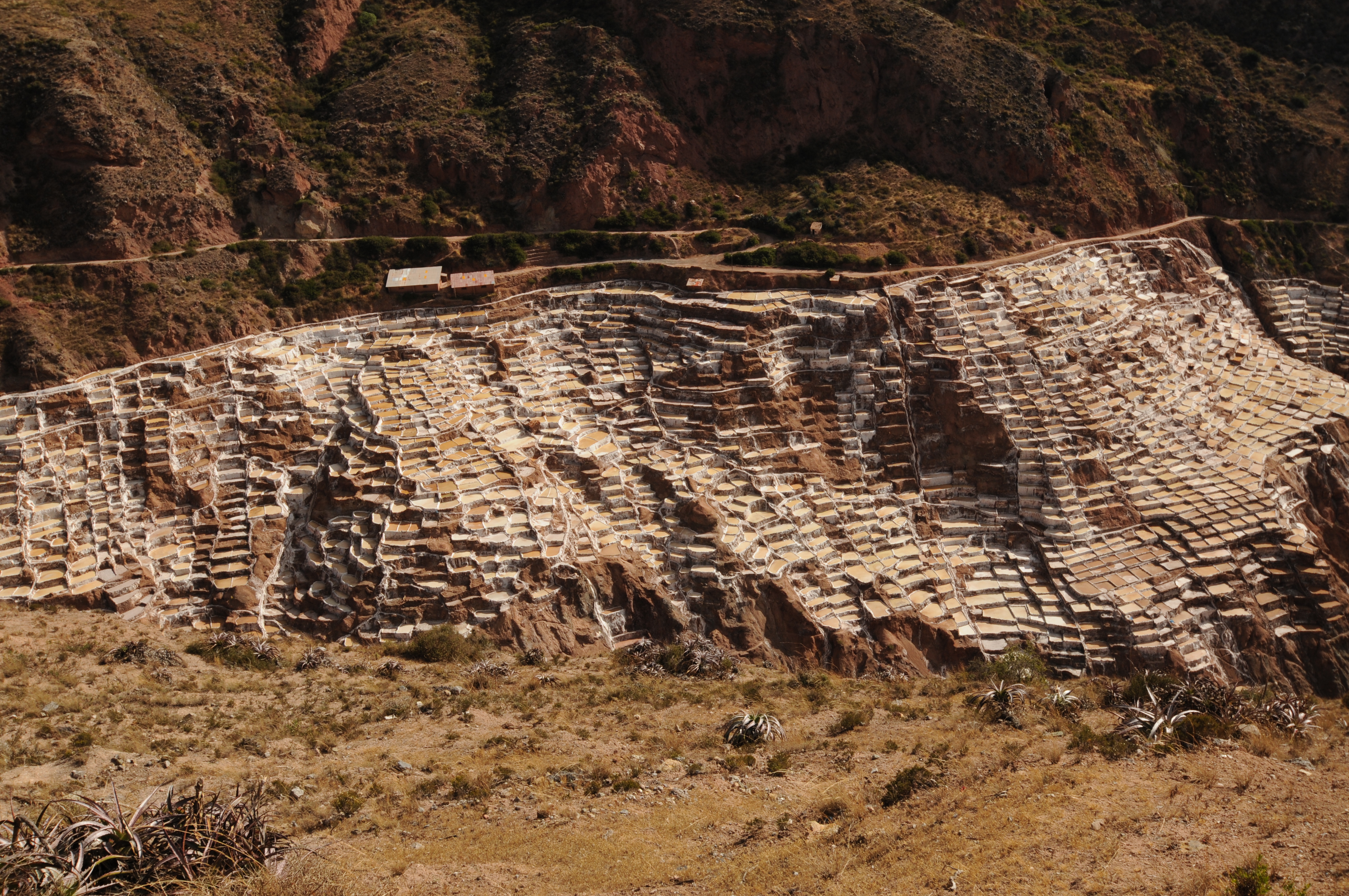

Salt mines of Maras

DSC_0333

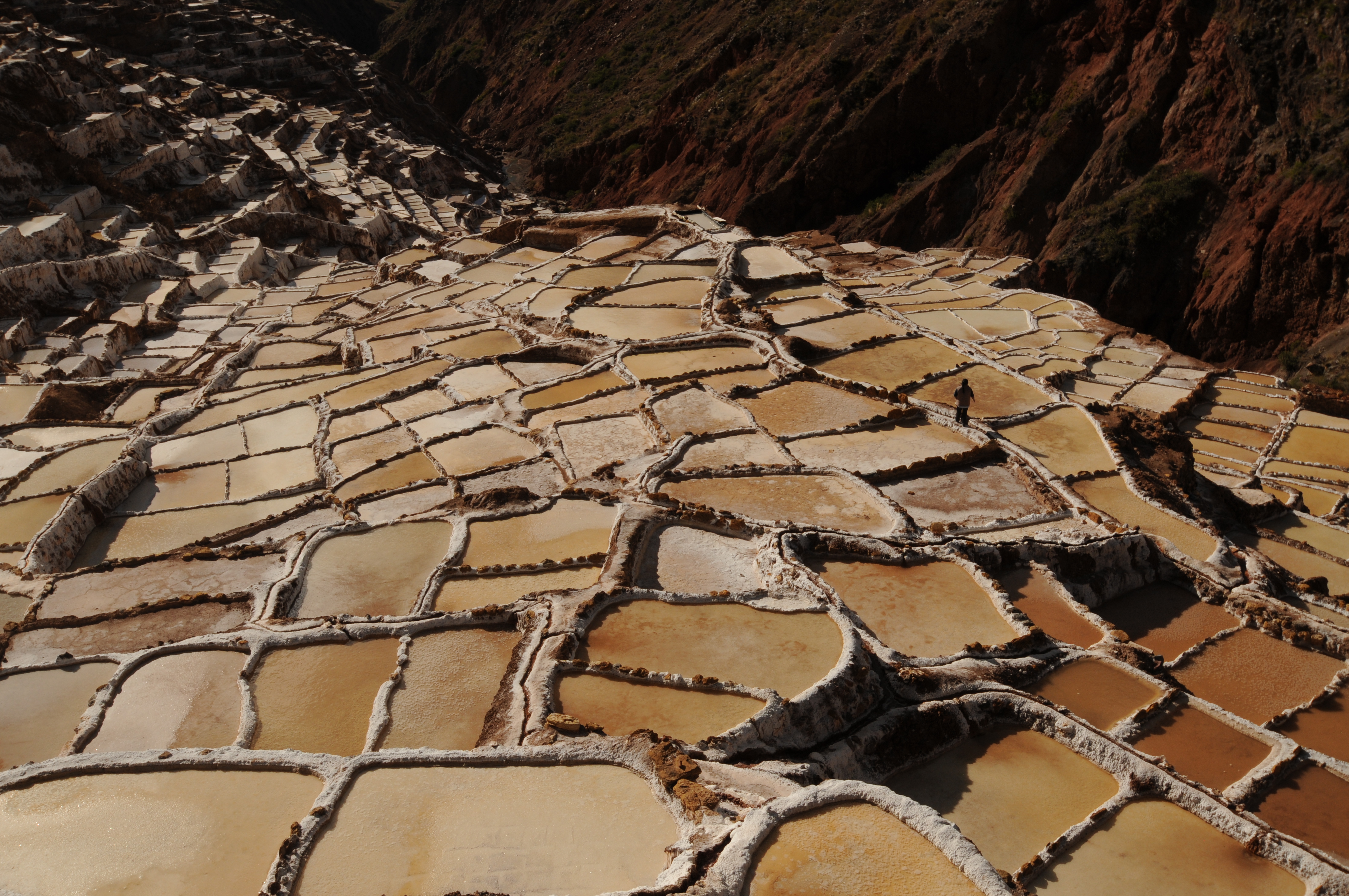

Salt mines of Maras

Chinchero

DSC_0433

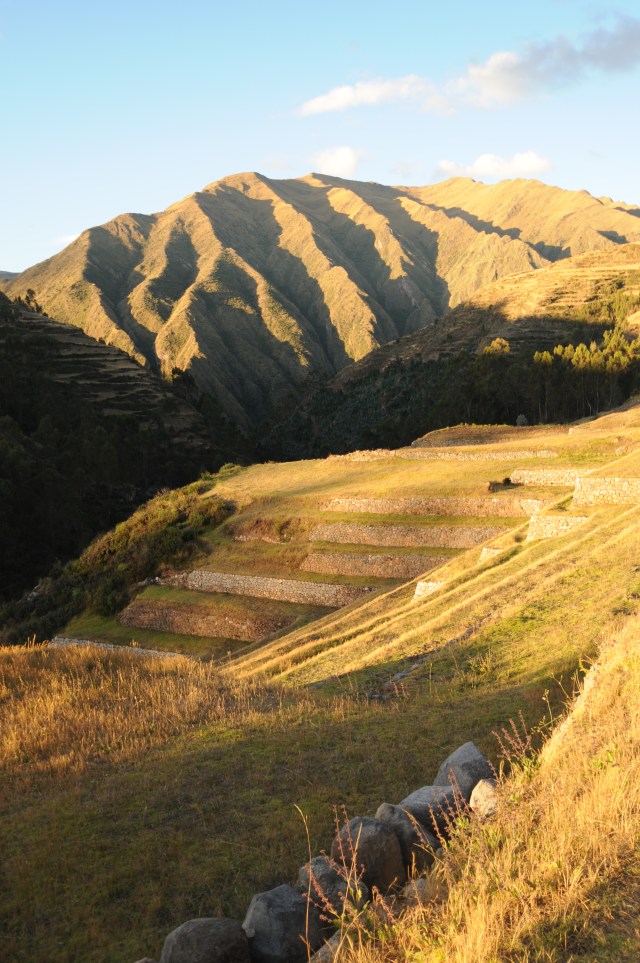

DSC_0548

DSC_0467

DSC_0463

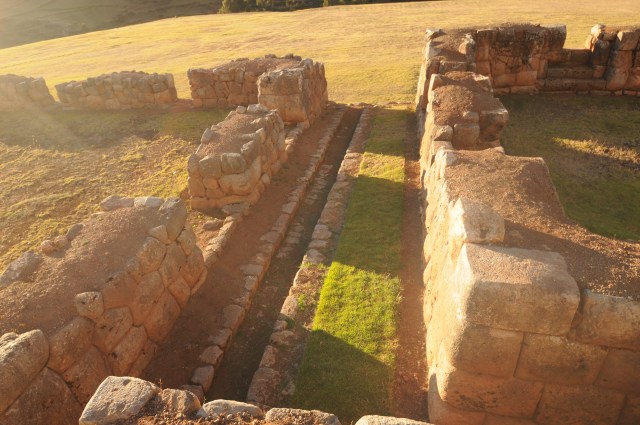

DSC_0462

DSC_0547

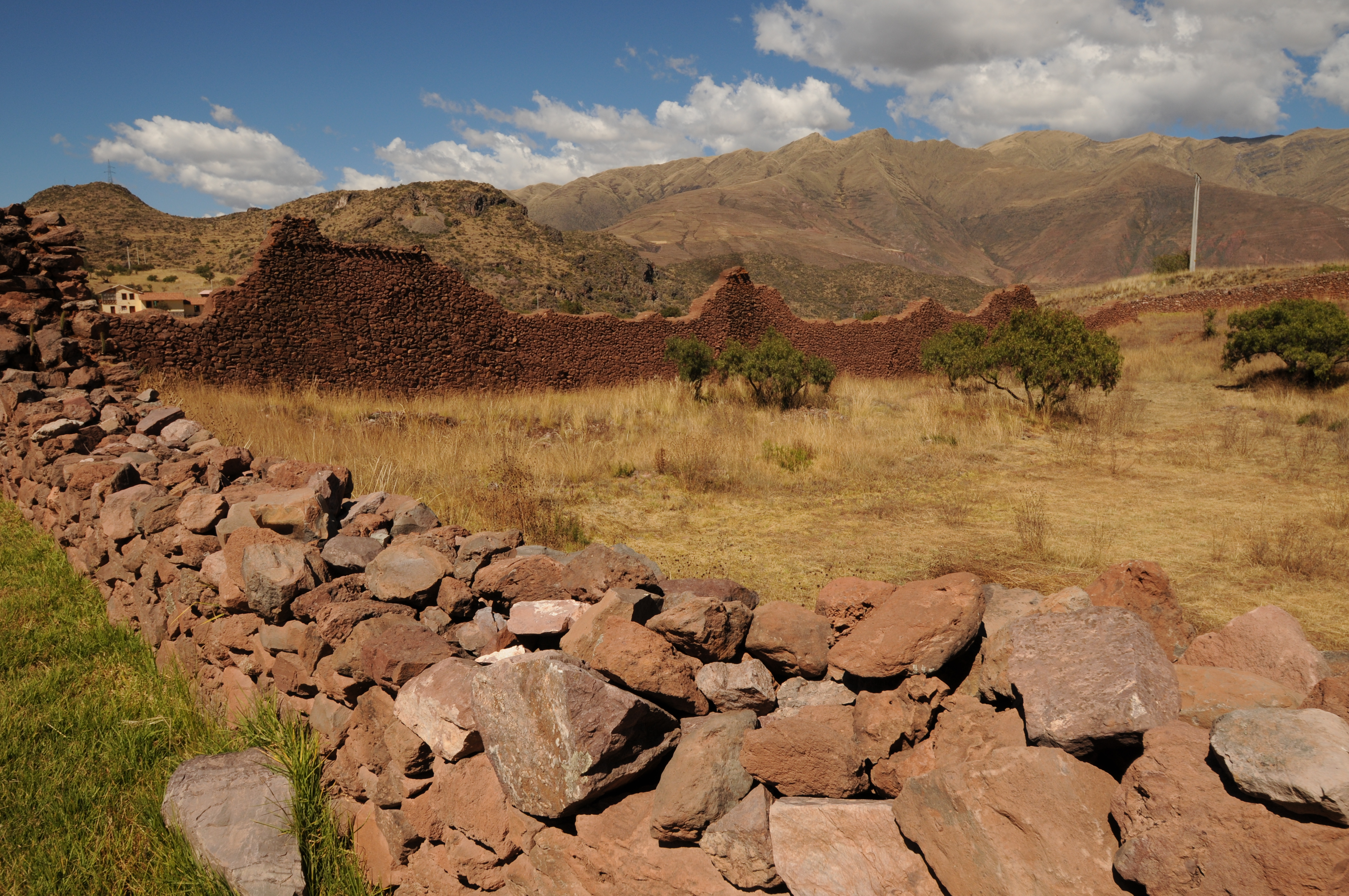

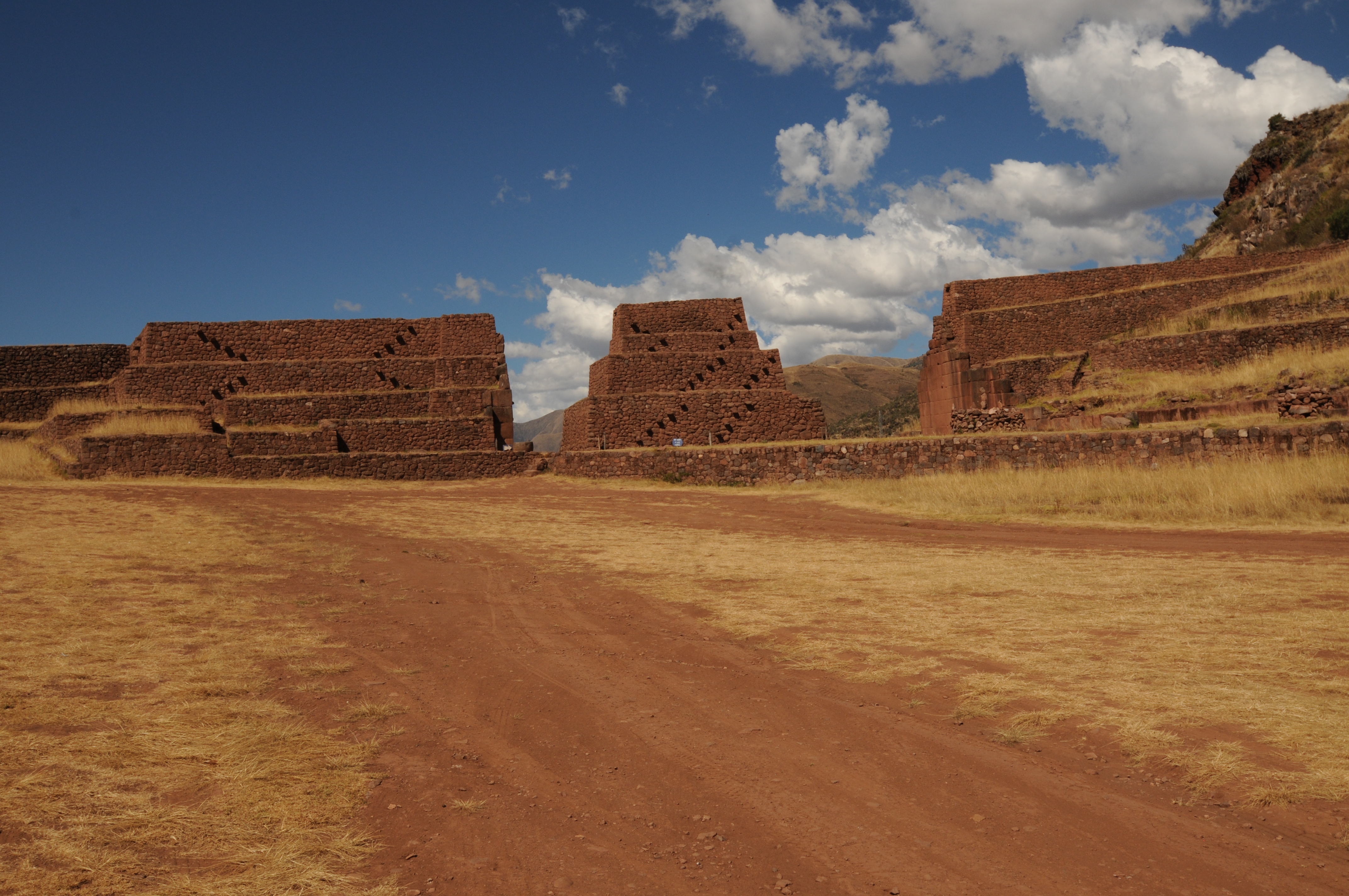

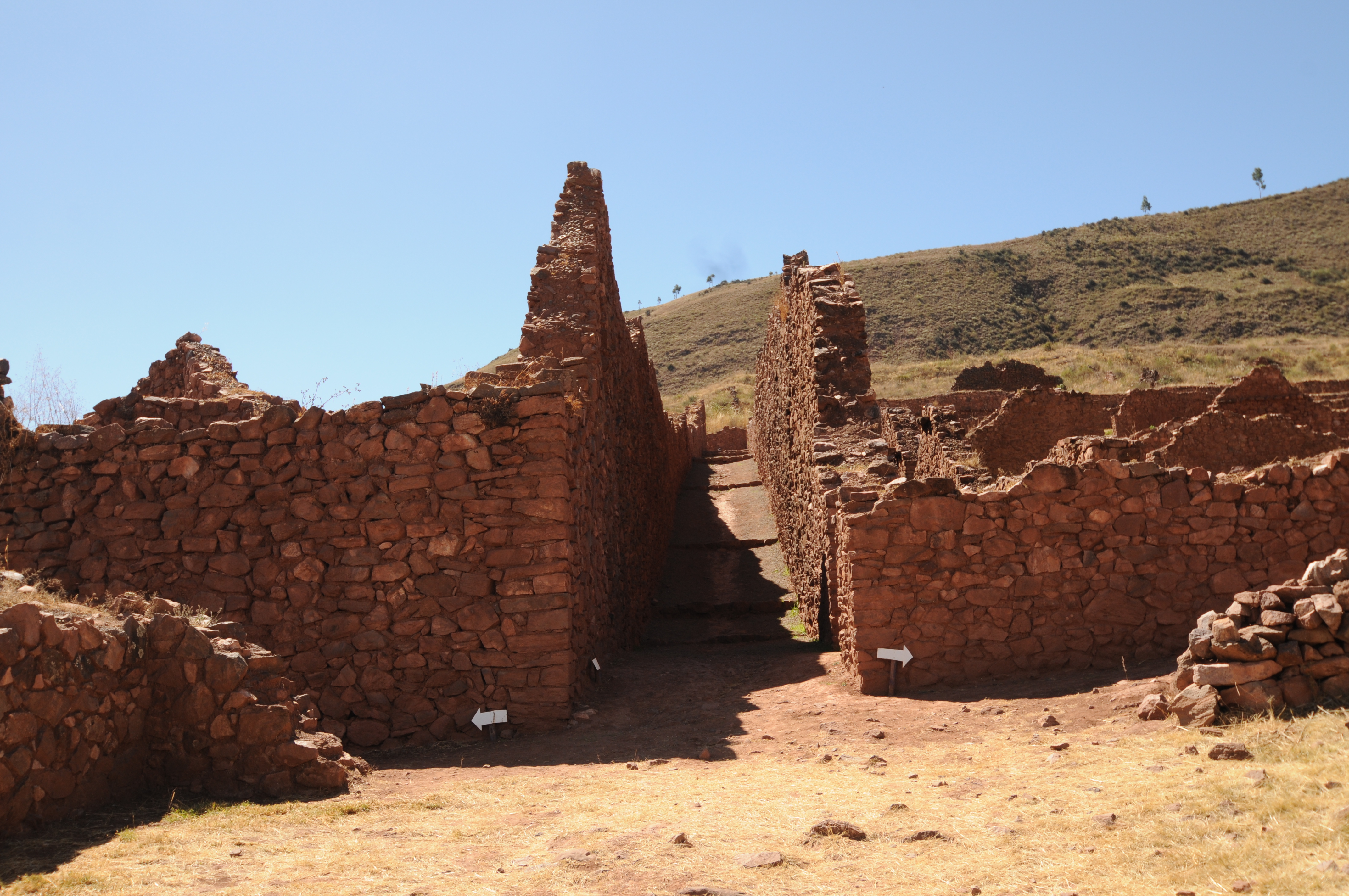

Pre-Inca

DSC_0984

DSC_0969

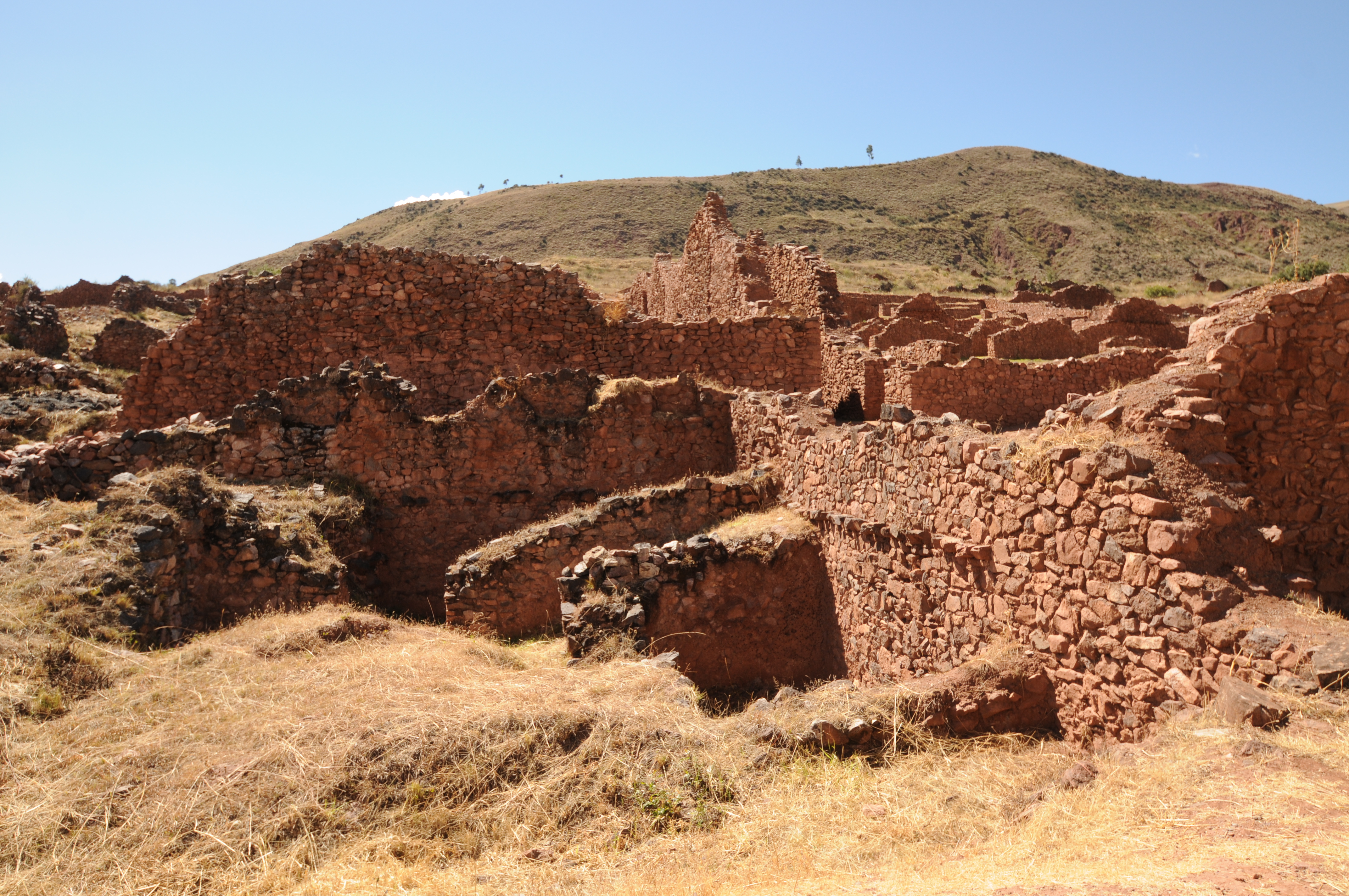

DSC_0860

DSC_0959

DSC_0965
